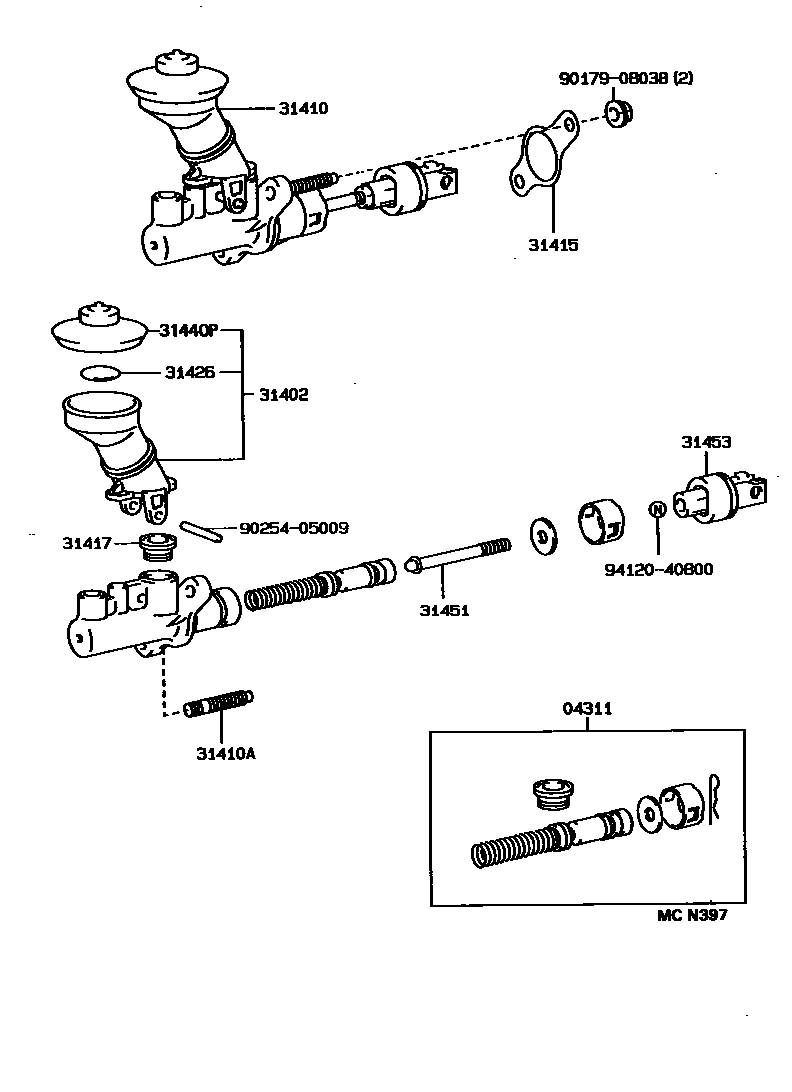

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12070iAE10#..NAP..5F199209-199402

sub04311-12100

main04311-60150iAE10#..NAP..5F199402

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12040iAE101..NAP..5F199209

sub31402-12050

main31402-12050iAE102..NAP..5F199209

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12370iAE101..NAP..5F199209

sub31410-12371

main31410-12380iAE102..NAP..5F199209

sub31410-12381

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE10#..NAP..5F199209

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iAE10#..NAP..5F199209

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAE10#..NAP..5F199209

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAE10#..NAP..5F199209

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE10#..NAP..5F199209

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iAE101..NAP..5F199310

main31451-35070iAE101..NAP..5F199209-199310

main31451-35080iAE102..NAP..5F199209

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iAE102..NAP..5F199209

main31453-10020iAE101..NAP..5F199209-199310

main31453-10040iAE101..NAP..5F199310

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
