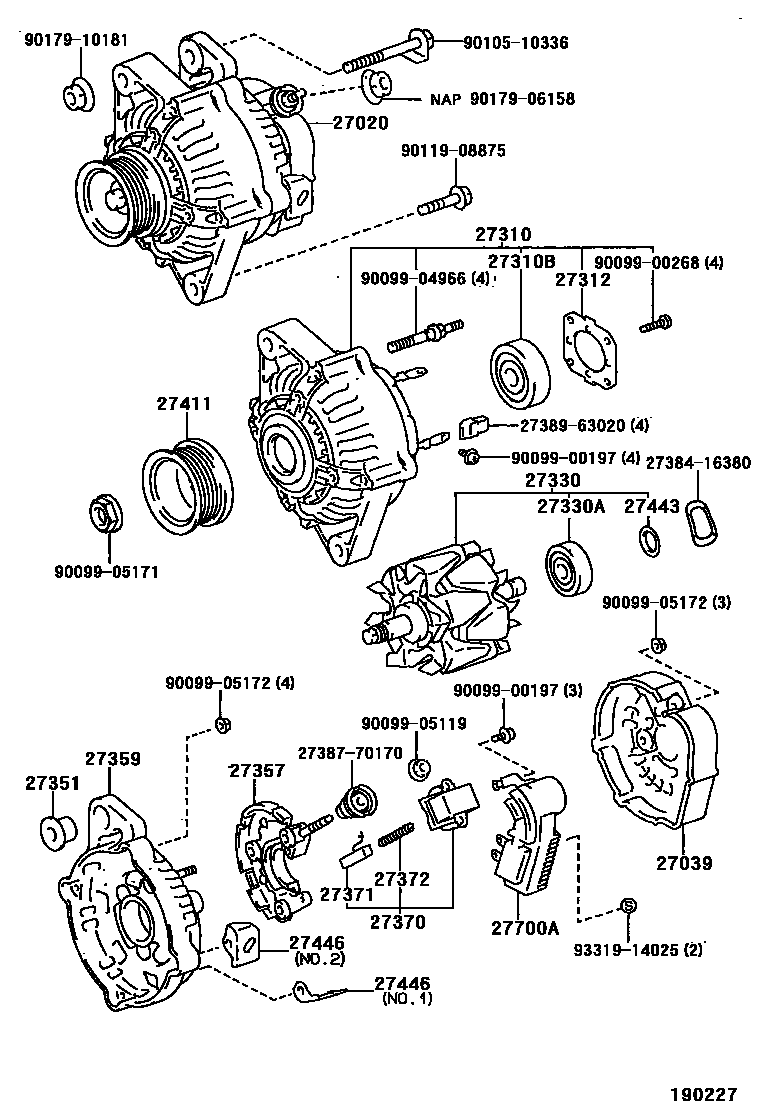

ALTERNATOR

0001 112V 70A,NIPPONDENSO 0002 112V 70A 0003 112V 70A,DELCO 0004 112V 70A

27020ALTERNATOR ASSY

main27060-02040i4AFE,7AFE..AE10#..NAP..USA199209

12V 70A,NIPPONDENSO TENESSEE

main27060-02040i4AFE,7AFE..AE10#..NAP..CND199209

12V 70A

main27060-02050i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209-199506

12V 70A,DELCO

main27060-02070i4AFE..AE101..NAP..D..USA199209-199506

12V 70A,TAIWAN SPEC,DELCO

main27060-02070i4AFE..AE101..NAP..D..USA199209-199506

12V 70A,DELCO

main27060-15100i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

12V 70A,NIPPONDENSO

main27060-15110i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

12V 70A,NIPPONDENSO

main27060-15110i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

12V 70A,TAIWAN SPEC,NIPPONDENSO

27039COVER, ALTERNATOR REAR END

main27039-03050i4AFE,7AFE..AE10#..NAP..CND199209

main27039-55080i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

sub27039-70470

main27039-73020i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-02040i4AFE,7AFE..AE10#..NAP..CND199209

main27310-15170i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

main27310-15180i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

sub27310-16430

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10002i4AFE,7AFE..AE10#..NAP..CND199209

sub90099-10192

main90099-10178i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

main90099-10192i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

27312PLATE, RETAINER

main27312-0A020i4AFE,7AFE..AE10#..NAP..CND199209

main27312-42010i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

main27312-70200i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

27330ROTOR ASSY, ALTERNATOR

main27330-03050i4AFE,7AFE..AE10#..NAP..CND199209

sub27330-0D010

main27330-72101i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

main27330-76030i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90068-10001i4AFE,7AFE..AE10#..NAP..CND199209

main90099-10140i4AFE,7AFE..AE10#..NAP..USA199209

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-70010i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-0A020i4AFE,7AFE..AE10#..NAP..CND199209

main27357-55080i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

main27357-63020i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

27359FRAME, ALTERNATOR RECTIFIER END

main27359-02040i4AFE,7AFE..AE10#..NAP..CND199209

main27359-15170i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209-199601

sub27359-15171

sub27384-16380

main27359-15171i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199601

main27359-15180i4AFE..AE101..NAP..D..USA199209

TAIWAN SPEC

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199309

main27370-70300i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209-199309

sub27370-35060

main27370-75060i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

27371BRUSH, ALTERNATOR

main27371-70300i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-03050i4AFE,7AFE..AE10#..NAP..CND199209

main27411-16180i4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..5F..N..USA199209

main27411-42030i7AFE..AE102..NAP..5F..E;4AFE..AE101..NAP..N..USA;7AFE..AE102..NAP..4FC..USA199209

TAIWAN SPEC

27443COVER, ALTERNATOR BEARING

main27443-0A020i4AFE,7AFE..AE10#..NAP..CND199209

main27443-63020i4AFE,7AFE..AE10#..NAP..USA199209

27446CLIP, ALTERNATOR CORD

main27446-15170i4AFE,7AFE..AE10#..NAP..USA199209

NO.1

main27446-15220i4AFE,7AFE..AE10#..NAP..USA199209

NO.2

main27466-15170i4AFE,7AFE..AE10#..NAP..CND199209

NO.1

27700AREGULATOR ASSY, GENERATOR

main27700-74030i4AFE,7AFE..AE10#..NAP..USA199209

*87

2738416380WASHER

main27384-16380

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9331914025

main93319-14025

31 parts on this diagram · 4 diagrams in section
