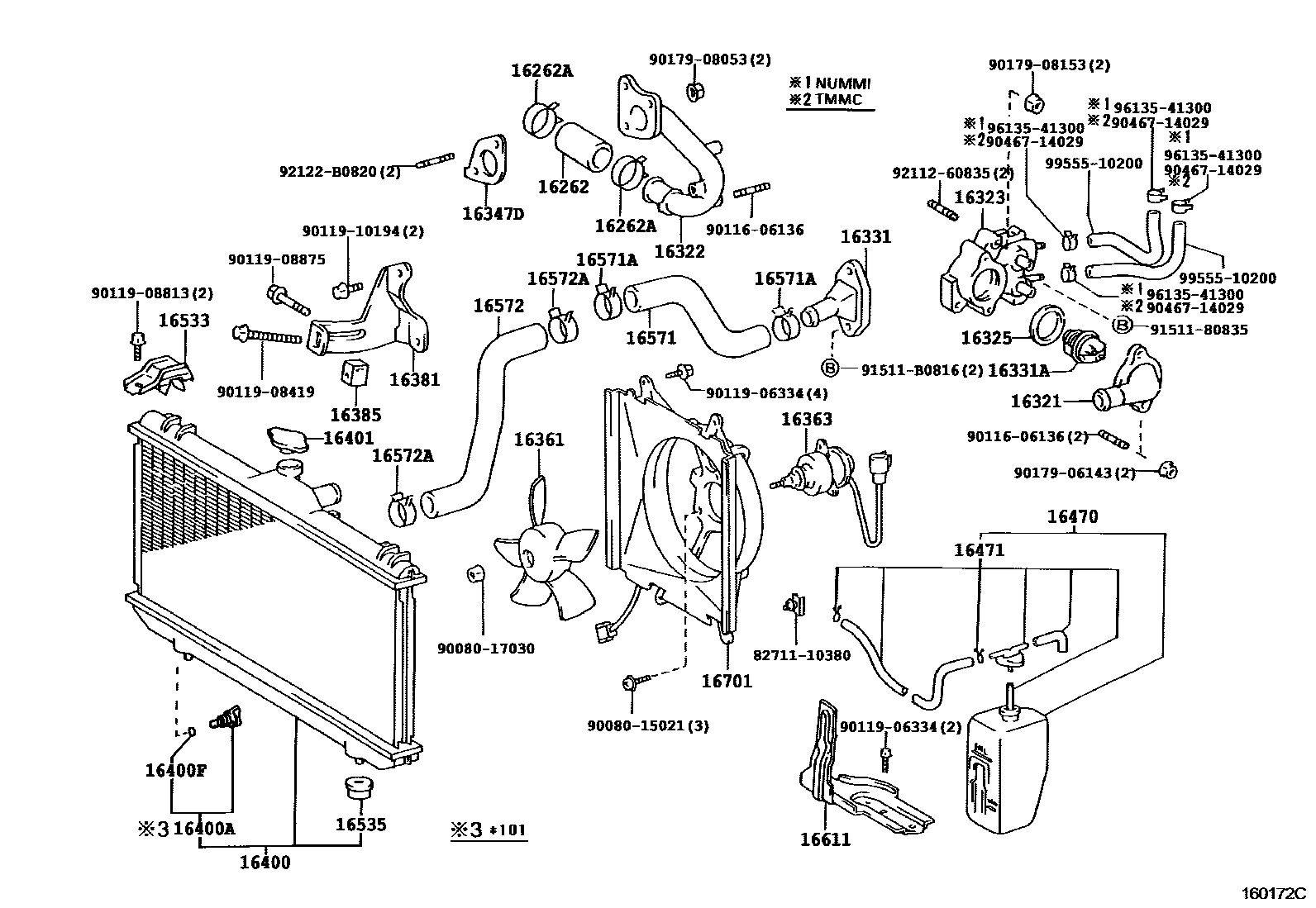

RADIATOR & WATER OUTLET
16262HOSE, WATER INLET
(L)
16262ACLIP(FOR WATER INLET HOSE)
sub90467-37005
16321INLET, WATER
16323HOUSING, WATER INLET
sub16323-16410
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16347DGASKET, WATER BY-PASS
16361FAN
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
(L)
(J)
16385SLIDER, FAN BELT ADJUSTING
sub16385-15030
16400ACOCK SUB-ASSY, RADIATOR DRAIN
*101
16400FPACKING(FOR RADIATOR DRAIN COCK)
*101
16401CAP SUB-ASSY, RADIATOR
16471CAP SUB-ASSY, RESERVE TANK
*101
*100
16533SUPPORT, RADIATOR, UPPER
W(*66),RH
W(*66),LH
16535SUPPORT, RADIATOR, LOWER
MIDDLE EAST SPEC,*100
*100
16571HOSE, RADIATOR, INLET
*101
*100
*101
*100
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
*101
*100
*101
*100
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16611BRACKET, RADIATOR RESERVE TANK
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9008015021
main90080-15021
9008017030
main90080-17030
9011606136
main90116-06136
9011906334
main90119-06334
9011908419
main90119-08419
9011908813
main90119-08813
9011908875
main90119-08875
9011910194
main90119-10194
9017906143
main90179-06143
9017908053
main90179-08053
9017908153
main90179-08153
9046714029
main90467-14029
9151180835
main91511-80835
91511B0816
main91511-B0816
9211260835
main92112-60835
92122B0820
main92122-B0820
9613541300
main96135-41300
9955510200
main99555-10200
46 parts on this diagram · 2 diagrams in section
