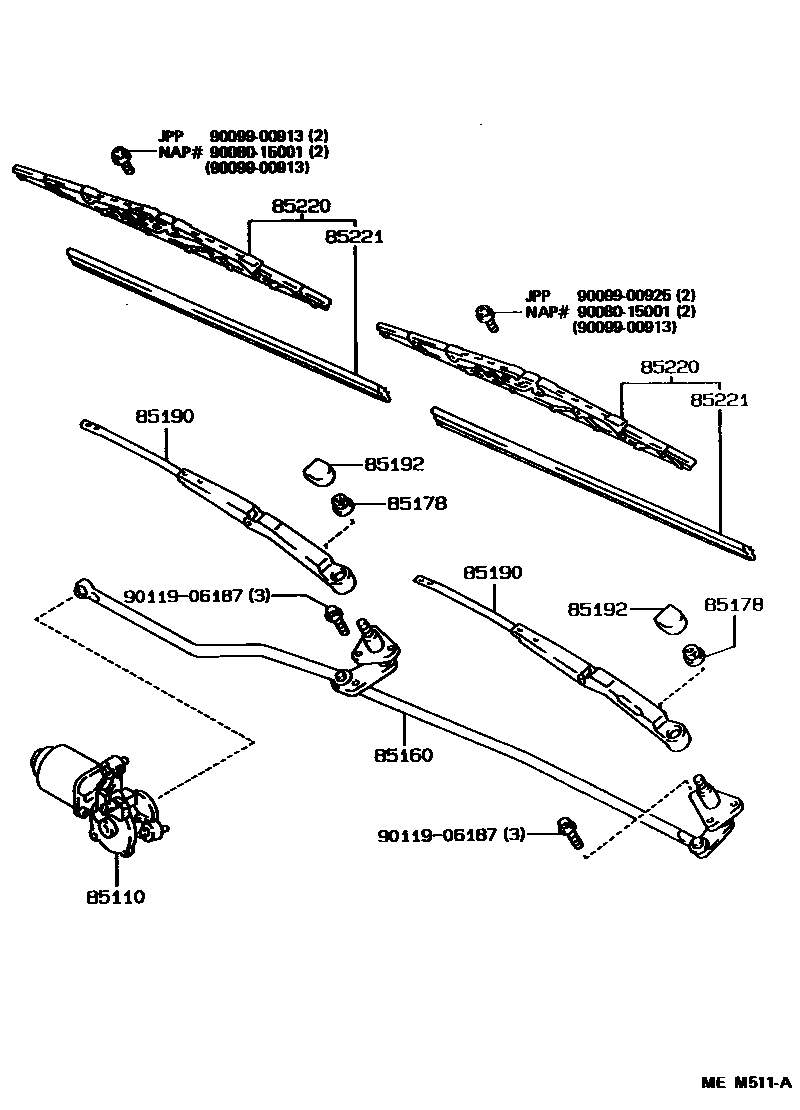

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-01030iAE92198809-198909

sub85110-01031

main85110-01031iAE92198909-199111

sub85110-01032

main85110-01032iAE92199111-199209

85160LINK ASSY, WINDSHIELD WIPER

main85160-02010iAE92198809-199201

sub85160-02011

main85160-02011iAE92199201-199209

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iAE92198809-199209

85190ARM ASSY, WINDSHIELD WIPER

main85190-01040iAE92198809-198906

LH

sub85190-01041

main85190-01041iAE92198906-199209

LH

main85210-01020iAE92198809-198906

RH

sub85210-01021

main85210-01021iAE92198906-199209

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iAE92198809-199009

main85192-12800iAE92199009-199209

*86 & *87

main85292-01010iAE92199009-199209

*86

85220BLADE ASSY, WINDSHIELD WIPER

main85220-01040iAE92198809-199209

LH

main85220-01050iAE92198809-199209

RH

85221BLADE, WINDSHIELD WIPER

main85221-01040iAE92198809-199209

LH

main85221-01050iAE92198809-199209

RH

9008015001

main90080-15001

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

11 parts on this diagram · 1 diagram in section
