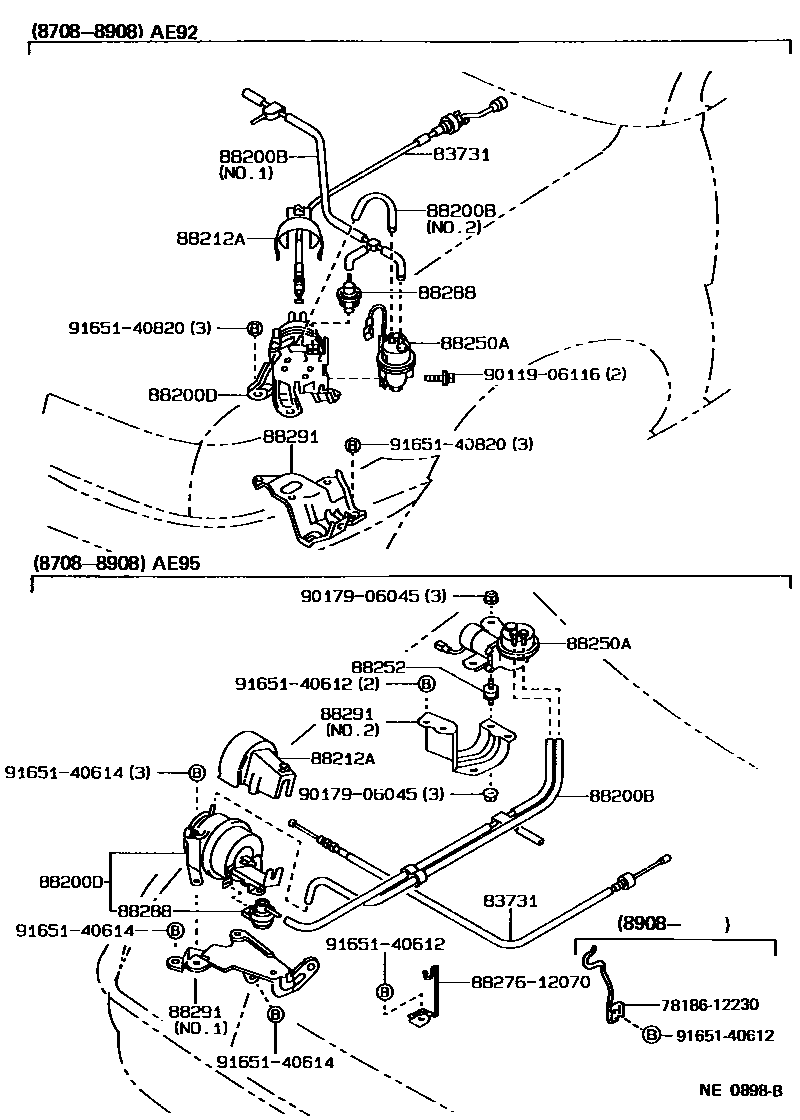

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1

83731CABLE, CRUISE CONTROL

main83731-12020iAE92198809-198909

main83731-12030iAE92..DX,LE198909-199209

88200BHOSE, CRUISE CONTROL VACUUM

main88283-12090iAE92198809-198909

NO.1

main88283-12100iAE92..DX,LE198909-199209

main90999-92002iAE92198809-198909

L=300,NO.2

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-12071iAE92..DX,LE198909-199209

main88200-12081iAE92198809-198909

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-12070iAE92..DX,LE198809-199209

88250APUMP ASSY, CRUISE CONTROL

main88251-12090iAE92..DX,LE198909-199209

main88251-12100iAE92198809-198909

88252CUSHION, VACUUM PUMP

main88252-14110×3iAE92..DX,LE198909-199209

sub88252-26010

88288SWITCH, VACUUM SPEED CONTROL

main88288-12010iAE92..DX,LE198809-199209

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-12080iAE92..DX,LE198909-199209

NO.1

main88291-12090iAE92198809-198909

main88291-12100iAE92..DX,LE198909-199209

NO.2

7818612230SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12230

8827612070

main88276-12070

9011906116

main90119-06116

9017906045

main90179-06045

9165140612

main91651-40612

9165140614

main91651-40614

9165140820

main91651-40820

15 parts on this diagram · 3 diagrams in section
