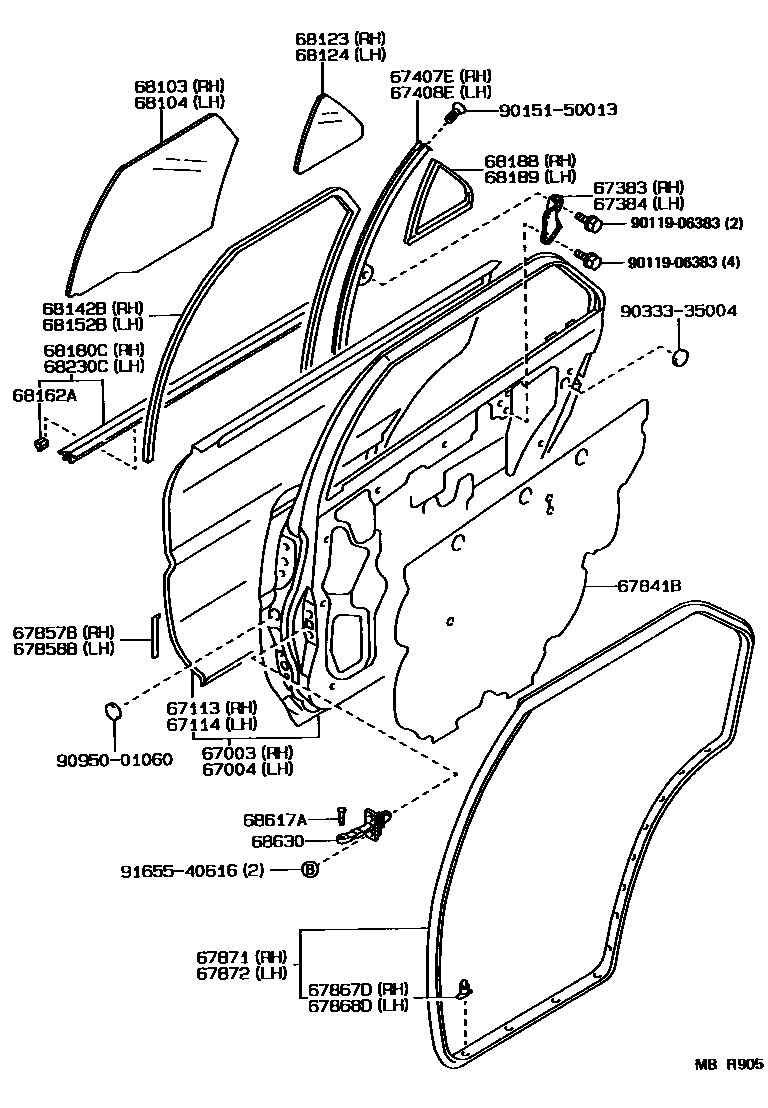

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
*86
*86 & *87
67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH
67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841BCOVER, REAR DOOR SERVICE HOLE
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
*84
*85
*86 & *87
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
*84
*85
*87
67871WEATHERSTRIP, REAR DOOR, RH
*85
*84
*86 & *87
67872WEATHERSTRIP, REAR DOOR, LH
*85
*84
*86 & *87
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
68142BRUN, REAR DOOR WINDOW, RH
68152BRUN, REAR DOOR WINDOW, LH
68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
RH
LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630CHECK ASSY, REAR DOOR
*86
*86 & *87
9011906383
main90119-06383
9015150013
main90151-50013
9033335004
main90333-35004
9095001060
main90950-01060
9165540616
main91655-40616
33 parts on this diagram · 2 diagrams in section
