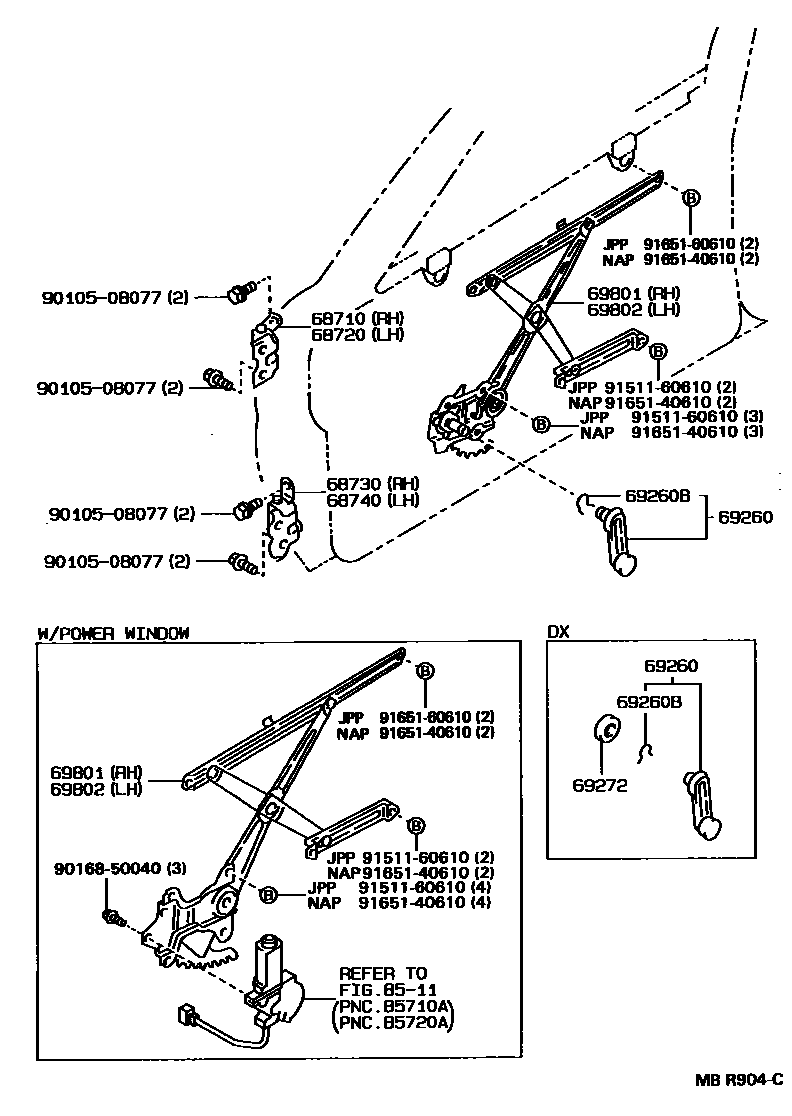

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-01020iAE92199008-199209

main68710-12110iAE92198809-199209

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-01020iAE92199008-199209

main68720-12110iAE92198809-199209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-01020iAE92199008-199209

main68730-12070iAE92198809-199209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-01020iAE92199008-199209

main68740-12070iAE92198809-199209

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-01020-B0×2iAE92..DX,STD199009-199209

SHADOW GRAY,TRIM1#

main69260-01020-B1×2iAE92..DX198809-198908

DARK SMOKE GRAY,TRIM1#

main69260-01020-D0×2iAE92..DX,STD199202-199209

MAROON,MAROON,TRIM3#

main69260-01020-E0×2iAE92..DX198809-198908

DARK BEIGE,DARK BEIGE,TRIM4#

main69260-01020-E2×2iAE92..DX,STD199009-199209

BROWN,TRIM4#

main69260-01020-J0×2iAE92..STD198908-199009

DARK BLUE,TRIM8#

main69260-02010-B1×2iAE92..LE198809-198908

DARK SMOKE GRAY,TRIM1#

main69260-02010-D0×2iAE92..LE..EFI198908-199209

MAROON,TRIM3#

main69260-02010-E0×2iAE92..LE198809-198908

DARK BEIGE,TRIM4#

main69260-02010-E1×2iAE92..LE198909-199209

BROWN,TRIM4#

main69260-02010-J0×2iAE92..LE..EFI198908-199209

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001×2iAE92..DX,STD198809-199209

main90081-52007×2iAE92..LE198809-199209

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-01020×2iAE92..4FC..USA199202-199209

DX PACKAGE

main69268-16010×2iAE92..DX,STD198809-199209

sub69268-20020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-01020iAE92..LE;AE92..DX..USA199003-199209

W(POWER WINDOW)

main69801-12100iAE92..LE;AE92..DX..USA199001-199003

W(POWER WINDOW)

main69810-01040iAE92199003-199209

main69810-02040iAE92199003-199209

main69810-12290iAE92198809-199209

main69810-12370iAE92198811-199209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-01020iAE92..LE;AE92..DX..USA199003-199209

W(POWER WINDOW)

main69802-12100iAE92..LE198809-199001

W(POWER WINDOW)

main69820-01040iAE92199003-199209

main69820-02040iAE92199003-199209

main69820-12290iAE92..CBR198811-199209

*85 & *87

main69820-12370iAE92..EFI198811-199209

*84 & *87

8511

9010508077

main90105-08077

9016850040

main90168-50040

9151160610

main91511-60610

9165140610

main91651-40610

9165160610

main91651-60610

15 parts on this diagram · 1 diagram in section
