SIDE MEMBER

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12060iAE92198909-199209

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iAE92198909-199209

59198SEAL, NOISE SHUTTER

main59198-01010iAE92198811-199209

main59198-12010iAE92198809-198811

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-02020iAE92..CBR;AE92..CND..EFI198809-199209

main61021-02040iAE92..USA198909-199209

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-02020iAE92..CBR;AE92..CND..EFI198809-199209

main61022-02040iAE92..USA198909-199209

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12040iAE92198809-199209

61211RAIL, ROOF SIDE, OUTER RH

main61211-12220iAE92198809-199209

61212RAIL, ROOF SIDE, OUTER LH

main61212-12220iAE92198809-199209

61231RAIL, ROOF SIDE, INNER RH

main61231-12430iAE92198809-199209

61232RAIL, ROOF SIDE, INNER LH

main61232-12330iAE92198809-199209

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12110iAE92198809-199209

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12110iAE92198809-199209

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12030iAE92..DX,LE198809-199209

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12030iAE92..DX,LE198809-199209

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12030iAE92..DX,LE198809-199209

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-02010iAE92..CBR;AE92..CND..EFI198809-199209

main61301-02020iAE92..LE..CND198809-199209

W(POWER WINDOW)

main61301-02030iAE92..USA198909-199209

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-02010iAE92..CBR;AE92..CND..EFI198809-199209

main61302-02020iAE92..LE..CBR;AE92..LE..CND..EFI198809-199209

W(POWER WINDOW)

main61302-02030iAE92..USA198909-199209

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-01010iAE92..CBR;AE92..CND..EFI198809-199209

main61307-01020iAE92..USA198909-199209

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-01010iAE92..CBR;AE92..CND..EFI198809-199209

main61308-01020iAE92..USA198909-199209

61388APLATE, CENTER BODY PILLAR END, RH

main61388-01010iAE92198811-199209

main61388-12010iAE92198809-198811

61411PANEL, ROCKER, OUTER RH

main61411-01020iAE92198809-199209

61412PANEL, ROCKER, OUTER LH

main61412-01020iAE92198809-199209

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-12040iAE92..CBR;AE92..CND..EFI198809-199209

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-12060iAE92198809-199209

61611PANEL, QUARTER, RH

main61601-02902iAE92198809-199209

61612PANEL, QUARTER, LH

main61602-02902iAE92..DX,LE198809-199209

main61602-02903iAE92..STD198909-199209

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12280iAE92198809-198910

sub61621-12281

main61621-12281iAE92198910-199209

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12280iAE92198809-198910

sub61622-12281

main61622-12281iAE92198910-199209

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12020iAE92198809-199209

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12020iAE92198809-199209

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE92198809-199209

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE92198809-199209

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02900iAE92..DX,STD198809-199209

main61607-02901iAE92..LE198809-199209

main61607-02901iAE92..DX199009-199209

W(SPLIT REAR SEAT)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02900iAE92..DX,STD198809-199209

main61608-02901iAE92..LE198809-199209

main61608-02901iAE92..DX199009-199209

W(SPLIT REAR SEAT)

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE92198809-199209

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE92198809-199209

61667DSEAL, QUARTER PANEL

main61667-02010iAE92198811-199209

main61667-12050iAE92198809-198811

61731BPANEL, ROOF SIDE, INNER RH

main61731-12420iAE92198809-199209

61732BPANEL, ROOF SIDE, INNER LH

main61732-12380iAE92198809-199209

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12902iAE92198809-199209

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12902iAE92198809-199209

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12100iAE92198809-199209

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12100iAE92198809-199209

61824PLATE, NOISE CONTROL, NO.1

main61824-01020iAE92198811-199209

main61824-12020iAE92198809-198811

sub61824-12040

61825APLATE, NOISE CONTROL, NO.2

main61825-01010iAE92198811-199209

main61825-12010iAE92198809-198811

61826APLATE, NOISE CONTROL, NO.3

main61826-02010iAE92198811-199209

main61826-12010iAE92198809-198811

61827APLATE, NOISE CONTROL, NO.4

main61827-02010iAE92198811-199209

main61827-12010iAE92198809-198811

61838BPLATE, NOISE CONTROL, NO.5

main61838-01010iAE92198811-199209

main61838-12010iAE92198809-198811

62151BPAD, COWL SIDE SILENCER

main62151-01020iAE92198811-199209

main62151-12100iAE92198809-198811

62553DPAD, PILLAR, NO.3

main62553-01010iAE92198811-199209

main62553-12120iAE92198809-198811

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-12120iAE92198809-199209

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-12130iAE92198809-199209

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-01010iAE92198811-199209

main67533-12010iAE92198809-198811

9010508120

main90105-08120

9017908102

main90179-08102

9095001038

main90950-01038

9095001056

main90950-01056

9095001126

main90950-01126

9095001130

main90950-01130

9095001327

main90950-01327

9095001637

main90950-01637

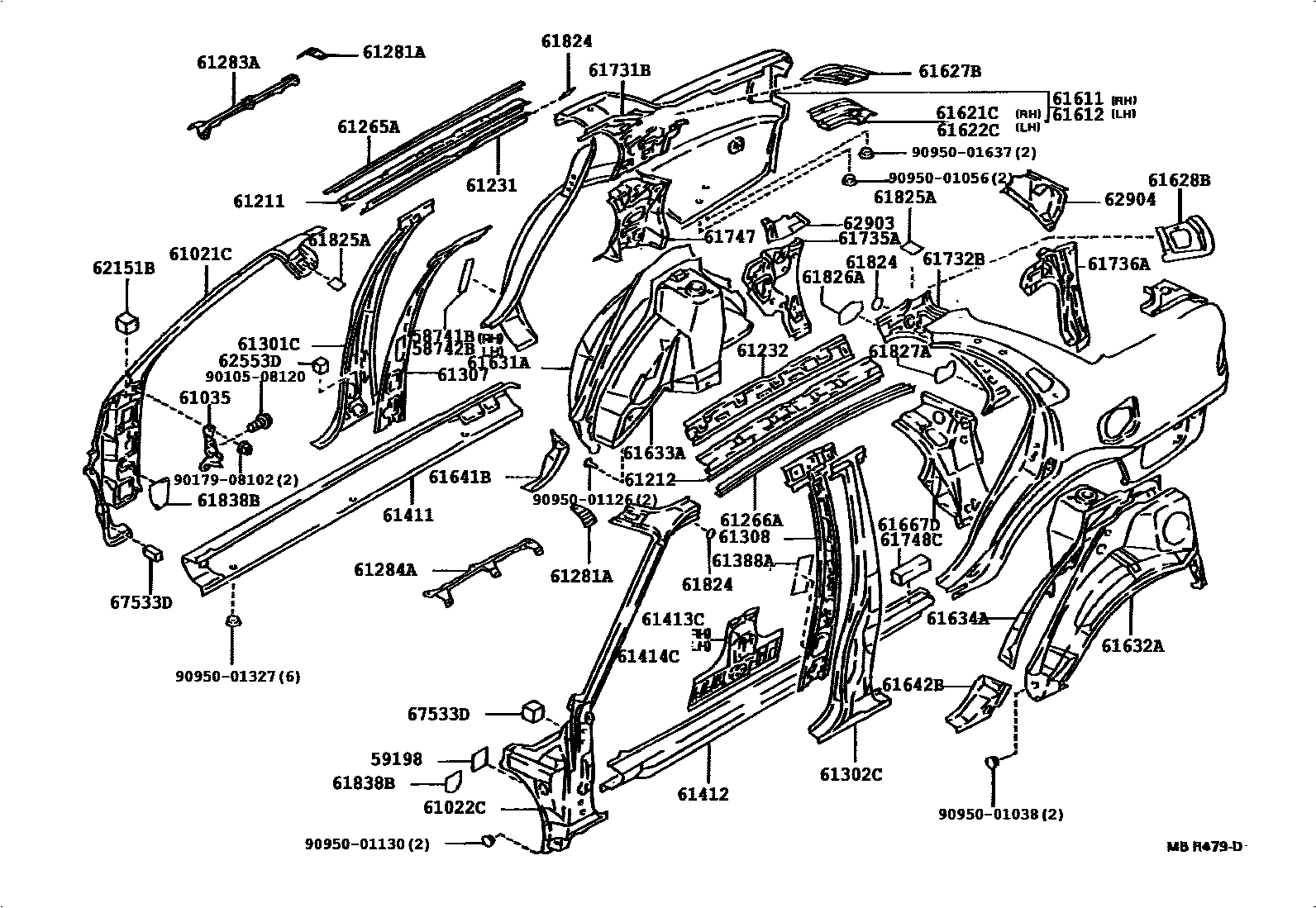

61 parts on this diagram · 1 diagram in section
