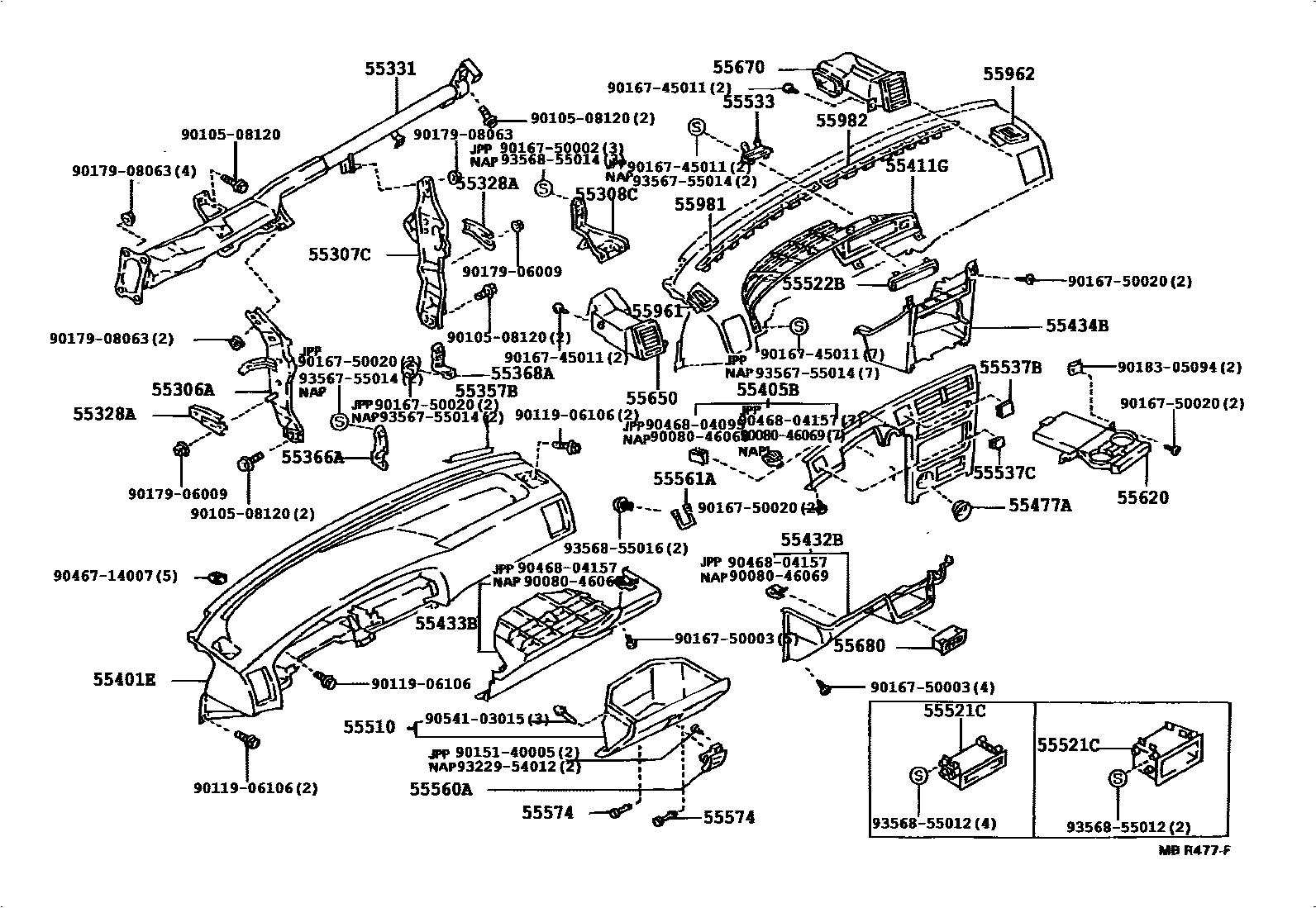

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328ASTAY, INSTRUMENT PANEL, NO.3
55331REINFORCEMENT, INSTRUMENT PANEL
*84
*85
*86 & *87
55357BCUSHION, INSTRUMENT PANEL, NO.3
*86
*86 & *87
55366ABRACKET, RADIO MOUNTING, NO.1
*86
*86 & *87
55368ABRACKET, RADIO MOUNTING, NO.2
*86
*86 & *87
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK,TRIM8#
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
DARK SMOKE GRAY,TRIM1#,*86
SHADOW GRAY,TRIM1#,*86
MAROON,TRIM3#,*86
BROWN,TRIM4#,*86
DARK BLUE,TRIM8#,*86
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM8#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#,*86
SHADOW GRAY,TRIM1#,*86
MAROON,TRIM3#,*86
BROWN,TRIM4#,*86
DARK BLUE,TRIM8#,*86
55477ABEZEL, CIGARETTE LIGHTER HOLE
55510DOOR ASSY, GLOVE COMPARTMENT
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#,*86
SHADOW GRAY,TRIM1#,*86
MAROON,TRIM3#,*86
BROWN,TRIM4#,*86
DARK BLUE,TRIM8#,*86
55521CCOVER, STEREO OPENING
55522BCOVER, RADIO TUNER OPENING
55533COVER, AUTO CLOCK HOLE
55537BCOVER, REAR DEFOGGER SWITCH HOLE
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55537CCOVER, REAR DEFOGGER SWITCH HOLE
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
DARK SMOKE GRAY,DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#
SHADOW GRAY,TRIM1#
MAROON,TRIM3#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
*86
*86 & *87
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
55620HOLDER ASSY, INSTRUMENT PANEL CUP
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55961NOZZLE, SIDE DEFROSTER, NO.1
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55962NOZZLE, SIDE DEFROSTER, NO.2
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
55982GARNISH, DEFROSTER NOZZLE, NO.2
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
9008046068
main90080-46068
9008046069
main90080-46069
9010508120
9011906106
9015140005
9016745011
9016750002
9016750003
9016750020
9017906009
9017908063
9018305094
9046714007
9046804095
9046804157
9054103015
9322954012
9356755014
9356855012
9356855014
9356855016
53 parts on this diagram · 2 diagrams in section
