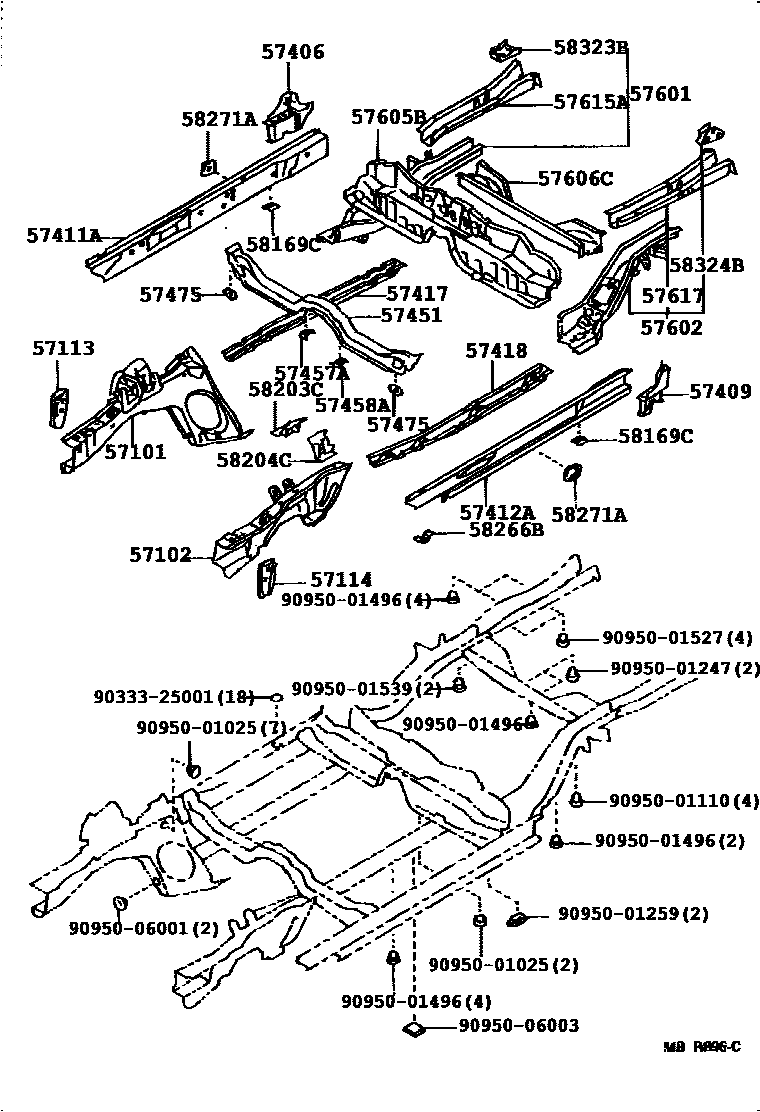

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-01020iAE92198809-199209

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-01020iAE92198809-199209

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12120iAE92198809-199209

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12120iAE92198809-199209

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-12010iAE92198809-199209

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-12010iAE92198809-199209

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-01030iAE92..USA198909-199209

main57411-12160iAE92..CBR;AE92..CND..EFI198809-199209

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-01030iAE92..USA198909-199209

main57412-12160iAE92..CBR;AE92..CND..EFI198809-199209

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12080iAE92198809-199209

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-12040iAE92198809-199209

57451MEMBER, FRONT FLOOR CROSS

main57451-12110iAE92198809-198905

main57451-12111iAE92198905-199209

57457APLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH

main57457-12020iAE92198809-199209

57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH

main57458-12020iAE92198809-199209

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-32010×2iAE92198809-199209

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-01030iAE92198809-199209

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-01030iAE92198809-199209

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-01020iAE92198809-199209

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-01020iAE92198809-198912

main57606-01030iAE92198912-199209

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12041iAE92198809-199209

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-12041iAE92198809-199209

58169CPATCH, FRONT FLOOR REAR

main58169-12010iAE92198809-199209

58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-12030iAE92198809-199209

58204CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH

main58204-12010iAE92198809-199209

58266BBRACKET, FUEL TUBE CLAMP

main58266-22040×3iAE92198809-199209

58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-12050×2iAE92..CBR;AE92..CND..EFI198809-199209

58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH

main58323-12041iAE92198809-198812

main58323-12090iAE92198812-199209

58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH

main58324-12031iAE92198809-199209

9033325001

main90333-25001

9095001025

main90950-01025

9095001110

main90950-01110

9095001247

main90950-01247

9095001259

main90950-01259

9095001496

main90950-01496

9095001527

main90950-01527

9095001539

main90950-01539

9095006001

main90950-06001

9095006003

main90950-06003

37 parts on this diagram · 1 diagram in section
