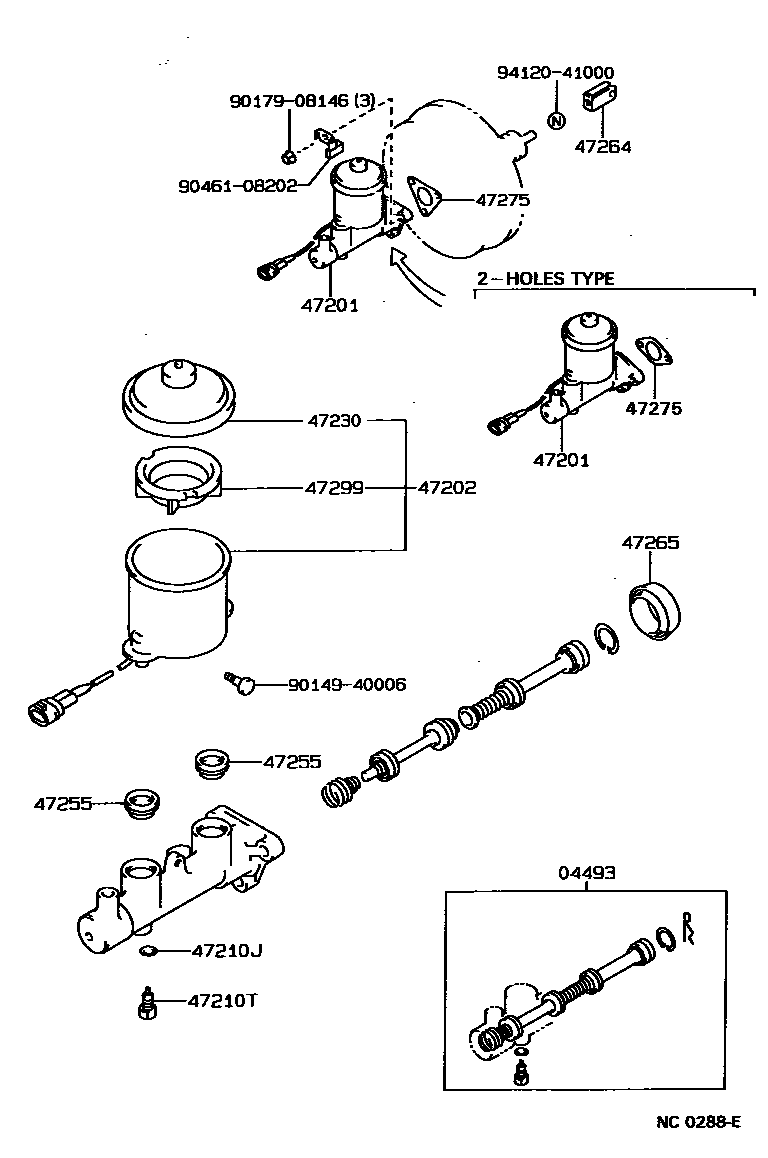

BRAKE MASTER CYLINDER
04493CYLINDER KIT, BRAKE MASTER
sub04493-12180
47201CYLINDER SUB-ASSY, BRAKE MASTER
*86,MASTER CYLINDER GASKET:3 HOLES
MASTER CYLINDER GASKET:2 HOLES
MASTER CYLINDER GASKET:3 HOLES
*86 & *87,MASTER CYLINDER GASKET:3 HOLES
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
*86
*86 & *87
47210JGASKET(FOR MASTER CYLINDER)
*86 & *87
47210TBOLT(FOR BRAKE MASTER CYLINDER)
*86 & *87
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
*86
*86 & *87
47255GROMMET, MASTER CYLINDER RESERVOIR
*86
*86 & *87
47264CLEVIS, MASTER CYLINDER PUSH ROD
*86
*86 & *87
47265BOOT, MASTER CYLINDER
*86
*86 & *87
47275GASKET, BRAKE MASTER CYLINDER
*86,3 HOLES
2 HOLES
*86 & *87,3 HOLES
3 HOLES
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
*86
*86 & *87
9014940006
main90149-40006
9017908146
main90179-08146
9046108202
main90461-08202
9412041000
main94120-41000
15 parts on this diagram · 1 diagram in section
