STEERING COLUMN & SHAFT

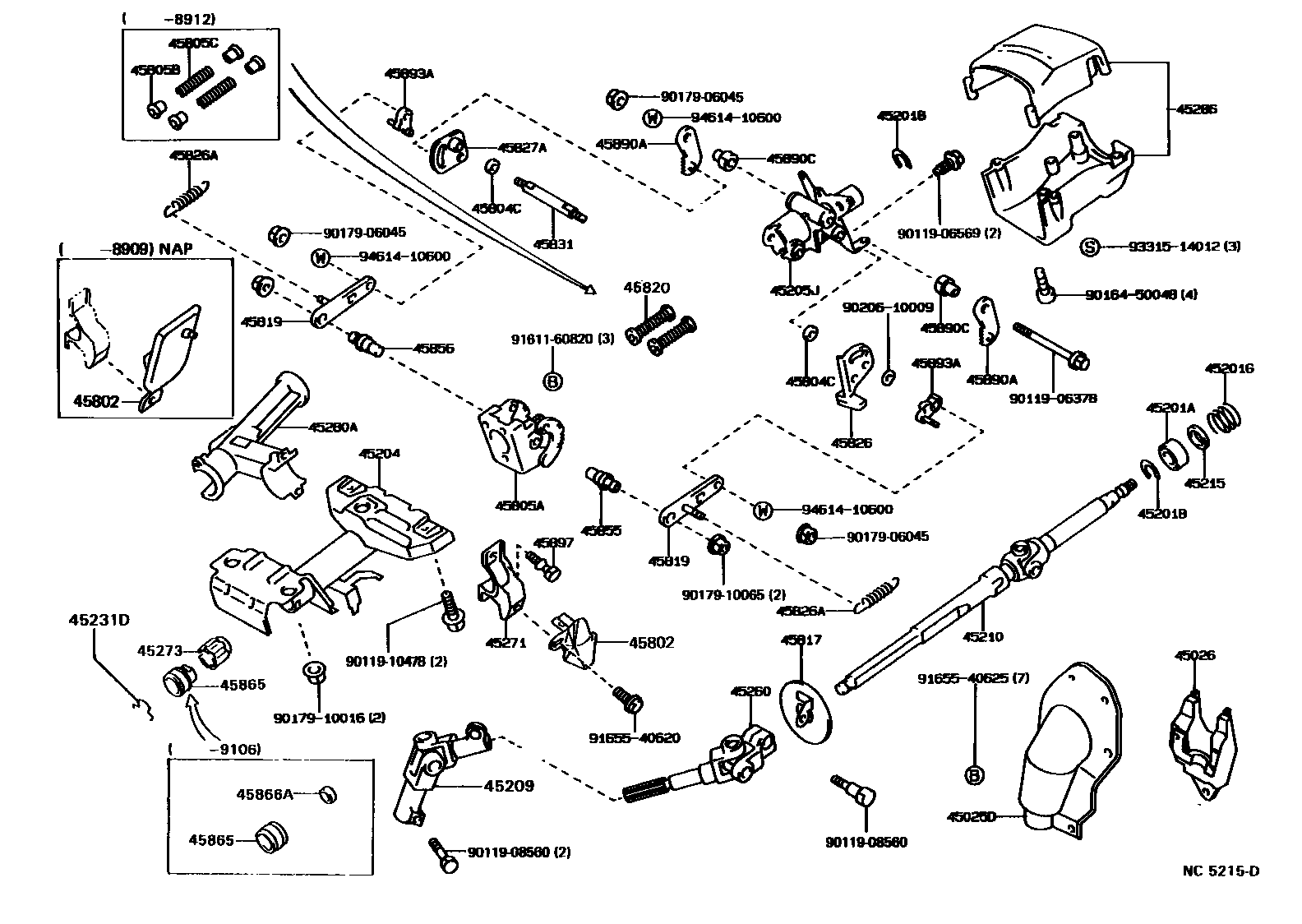

Parts diagram
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-12190i198809-199209
main45025-12200i198809-199209
W(POWER STEERING)
sub45025-12201
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
main45026-12030i198809-199209
main45026-12040i198809-199209
W(POWER STEERING)
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18005i198809-199209
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042i198809-199209
T=1.20
main90520-17196i198809-199209
T=1.35-1.45
main90520-17196i199203-199209
T=1.35-1.45,W(TILT STEERING)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
main90501-40017i198809-199209
45204TUBE ASSY, STEERING COLUMN, LOWER
main45204-12091i198809-199006
sub45204-12092
sub45273-22020
main45204-12092i199006-199209
sub45204-12093
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
main45205-12261i198809-199209
45209YOKE SUB-ASSY, STEERING SLIDING
main45209-12050i198809-199209
W(POWER STEERING)
main45209-32010i198809-199209
sub45209-10020
45210SHAFT ASSY, STEERING MAIN
main45210-12380i198809-199209
main45210-12390i198809-199209
W(POWER STEERING)
main45210-12390i199203-199209
main45210-12400i198909-199209
W(TILT STEERING & POWER STEERING)
sub45210-12560
main45210-12400i198809-199209
W(TILT STEERING)
sub45210-12560
main45210-12400i198811-199008
sub45210-12560
45215COLLAR, MAIN SHAFT BEARING THRUST
main45215-12010i198809-199209
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
main90521-01005i198809-199006
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-12220i198809-199209
main45260-12240i198809-199209
W(POWER STEERIHG)
45271CLAMP, STEERING COLUMN, UPPER
main45271-12050i199012-199209
W(TILT STEERING)
main45271-12050i198811-199209
main45271-12060i198811-199209
W(TILT STEERING)
main45271-12060i198908-199008
main45271-12070i199008-199012
W(TILT STEERING)
main45271-12070i198809-199008
main45271-12080i198809-199209
W(TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
main45273-16010i199008-199209
W(POWER STEERING)
main45273-16010i198809-199209
main45273-22020i199006-199209
W(TILT STEERING & POWER STEERING)
main45273-22020i199006-199209
W(TILT STEERING)
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-12110i199008-199209
W(TILT STEERING)
main45280-12110i198809-199008
main45280-12130i198809-199209
W(TILT STEERING)
main45280-12140i199008-199209
W(TILT STEERING)
main45280-12140i198909-199209
main45280-12150i198909-199209
W(TILT STEERING)
45286COVER, STEERING COLUMN
main45286-01901-B1i198809-198909
DARK SMOKE GREY,TRIM1#
main45286-01901-D0i198809-198909
MAROON,TRIM3#
main45286-01901-E0i198809-198909
DARK BEIGE,TRIM4#
main45286-01901-J0i198809-198909
DARK BLUE,TRIM8#
main45286-01902-06i199008-199209
BROWN,TRIM4#
main45286-01902-06i198909-199209
W(TILT STEERING),BROWN,TRIM4#
main45286-01902-B0i198909-199209
W(TILT STEERING),SHADOW GRAY,TRIM1#
main45286-01902-B0i199008-199209
SHADOW GRAY,TRIM1#
main45286-01902-B1i198809-198909
W(TILT STEERING),DARK SMOKE GRAY,TRIM1#
main45286-01902-D0i199008-199209
MAROON,TRIM3#
main45286-01902-D0i198809-199209
W(TILT STEERING),MAROON,TRIM3#
main45286-01902-E0i198809-198909
W(TILT STEERING),DARK BEIGE,TRIM4#
main45286-01902-J0i198809-199209
W(TILT STEERING),DARK BLUE,TRIM8#
main45286-01902-J0i199008-199209
DARK BLUE,TRIM8#
main45286-01903-06i198909-199209
BROWN,TRIM4#,*84
main45286-01903-B0i198909-199209
SHADOW GRAY,TRIM1#,*84
main45286-01903-D0i198909-199209
MAROON,TRIM3#,*84
main45286-01903-J0i198909-199209
DARK BLUE,TRIM8#,*84
main45286-01904-06i198909-199209
W(TILT STEERING),BROWN,TRIM4#
main45286-01904-06i199008-199209
BROWN,TRIM4#
main45286-01904-B0i199008-199009
W(TILT STEERING),DARK SMOKE GRAY
main45286-01904-B0i199008-199009
DARK SMOKE GRAY
main45286-01904-B1i199009-199209
W(TILT STEERING),SHADOW GRAY,TRIM1#
main45286-01904-B1i199009-199209
SHADOW GRAY,TRIM1#
main45286-01904-D0i199008-199209
MAROON,TRIM3#
main45286-01904-D0i198909-199209
W(TILT STEERING),MAROON,TRIM3#
main45286-01904-J0i198909-199209
W(TILT STEERING),DARK BLUE,TRIM8#
main45286-01904-J0i199008-199209
DARK BLUE,TRIM8#
main45286-02901-B0i198909-199209
SHADOW GRAY,TRIM1#
main45286-02901-B1i198811-198909
DARK SMOKE GRAY,TRIM1#
main45286-02901-D0i198811-199209
MAROON,TRIM3#
main45286-02901-E0i198811-199209
DARK BEIGE,TRIM4#
main45286-02901-J0i198811-199209
DARK BLUE,TRIM8#
main45286-02902-02i198909-199209
MAROON,TRIM3#,*85
main45286-02902-04i198909-199209
DARK BLUE,TRIM8#,*85
main45286-02902-06i198909-199209
BROWN,TRIM4#,*85
main45286-02902-13i199008-199209
SHADOW GRAY,TRIM1#,*85
main45286-12944-06i198909-199209
BROWN,TRIM4#,*86 & *87
sub45286-12944
main45286-12944-B0i198909-199008
DARK SMOKE GRAY,*86 & *87
sub45286-12944
main45286-12944-B1i198909-199209
SHADOW GRAY,TRIM1#,*86 & *87
sub45286-12944
main45286-12944-D0i198909-199209
MAROON,TRIM3#,*86 & *87
sub45286-12944
main45286-12944-J0i198909-199209
DARK BLUE,TRIM8#,*86 & *87
sub45286-12944
main45286-12945-03i199009-199209
SHADOW GRAY,TRIM1#,*86 & *87
sub45286-12945
main45286-12945-03i198909-199209
W(TILT STEERING),SHADOW GRAY,TRIM1#,*86 & *87
sub45286-12945
main45286-12945-06i198909-199209
W(TILT STEERING),BROWN,TRIM4#,*86 & *87
sub45286-12945
main45286-12945-06i199009-199209
BROWN,TRIM4#,*86 & *87
sub45286-12945
main45286-12945-D0i198909-199209
W(TILT STEERING),MAROON,TRIM3#,*86 & *87
sub45286-12945
main45286-12945-D0i199009-199209
MAROON,TRIM3#,*86 & *87
sub45286-12945
main45286-12945-J0i198909-199209
W(TILT STEERING),DARK BLUE,TRIM8#,*86 & *87
sub45286-12945
main45286-12945-J0i199009-199209
DARK BLUE,TRIM8#,*86 & *87
sub45286-12945
45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1
main45802-12020i198809-199209
main45802-12060i198909-199209
W(TILT STEERING)
45804CWASHER, PLATE(FOR STEERING TILT LEVER)
main90201-10283i198809-199209
45805ASUPPORT SUB-ASSY, TILT STEERING
main45805-12010i198809-199209
45805BBUSH(FOR TILT STEERING SUPPORT)
main90386-06031i198809-199001
45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)
main90501-20072i198809-199001
sub45820-12010
45817STOPPER, STEERING SHAFT THRUST
main45817-12030i198809-199209
45819RETAINER, TILT LEVER
main45819-12010i198809-199106
sub45819-12020
main45819-12020i199106-199209
45820SPRING ASSY, TILT STEERING SUPPORT
main45820-12010i199001-199209
45826LEVER, STEERING TILT
main45826-12020i198809-198908
main45826-12021i198908-199209
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
main90507-12029i198809-199209
45827ALEVER, STEERING TILT SUB
main45827-12010i198809-198908
main45827-12011i198908-199106
main45827-12020i199106-199209
45831BOLT, TILT LEVER LOCK, NO.1
main45831-12010i198809-199209
45855BOLT, TILT STEERING, NO.1
main45855-12010i198809-199106
OD=9.989-9.998
main45855-12020i198809-199106
OD=9.998-10.007
main45855-12030i199106-199209
OD=9.989-9.998
main45855-12040i199106-199209
OD=9.998-10.007
45856BOLT, TILT STEERING, NO.2
main45856-12010i198809-199106
OD=9.989-9.998
main45856-12020i198809-199106
OD=9.998-10.007
main45856-12030i199106-199209
OD=9.989-9.998
main45856-12040i199106-199209
OD=9.998-10.007
45865COLLAR, STEERING MAIN SHAFT
main45865-12050i198809-199106
sub45865-12060
main45865-12060i199106-199209
45866ASTOPPER, STEERING MAIN SHAFT BUSH
main45866-12010i198809-199106
45890APAWL ASSY, TILT STEERING
main45890-12020i198809-198908
LH
sub45890-12H00
main45890-12021i198908-199209
LH
main45890-12030i198809-198908
RH
sub45890-12H00
main45890-12031i198908-199209
RH
45890CCOLLAR(FOR TILT STEERING PAWL)
main90389-07004i198809-199209
MARK 0
main90389-07005i198809-199209
MARK 2
main90389-07006i198809-199209
MARK 3
main90389-07007i198809-199209
MARK 4
main90389-07008i198809-199209
MARK A
main90389-07009i198809-199209
MARK 6
main90389-07010i198809-199209
MARK 7
main90389-07011i198809-199209
MARK 8
45893ASTOPPER, TILT STEERING PAWL
main45893-12020i198809-198908
LH
main45893-12021i198908-199209
MARK A,LH
main45893-12070i198809-198908
RH
main45893-12071i198908-199209
MARK F OR 11,RH
45897BOLT, STEERING LOCK SET
main45897-12020i198809-199209
9011906378
main90119-06378
9011906569
main90119-06569
9011908560
main90119-08560
9011910478
main90119-10478
9016450048
main90164-50048
9017906045
main90179-06045
9017910016
main90179-10016
9017910065
main90179-10065
9020610009
main90206-10009
9161160820
main91611-60820
9165540620
main91655-40620
9165540625
main91655-40625
9331514012
main93315-14012
9461410600
main94614-10600

50 parts on this diagram · 2 diagrams in section
