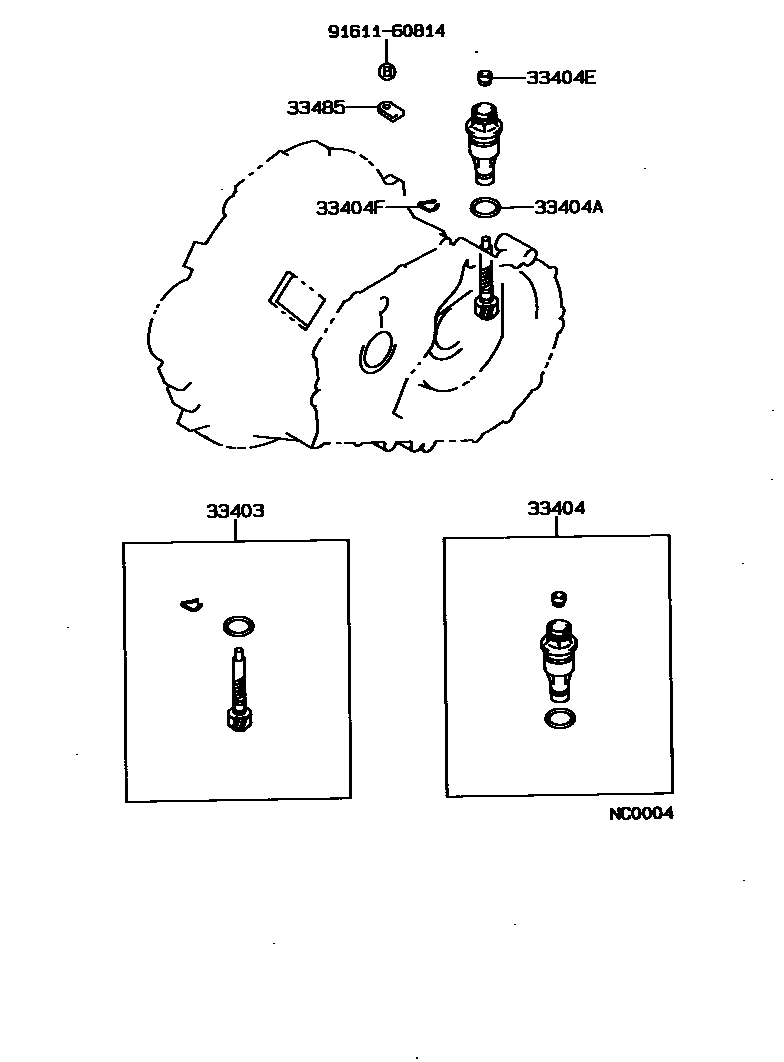

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19285iAE92..5F..DX198809-199209

N=31,MARK 31:35

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-12030iAE92..5F..DX198809-199209

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24030iAE92..5F..DX198809-199209

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE92..5F..DX198809-199209

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE92..5F..DX198809-199209

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iAE92..5F..DX198809-199209

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
