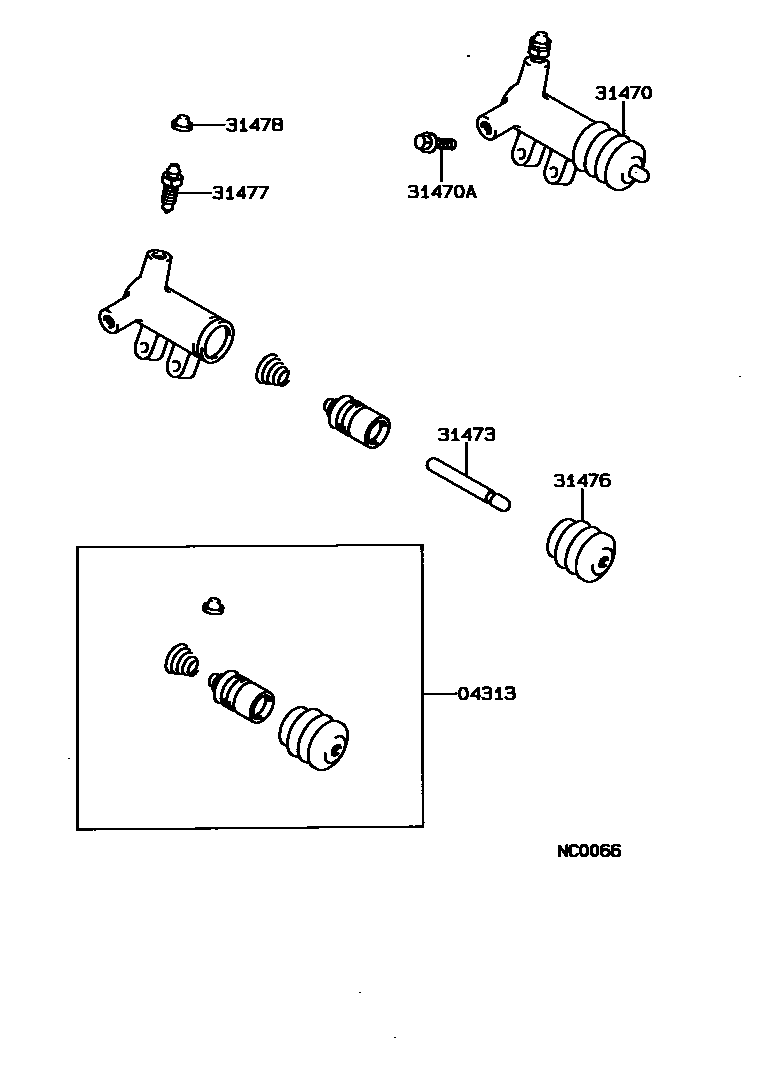

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAE92..5F¥800198809-199209

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12092iAE92..5F¥7,100198809-199209

sub31470-12093¥7,300

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE92..5F¥170198809-199209

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iAE92..5F¥450198809-199209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE92..5F¥230198809-199209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main31477-12010iAE92..5F¥350198809-198902

sub47547-20010¥200

main47547-20010iAE92..5F¥200198902-199209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAE92..5F¥160199205-199209

*86

main31478-30010iAE92..5F¥160198809-199205

main31478-30010iAE92..5F¥160199205-199209

*86 & *87

7 parts on this diagram · 1 diagram in section
