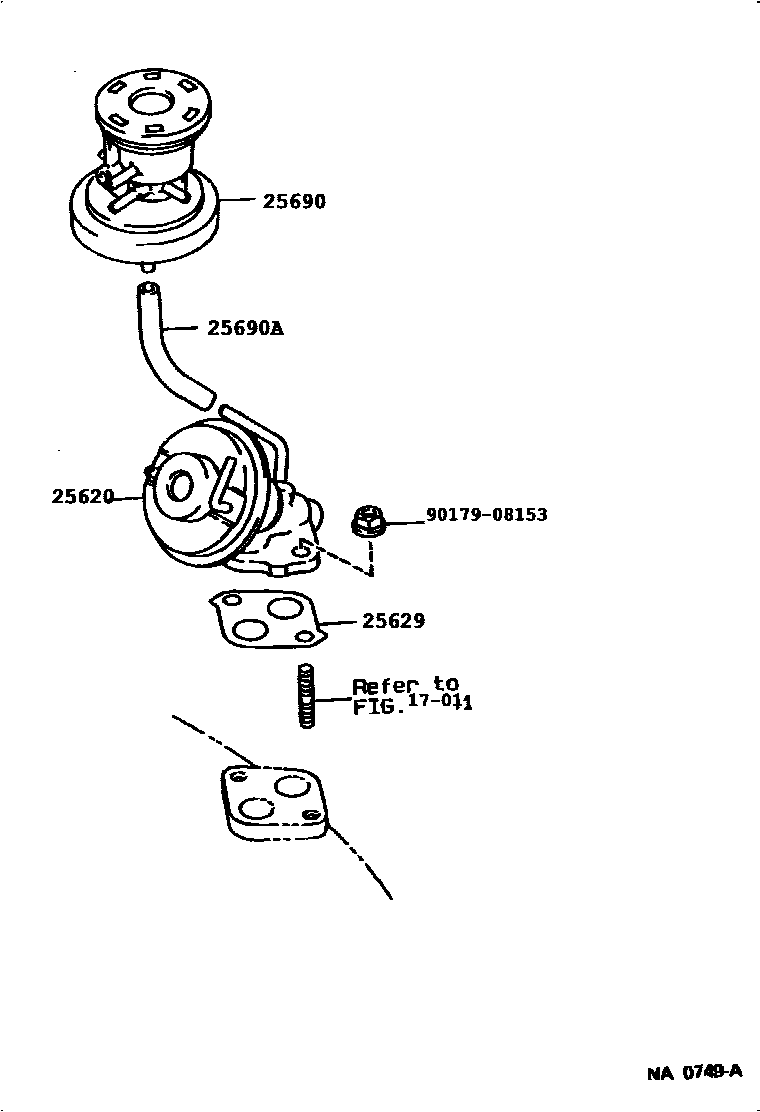

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1CALIFORNIA SPEC

1701

25620VALVE ASSY, EGR

main25620-16050i4AF..AE92..5F¥19,700198809-198909

main25620-16060i4AF..AE92..ATM¥19,700198809-198909

main25620-16070i4AF..AE92..5F..USA¥19,400198809-198909

CALIFORNIA SPEC

main25620-16080i4AF..AE92..ATM..USA¥19,800198809-198909

CALIFORNIA SPEC

main25620-16121i4AFE..AE92..5F..USA¥19,500198909-199209

CALIFORNIA SPEC

main25620-16131i4AFE..AE92..ATM..USA¥19,500198909-199209

CALIFORNIA SPEC

25629GASKET, EGR VALVE ADAPTER

main25627-16020i4AF..AE92¥350198812-198909

main25627-16020i4AFE..AE92..USA¥350198909-199209

CALIFORNIA SPEC

main25629-15020i4AF..AE92¥350198809-198812

sub25627-16020¥350

25690MODULATOR ASSY, EGR VACUUM

main25870-16060i4AF..AE92..5F¥7,600198809-198909

main25870-16070i4AF..AE92..ATM¥7,500198809-198909

main25870-16150i4AFE..AE92..ATM..USA¥7,500198909-199209

CALIFORNIA SPEC

main25870-16180i4AFE..AE92..5F..USA¥7,500198909-199209

CALIFORNIA SPEC

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16050i4AFE..AE92..USA¥740198909-199209

CALIFORNIA SPEC

main90445-11017i4AF..AE92¥260198809-198909

9017908153

main90179-08153¥90

6 parts on this diagram · 2 diagrams in section
