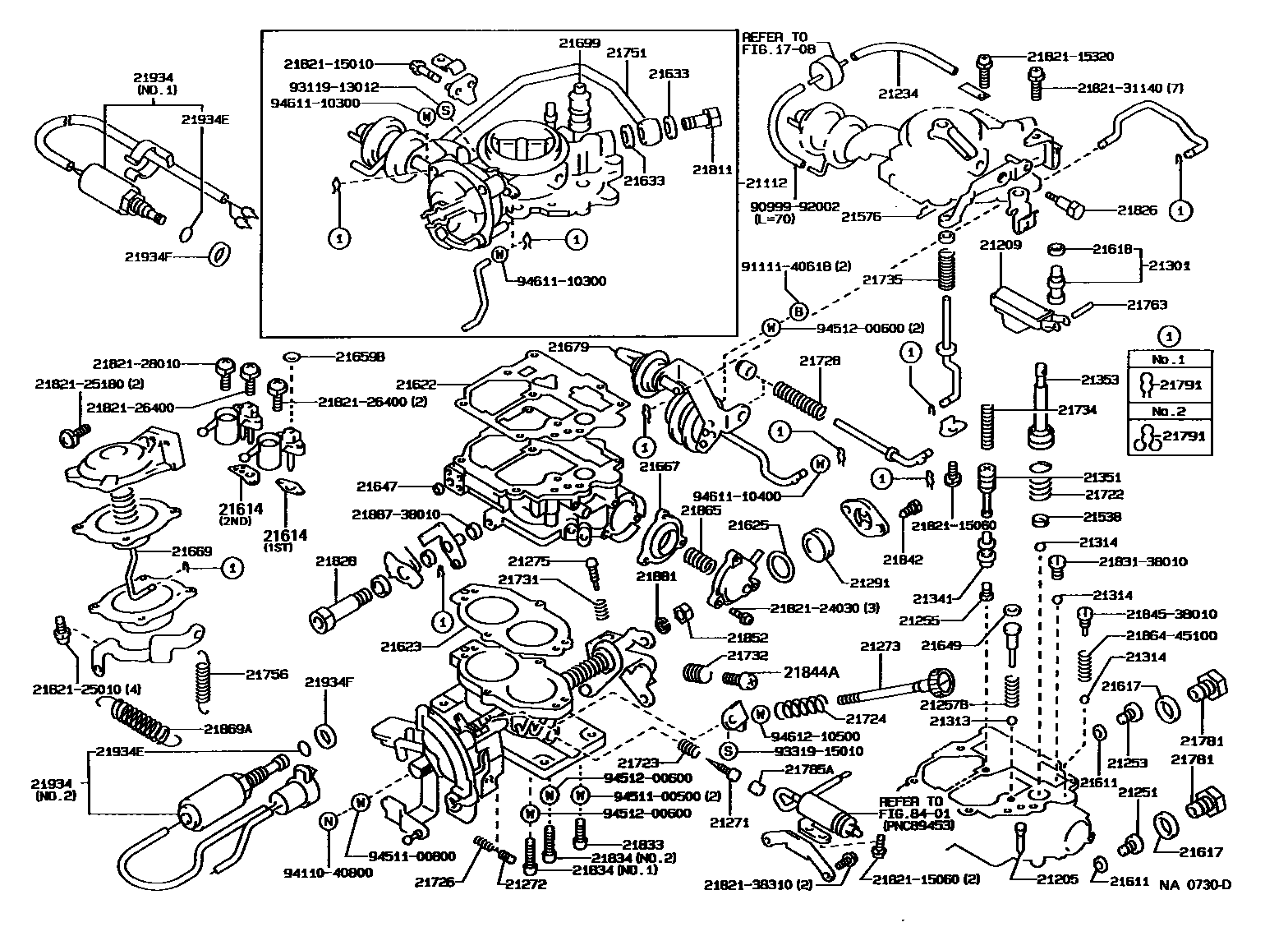

CARBURETOR
1708
21112HORN, AIR
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21234PIPE OR HOSE
sub90999-92002
21251JET, 1ST MAIN
21253JET, 2ND MAIN
21255JET, POWER
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21301VALVE SUB-ASSY, NEEDLE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341VALVE, POWER
21351PISTON, POWER
21353PLUNGER, PUMP
sub21353-16510
21538RETAINER, BALL CHECK
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21614GASKET, VENTURI
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21622GASKET, AIR HORN
sub21622-16440
21623GASKET, BODY FLANGE
sub21623-16280
21625GASKET, LEVEL GAGE
21633GASKET, UNION NIPPLE
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659BRING(FOR CARBURETOR)
21667DIAPHRAGM
sub21675-35510
21669DIAPHRAGM
21679POSITIONER
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21732SPRING, THROTTLE ADJUSTING
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785APLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
NO.2
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
sub90079-12002
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
NO.2
NO.1
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21844ASCREW
21852NUT, THROTTLE LEVER SET
21865SPRING
21869ASPRING(FOR THROTTLE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
NO.1
NO.2
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
8401
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2183138010SCREW, POWER PISTON STOP
main21831-38010
2184538010SCREW(FOR LEVER SET)
main21845-38010
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9099992002
main90999-92002
9111140618
main91111-40618
9311913012
main93119-13012
9331915010
main93319-15010
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
9461210500
main94612-10500
92 parts on this diagram · 1 diagram in section
