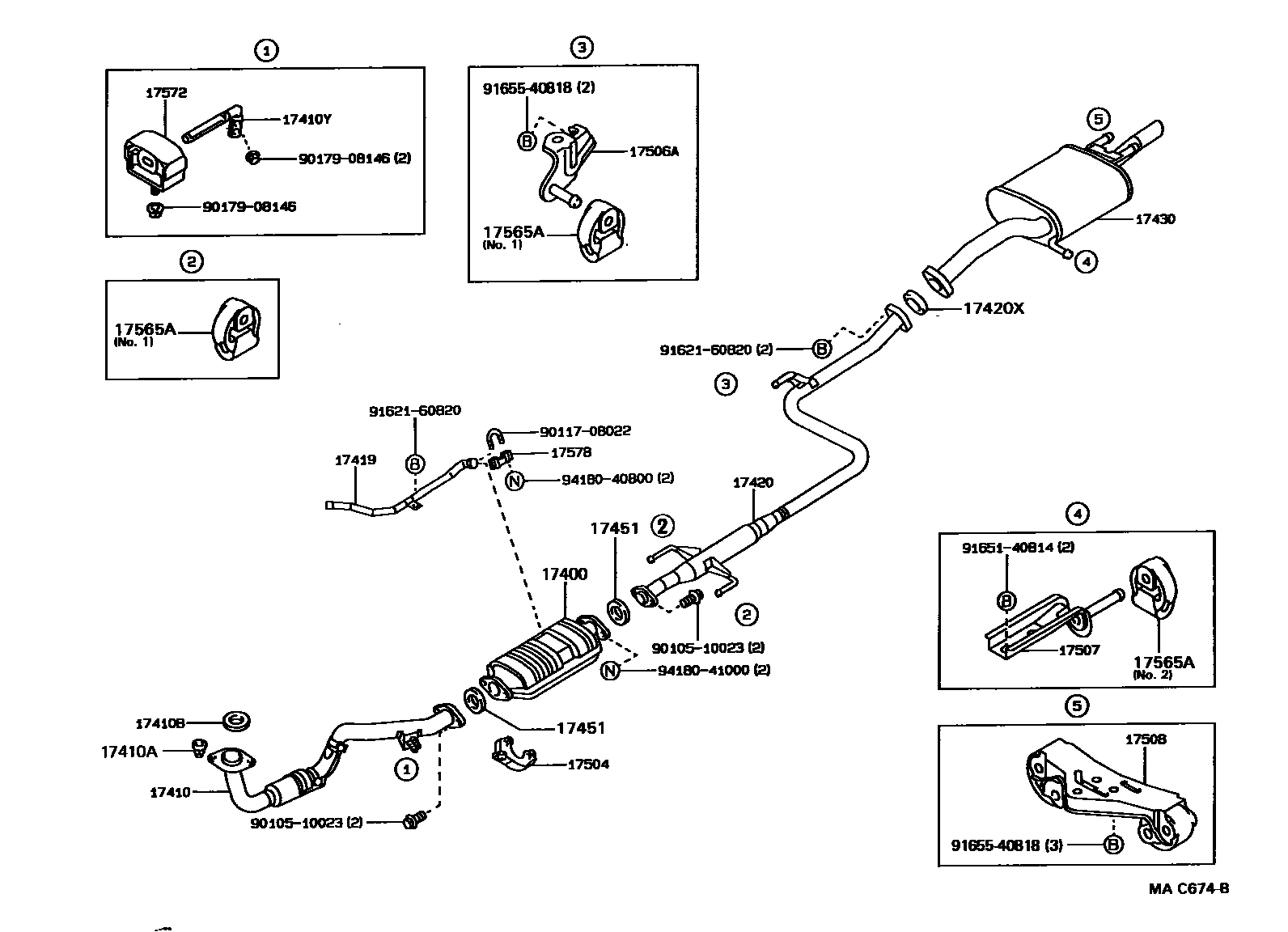

EXHAUST PIPE
17400CONVERTER ASSY, W/CATALYST
EX.EMISSION CONTROL(USA CALIFORNIA)
EX.EMISSION CONTROL(USA CALIFORNIA)
3
17410PIPE ASSY, EXHAUST, FRONT
*85
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17419PIPE, CONVERTER AIR INLET
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
*86
*86 & *87
*86 & *87
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
*86
*86 & *87
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
*86
*86 & *87
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
*86
*86 & *87
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.2,*86
NO.1,*86
NO.2,*86 & *87
NO.1,*86 & *87
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
*86
*86 & *87
17578CLAMP, PIPE
9010510023
9011708022
9017908146
9162160820
9165140814
9165540818
9418040800
9418041000
25 parts on this diagram · 1 diagram in section
