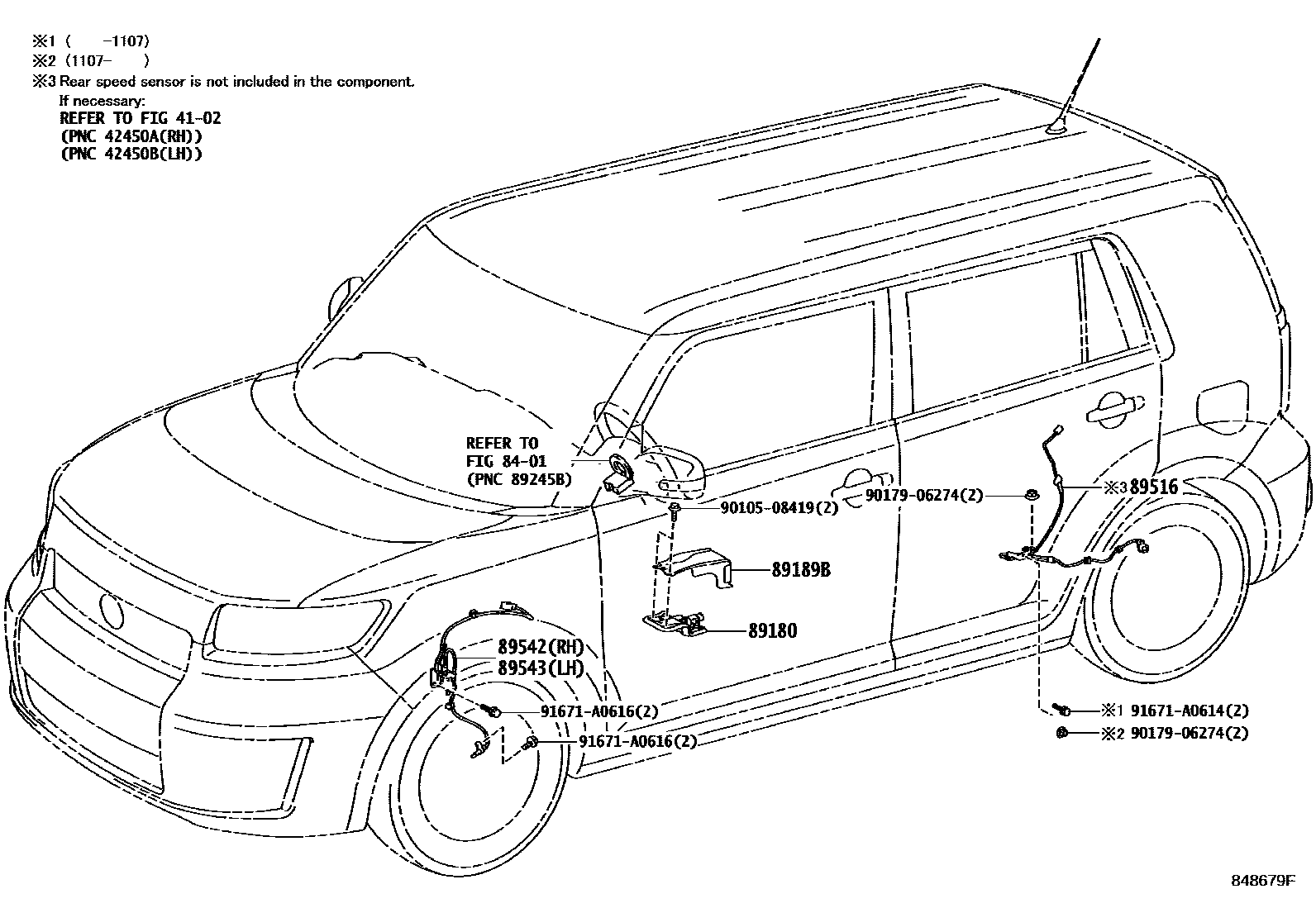

ABS & VSC

4102

8401

89180SENSOR ASSY, YAWRATE

main89180-12080iAZE151200703-201003

main89180-12140iAZE151201003

89189BBRACKET, YAWRATE SENSOR

main89189-12091iAZE151200703-201003

89516WIRE, SKID CONTROL SENSOR

main89516-12051iAZE151201003-201107

RH

sub90179-06178

main89516-12061iAZE151201003-201107

LH

sub90179-06178

main89516-12070iAZE151201107-201512

RH

main89516-12080iAZE151201107-201512

LH

89542SENSOR, SPEED, FRONT RH

main89542-12080iAZE151200703-201003

89543SENSOR, SPEED, FRONT LH

main89543-12080iAZE151200703-201003

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

11 parts on this diagram · 1 diagram in section
