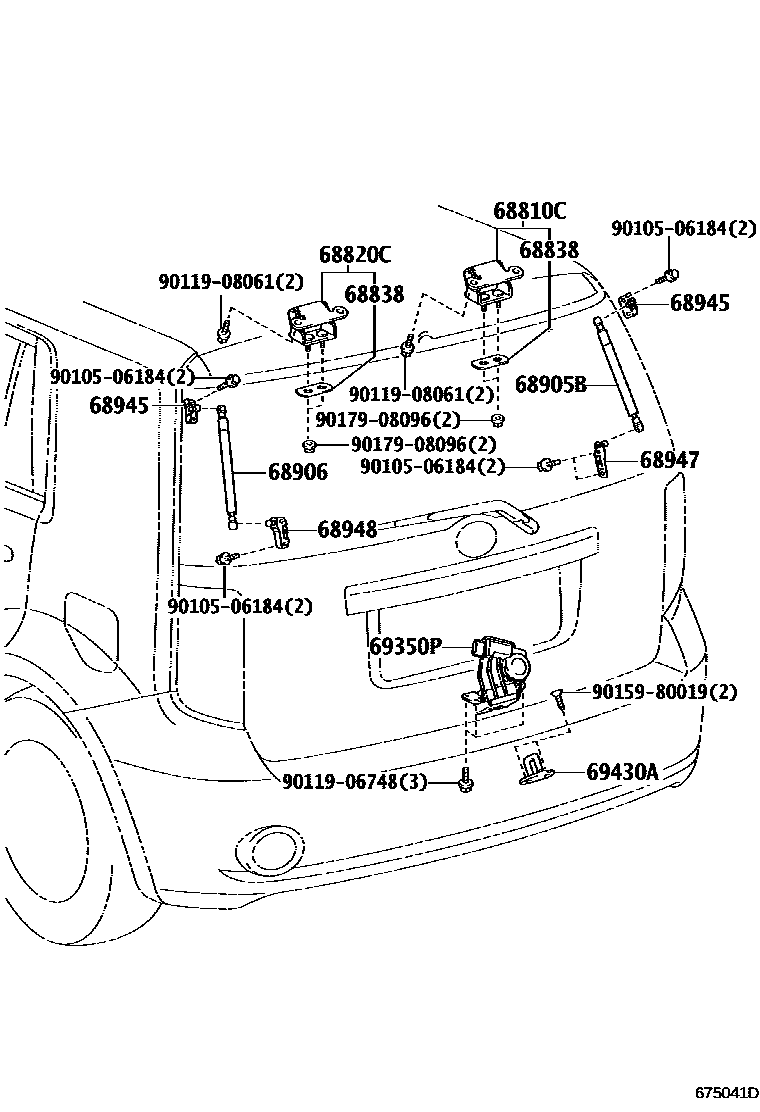

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iAZE151200703-201003

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iAZE151200703-201003

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iAZE151200703-201003

T=1.0

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68950-12520iAZE151200703-201202

sub68950-12521

main68950-12521iAZE151201203

68906STAY SUB-ASSY, BACK DOOR, LH

main68960-12340iAZE151200703-201202

sub68960-12341

main68960-12341iAZE151201203

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12060iAZE151200703-201003

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-12060iAZE151200703-201003

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-12060iAZE151200703-201003

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iAZE151200703-201512

sub69350-28151

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-20160iAZE151200703-201312

main69431-12030iAZE151201312

9010506184

main90105-06184

9011906748

main90119-06748

9011908061

main90119-08061

9015980019

main90159-80019

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
