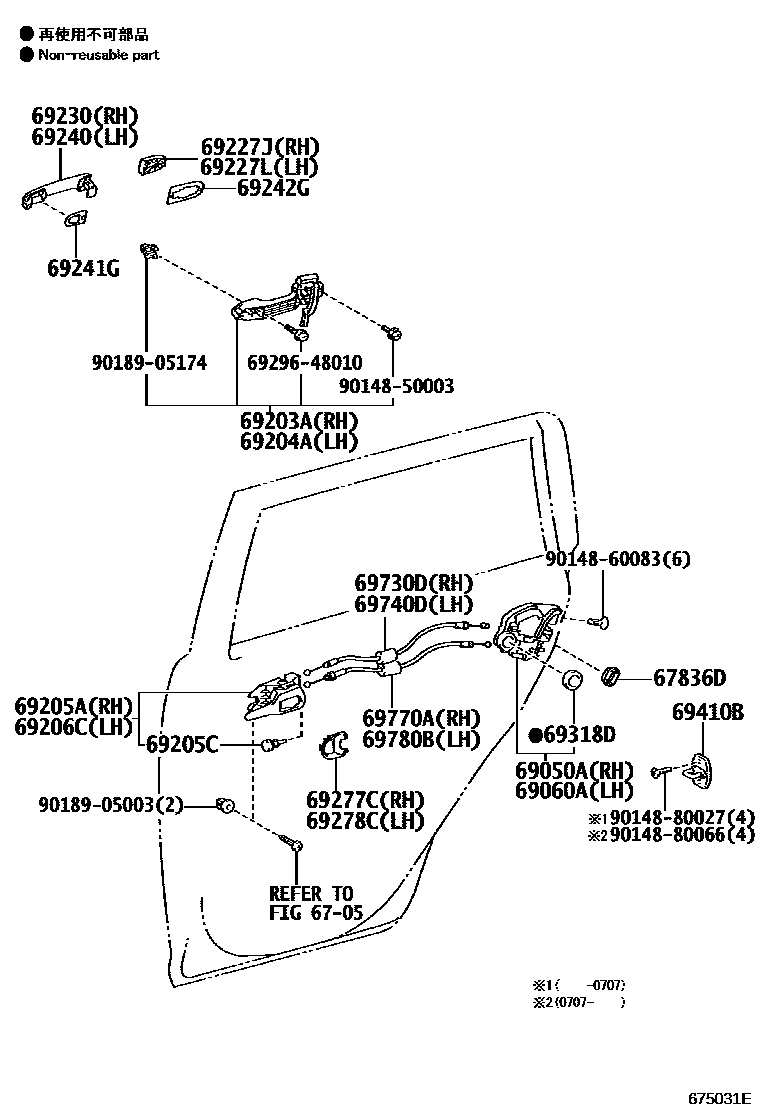

REAR DOOR LOCK & HANDLE
6705
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8
sub69211-12903
sub69211-12220
sub69211-52090
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8
sub69211-12903
sub69211-12220
sub69211-52090
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860083
main90148-60083
9014880027
main90148-80027
9014880066
main90148-80066
9018905003
main90189-05003
9018905174
main90189-05174
30 parts on this diagram · 1 diagram in section
