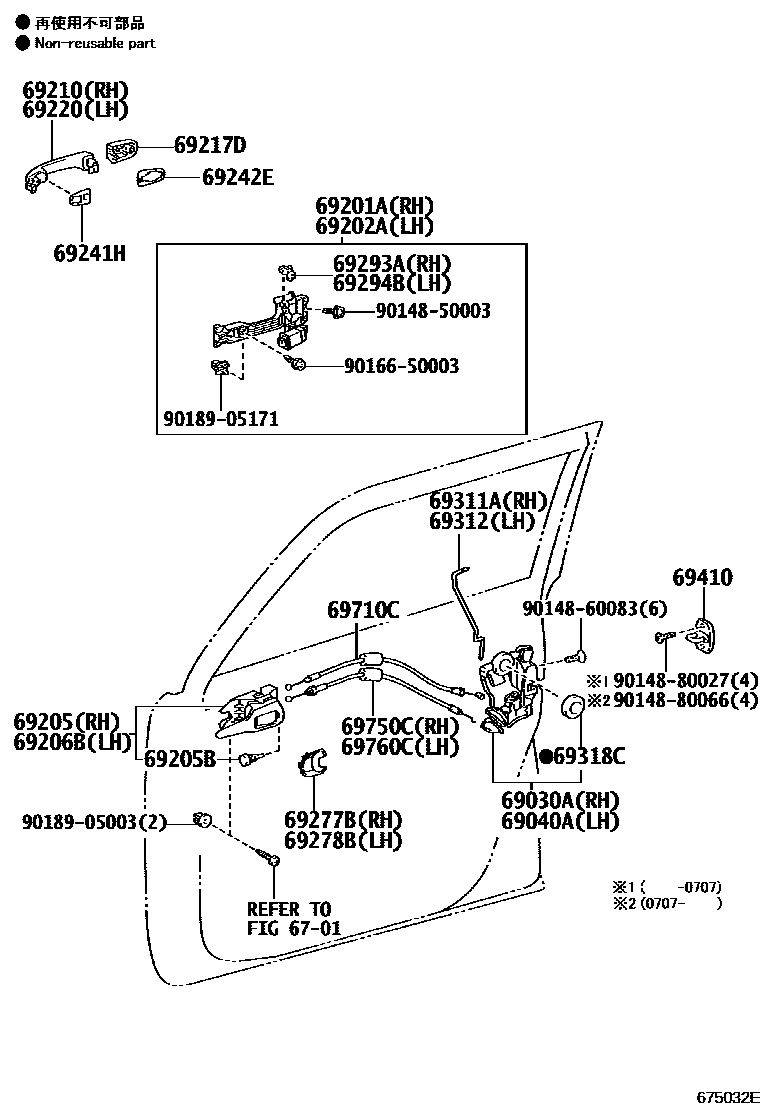

FRONT DOOR LOCK & HANDLE

6701

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42230i200703-201003

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-42250i200703-201003

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-52040i200703-201003

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52020i200703-201003

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12230-B0i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10

main69205-12230-B0i200703-201512

DK.GRAY,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027i200703-201003

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12230-B0i200703-201512

DK.GRAY,TRIM1#

main69206-12230-B0i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-12220-05i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-A0i200703-201512

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C1i201508-201510

LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2i200703-201512

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-F6i200712-200802

SPECIAL EDITION,YELLOW M.M.,580

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K2i200911-201001

XB RS7.0,PURPLE ME.,9AD

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K5i201003-201301

DK.VIOLET M.M.,9AF

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-M1i201110-201112

LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-M2i201003-201512

ARMY ROCK ME.,4V0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P6i200703-201512

SILVER ME.,1F7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R7i200703-201301

BLUE ME.,8T4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R8i200703-201512

DK.BLUE MC.,8S6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-S1i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V3i200703-201003

SILENT BLUE ME.,8U3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V7i201010-201012

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0i200812-200902

SPECIAL EDITION,SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0i201301-201512

SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X8i200703-200903

MAROON MC.,3N0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-Y2i200903-201512

BLACKISH RED MC.,3R0

sub69211-12903

sub69211-12220

sub69211-52090

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12040-03i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087,PASSENGER SIDE

sub69217-12040

main69217-12040-A0i200703-201512

SUPER WHITE 2,040,PASSENGER SIDE

sub69217-12040

main69217-12040-C1i201508-201510

LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5,PASSENGER SIDE

sub69217-12040

main69217-12040-C2i200703-201512

BLACK MC.,209,PASSENGER SIDE

sub69217-12040

main69217-12040-D5i200812-200902

SPECIAL EDITION,SUPER RED 5,3P0,PASSENGER SIDE

sub69217-12040

main69217-12040-D5i201301-201512

SUPER RED 5,3P0,PASSENGER SIDE

sub69217-12040

main69217-12040-F7i200712-200802

SPECIAL EDITION,YELLOW M.M.,580,PASSENGER SIDE

sub69217-12040

main69217-12040-K2i200911-201001

XB RS7.0,PURPLE ME.,9AD,PASSENGER SIDE

sub69217-12040

main69217-12040-K5i201003-201301

DK.VIOLET M.M.,9AF,PASSENGER SIDE

sub69217-12040

main69217-12040-L6i201110-201112

LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8,PASSENGER SIDE

sub69217-12040

main69217-12040-L7i201003-201512

ARMY ROCK ME.,4V0,PASSENGER SIDE

sub69217-12040

main69217-12040-P1i200703-201512

SILVER ME.,1F7,PASSENGER SIDE

sub69217-12040

main69217-12040-P7i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8,PASSENGER SIDE

sub69217-12040

main69217-12040-R4i200703-201301

BLUE ME.,8T4,PASSENGER SIDE

sub69217-12040

main69217-12040-R5i200703-201512

DK.BLUE MC.,8S6,PASSENGER SIDE

sub69217-12040

main69217-12040-V2i200703-201003

SILENT BLUE ME.,8U3,PASSENGER SIDE

sub69217-12040

main69217-12040-V7i201010-201012

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6,PASSENGER SIDE

sub69217-12040

main69217-12040-X3i200703-200903

MAROON MC.,3N0,PASSENGER SIDE

sub69217-12040

main69217-12040-X7i200903-201512

BLACKISH RED MC.,3R0,PASSENGER SIDE

sub69217-12040

main69217-42020-07i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-A3i200703-201512

SUPER WHITE 2,040,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-C0i201508-201510

LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-C2i200703-201512

BLACK MC.,209,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-F6i200712-200802

SPECIAL EDITION,YELLOW M.M.,580,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-K2i200911-201001

XB RS7.0,PURPLE ME.,9AD,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-K5i201003-201301

DK.VIOLET M.M.,9AF,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-M2i201110-201112

LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-M3i201003-201512

ARMY ROCK ME.,4V0,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-P6i200703-201512

SILVER ME.,1F7,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-R8i200703-201301

BLUE ME.,8T4,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-R9i200703-201512

DK.BLUE MC.,8S6,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-S1i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-V5i200703-201003

SILENT BLUE ME.,8U3,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-V9i201010-201012

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-X0i200812-200902

SPECIAL EDITION,SUPER RED 5,3P0,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-X0i201301-201512

SUPER RED 5,3P0,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-X8i200703-200903

MAROON MC.,3N0,DRIVER SIDE

sub69217-42020

sub69217-42010

main69217-42020-Y2i200903-201512

BLACKISH RED MC.,3R0,DRIVER SIDE

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-12220-05i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,WHITE PEARL CS.,087

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-A0i200703-201512

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C1i201508-201510

LIMITED PACKAGE-XB SNOW SPORTS SERIES,BLACK,4U5

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2i200703-201512

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-F6i200712-200802

SPECIAL EDITION,YELLOW M.M.,580

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K2i200911-201001

XB RS7.0,PURPLE ME.,9AD

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K5i201003-201301

DK.VIOLET M.M.,9AF

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-M1i201110-201112

LIMITED PACKAGE-12MY SPECIAL EDITION FOR USA,ORANGE ME.,4R8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-M2i201003-201512

ARMY ROCK ME.,4V0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P6i200703-201512

SILVER ME.,1F7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R7i200703-201301

BLUE ME.,8T4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R8i200703-201512

DK.BLUE MC.,8S6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-S1i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V3i200703-201003

SILENT BLUE ME.,8U3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V7i201010-201012

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0i200812-200902

SPECIAL EDITION,SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0i201301-201512

SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X8i200703-200903

MAROON MC.,3N0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-Y2i200903-201512

BLACKISH RED MC.,3R0

sub69211-12903

sub69211-12220

sub69211-52090

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020i200703-201003

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010i200703-200710

main69242-52020i200710-201003

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-12170-B0i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10

main69277-12170-B0i200703-201512

DK.GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-12170-B0i200703-201512

DK.GRAY,TRIM1#

main69278-12170-B0i201405-201407

LIMITED PACKAGE-XB RELEAS SERIES 10.0,DK.GRAY,TRIM10

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030i200703-201003

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040i200703-201003

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12180i200703-201003

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12180i200703-201003

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010i200703-201003

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010i200703-201003

69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL

main69710-12140i200703-201003

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12170i200703-201003

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-12170i200703-201003

9014850003

main90148-50003

9014860083

main90148-60083

9014880027

main90148-80027

9014880066

main90148-80066

9016650003

main90166-50003

9018905003

main90189-05003

9018905171

main90189-05171

31 parts on this diagram · 1 diagram in section
