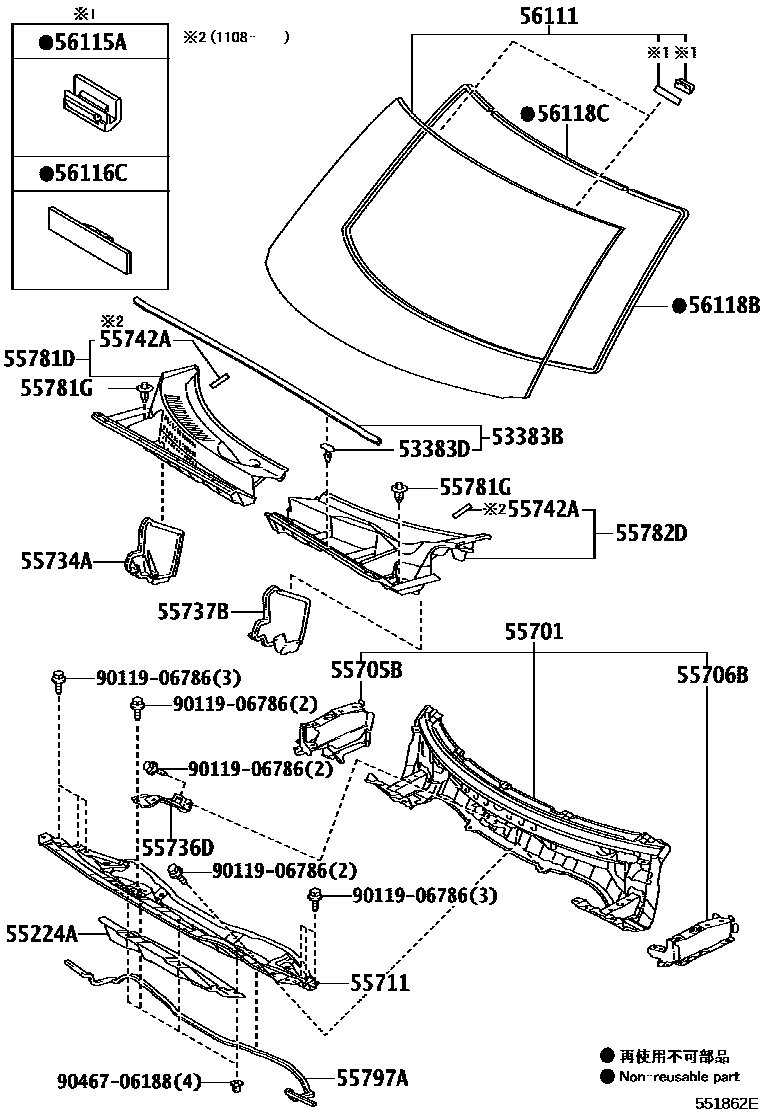

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12180iAZE151200703-201003

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iAZE151200703-201003

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-12050iAZE151200703-201003

55701PANEL SUB-ASSY, COWL

main55700-12B50iAZE151200703-201003

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12120iAZE151200703-201003

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12130iAZE151200703-201003

55711PANEL, COWL TOP, OUTER

main55701-12B00iAZE151200703-201003

55734APLATE, WATER GUARD, RH

main55734-12190iAZE151200703-201003

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-12070iAZE151200703-201003

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-12120iAZE151200703-201003

55742ASHEET, COWL TOP INSULATOR

main55743-12070iAZE151201108

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12390iAZE151200703-200805

sub55708-12391

main55708-12391iAZE151200806-201003

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iAZE151200703-201512

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12160iAZE151200703-201003

55797ASEAL, COWL WATER EXTRACT

main55797-12070iAZE151200703-201003

56111GLASS, WINDSHIELD

main56101-12490iAZE151200703-201003

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iAZE151200703-201003

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZE151200703-201003

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12320iAZE151200703-201003

sub56117-64010

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-12080iAZE151200703-201003

L=643

sub56117-74010

9011906786

main90119-06786

9046706188

main90467-06188

22 parts on this diagram · 1 diagram in section
