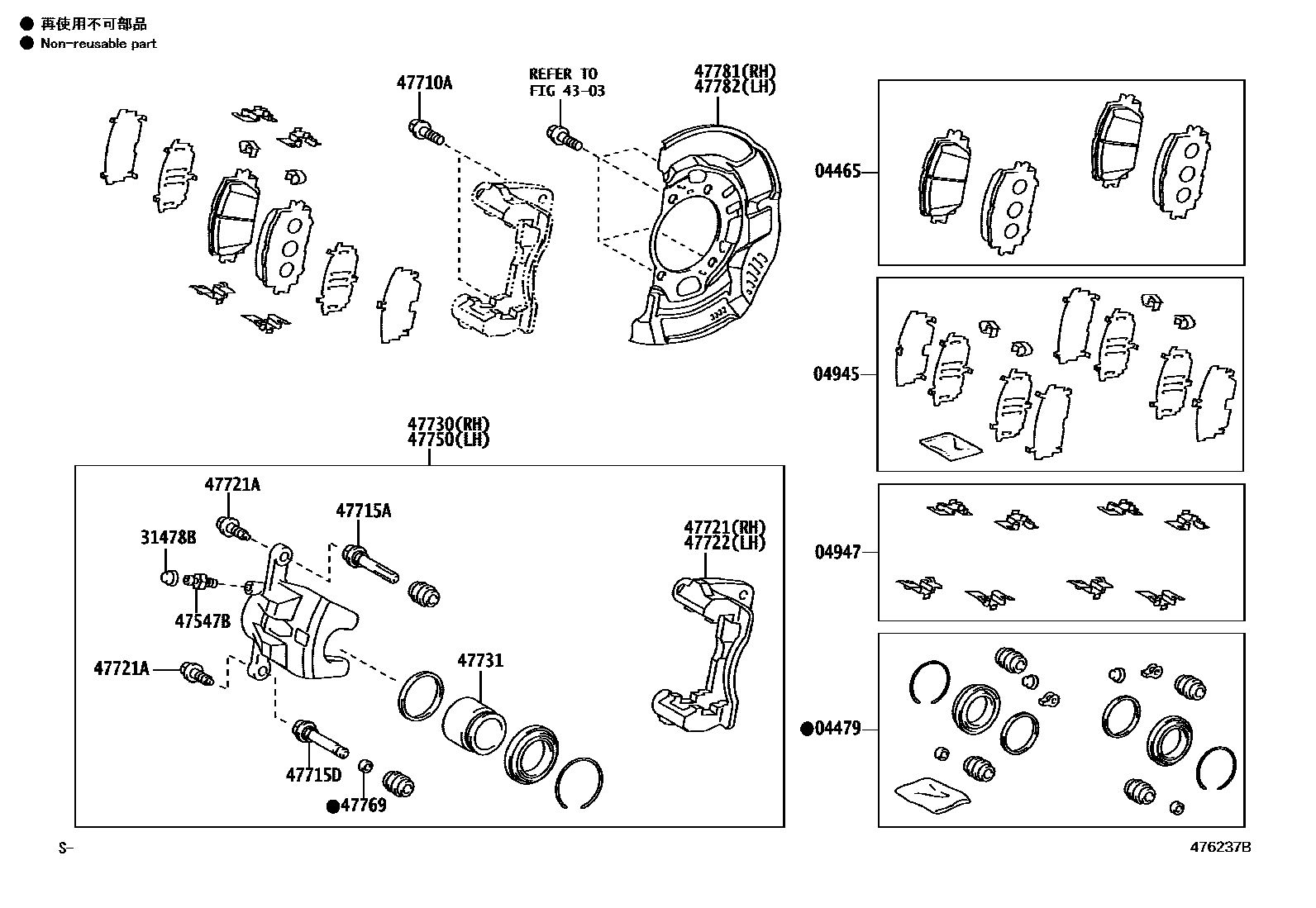

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42160iAZE151200703-201209

MARK ADVICS PV565H

sub04465-42200

main04465-42200iAZE151201209

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iAZE151200703-201003

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12100iAZE151200703-200905

sub04945-12110

main04945-12110iAZE151200905-201311

sub04945-12111

main04945-12111iAZE151201311

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iAZE151200703-201003

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAZE151200703-201003

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAZE151200703-201003

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAZE151200703-201512

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iAZE151200703-201003

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iAZE151200703-201003

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A70iAZE151200703-201003

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iAZE151200703-201003

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A70iAZE151200703-201003

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A70iAZE151200703-201003

47731PISTON, FRONT DISC BRAKE

main47731-12A70iAZE151200703-201003

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A70iAZE151200703-201003

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAZE151200703-201003

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12250iAZE151200703-201512

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12250iAZE151200703-201512

19 parts on this diagram · 1 diagram in section
