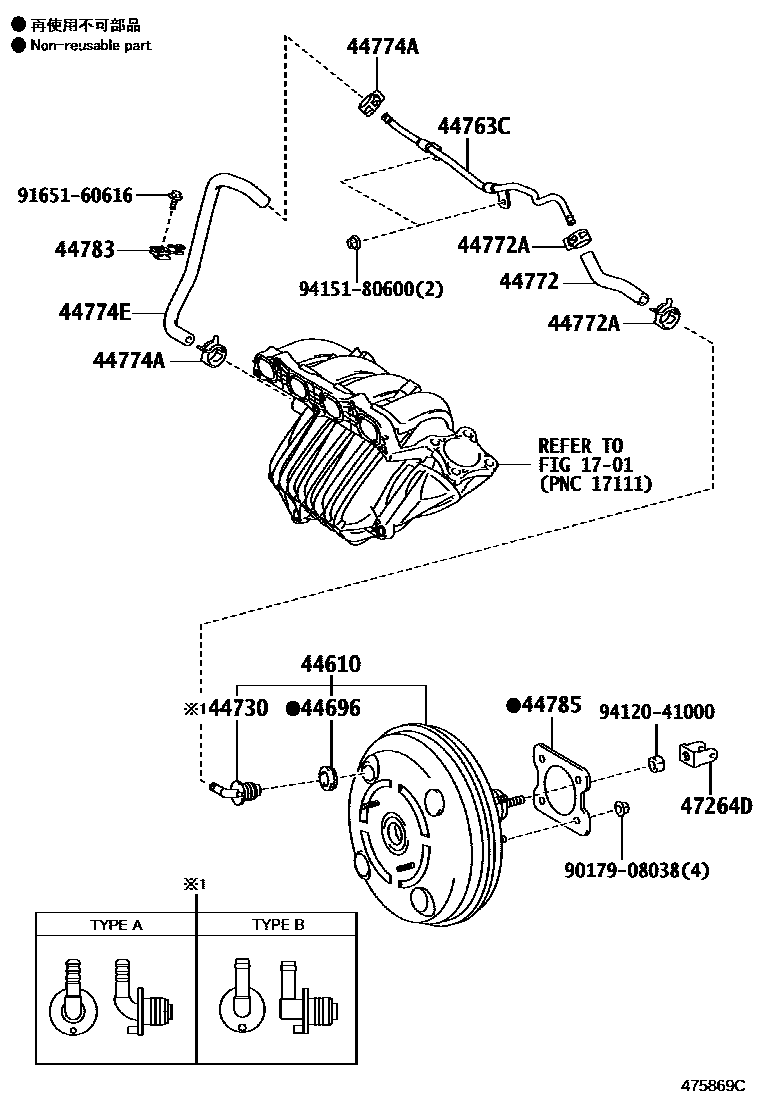

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-12D80iAZE151200703-200803

sub44610-12D81

main44610-12D81iAZE151200803-201512

44696GROMMET, CHECK VALVE

main90480-24439iAZE151200703-201003

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iAZE151200703-201003

main44730-14050iAZE151201003-201212

TYPE A:REFER ILLUST.

main44730-20170iAZE151201212-201512

TYPE B:REFER ILLUST.

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12520iAZE151200703-201003

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12510iAZE151200703-201003

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iAZE151201403

main96133-41500iAZE151200703-201403

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iAZE151201403

main96133-41500iAZE151200703-201403

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12690iAZE151200703-201003

44783CLAMP, VACUUM HOSE

main44783-44010iAZE151200703-201003

44785GASKET, BRAKE BOOSTER

main44785-12040iAZE151200703-201003

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iAZE151200703-201011

main47264-68010iAZE151201012

9017908038

main90179-08038

9165160616

main91651-60616

9412041000

main94120-41000

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
