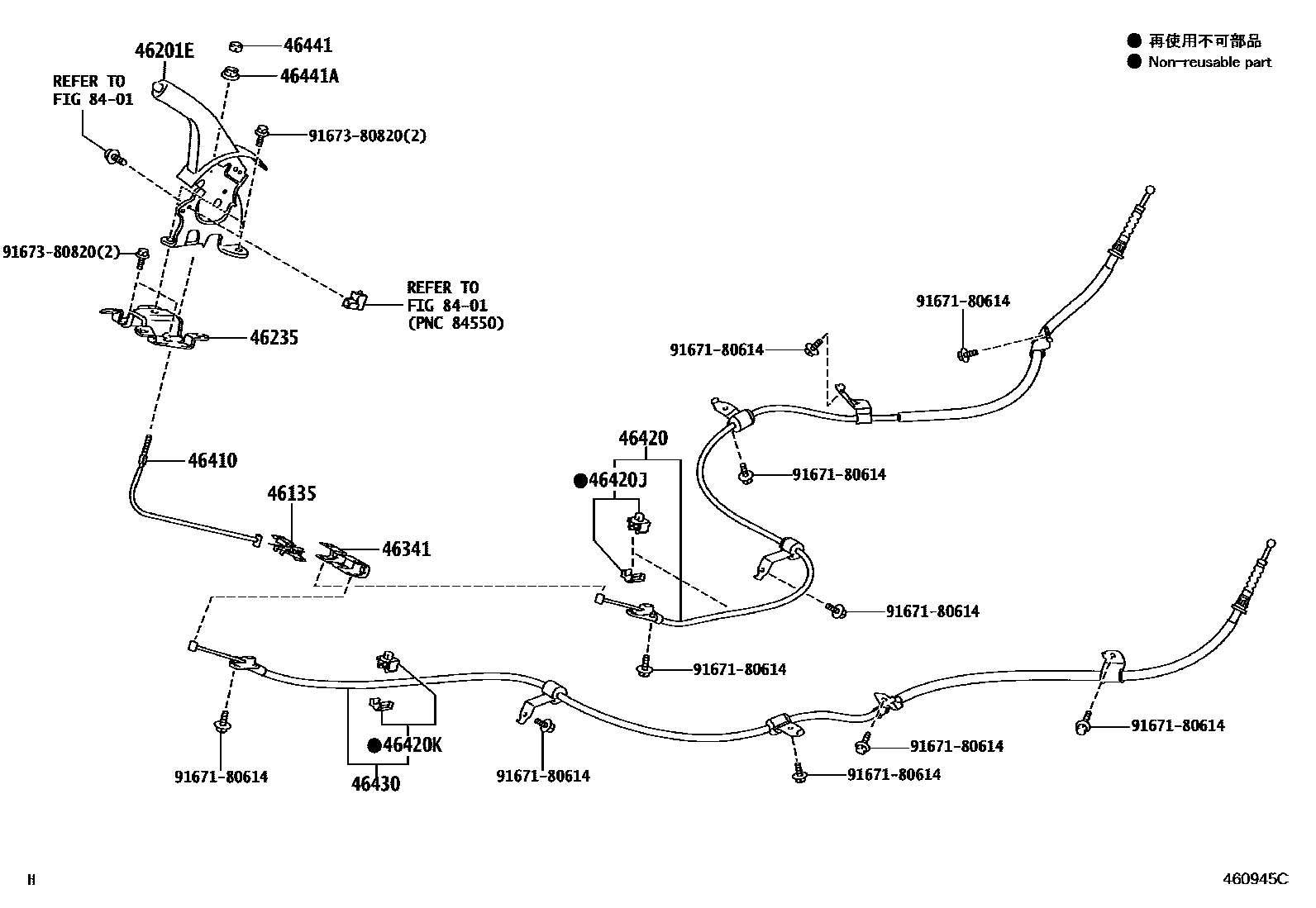

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iAZE151200703-201003

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12470-B0iAZE151200703-201011

DK.GRAY,TRIM1#

sub46201-12470

main46201-12470-C0iAZE151201011-201512

BLACK,TRIM1#

sub46201-12470

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-12020iAZE151200703-201512

46341EQUALIZER, PARKING BRAKE

main46341-12040iAZE151200703-201003

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12290iAZE151200802-201003

main46410-12320iAZE151200703-200801

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12590iAZE151200703-200711

sub46420-12730

main46420-12730iAZE151200712-201003

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-12010iAZE151200703-200711

sub46402-12030

main46402-12030iAZE151200712-201003

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12010iAZE151200703-200711

sub46402-12030

main46402-12030iAZE151200712-201003

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12470iAZE151200703-200711

sub46430-12620

main46430-12620iAZE151200712-201003

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iAZE151200703-201104

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iAZE151200703-201003

8401

9167180614

main91671-80614

9167380820

main91673-80820

14 parts on this diagram · 1 diagram in section
