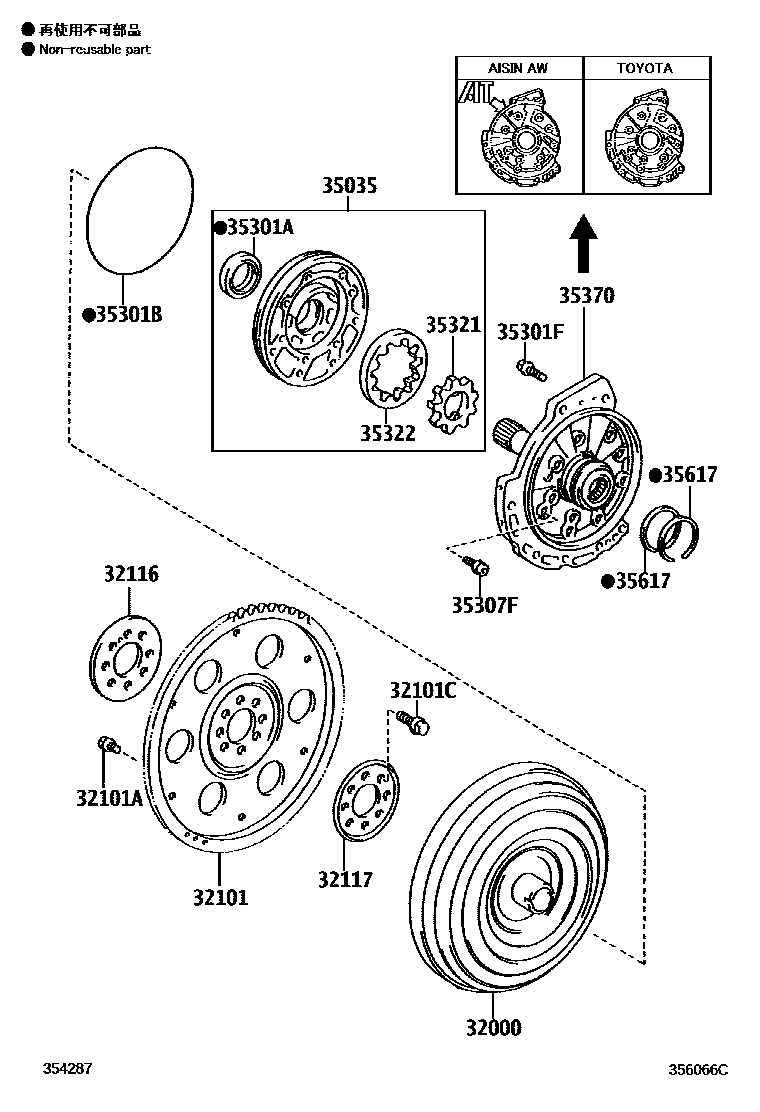

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
(L)
(J)
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
*8-1.25PX28-28,*344
*8-1.25PX28-28,*345
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.715,MARK 1,MARK 1
T=10.715,MARK 2,MARK 2
T=10.715,MARK 3,MARK 3
T=10.715,MARK 4,MARK 4
T=10.715,MARK 5,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.715,MARK 1,MARK 1
T=10.715,MARK 2,MARK 2
T=10.715,MARK 3,MARK 3
T=10.715,MARK 4,MARK 4
T=10.715,MARK 5,MARK 5
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 1 diagram in section
