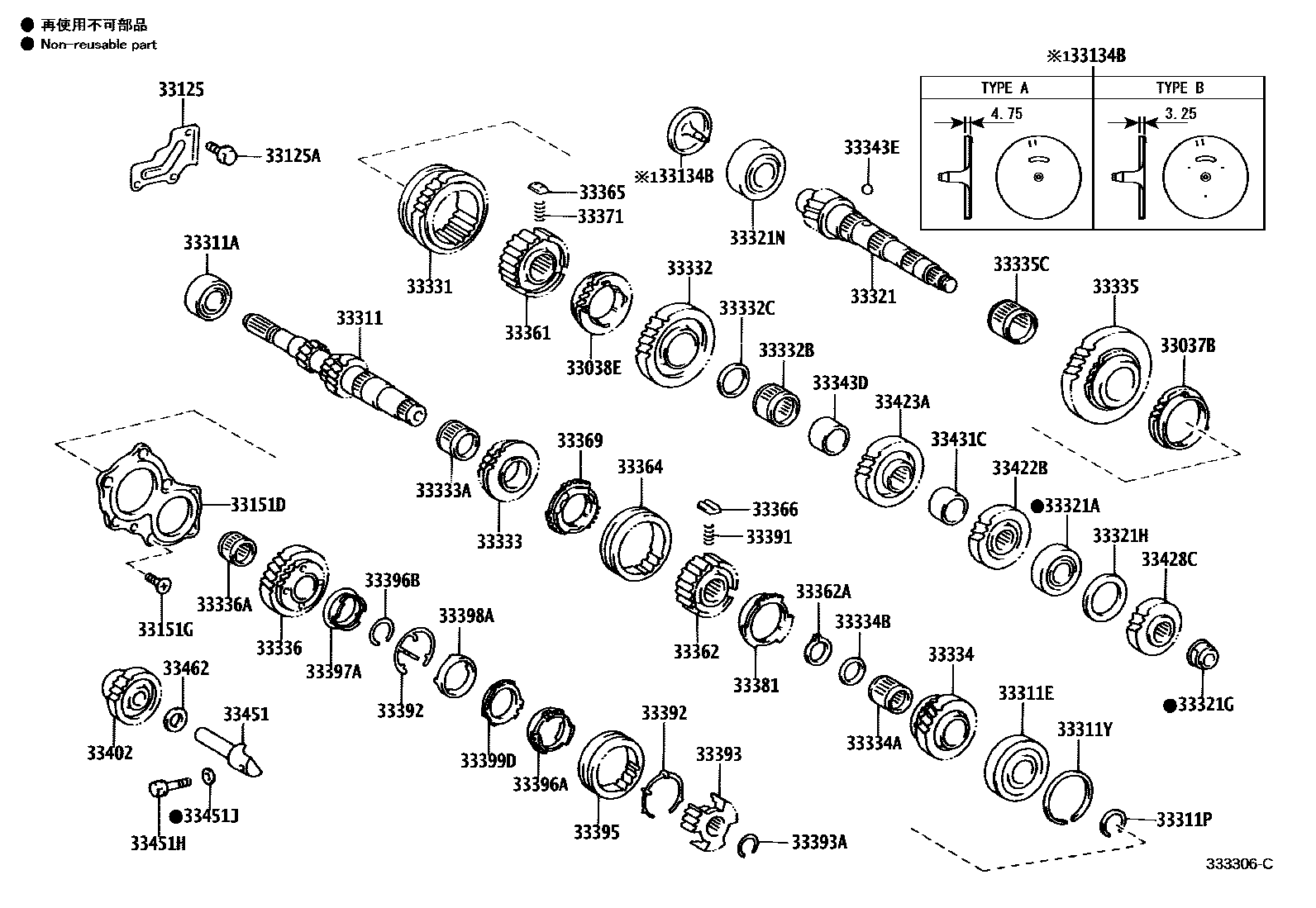

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
33151DRETAINER, BEARING, REAR(MTM)
33151GSCREW(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
PNC 33134B=TYPE A
PNC 33134B=TYPE B
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.30,MARK 0
T=1.35,MARK 1
T=1.40,MARK 2
T=1.45,MARK 3
T=1.50,MARK 4
T=1.55,MARK 5
T=1.60,MARK 6
T=1.65,MARK 7
T=1.70,MARK 8
T=1.75,MARK 9
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35,MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33343DBUSH, 2ND GEAR
33343EBALL (FOR 2ND GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33381RING, 2ND SYNCHRONIZER OUTER
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.1
NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.75-1.80,MARK A
T=1.80-1.85,MARK B
T=1.85-1.90,MARK C
T=1.90-1.95,MARK D
T=1.95-2.00,MARK E
T=2.00-2.05,MARK F
T=2.05-2.10,MARK G
T=2.10-2.15,MARK H
T=2.15-2.20,MARK J
33396ARING, SYNCHRONIZER PULL
33396BRING, SNAP (FOR SYNCHRONIZER PULL RING)
33397ARING, SYNCHRONIZER, INNER NO.5
33398ARING, SYNCHRONIZER, MIDDLE NO.5
33399DRING, SYNCHRONIZER, OUTER NO.5
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33431CSPACER, OUTPUT GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
60 parts on this diagram · 1 diagram in section
