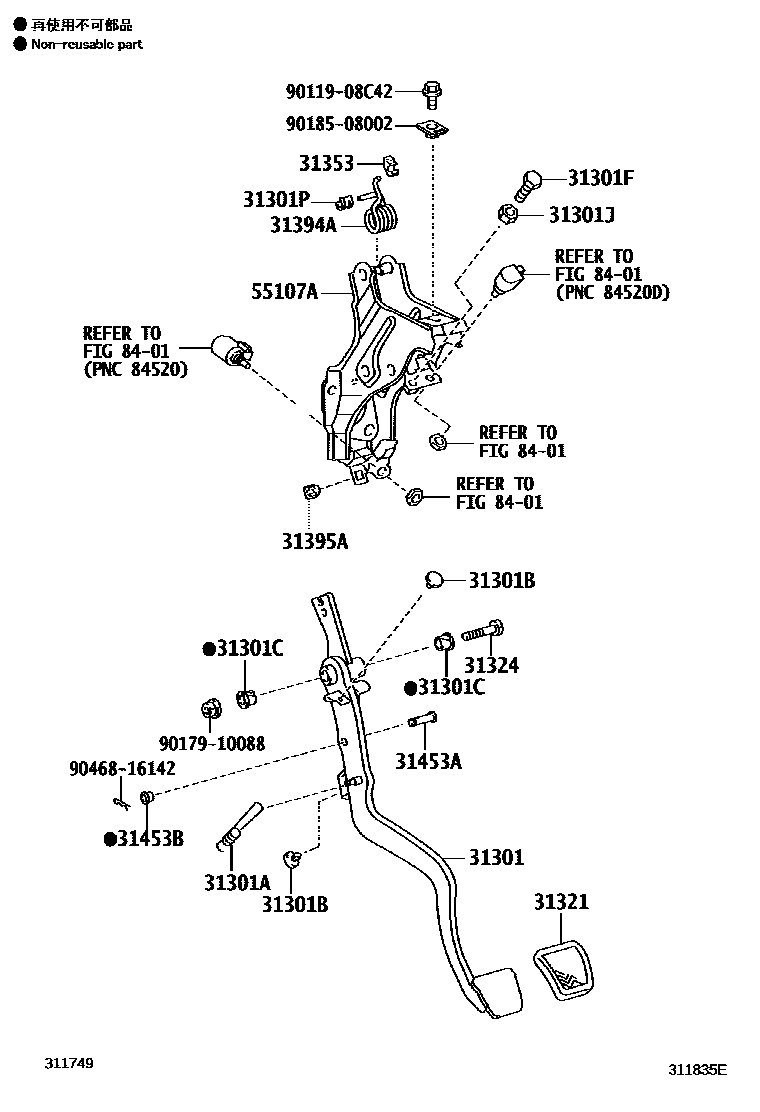

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12520iAZE151..MTM200703-200906

sub31301-12H00

main31301-12521iAZE151..MTM200907-201003

31301ASPRING(FOR CLUTCH PEDAL)

main31394-25010iAZE151..MTM200703-201003

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAZE151..MTM¥110200703-201003

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAZE151..MTM¥120200703-201003

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iAZE151..MTM¥110200907-201003

main90101-10369iAZE151..MTM¥110200703-200907

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iAZE151..MTM200907-201512

main94130-61000iAZE151..MTM¥70200703-200907

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iAZE151..MTM¥100200703-201003

31321PAD, CLUTCH PEDAL

main31321-42010iAZE151..MTM¥230200703-201003

31324SHAFT, CLUTCH PEDAL

main90109-10167iAZE151..MTM¥190200703-201003

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iAZE151..MTM¥210200703-201003

31394ASPRING, PEDAL W/HOOK

main31394-12030iAZE151..MTM200703-201003

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iAZE151..MTM¥90200703-201003

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iAZE151..MTM¥130200703-201003

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAZE151..MTM¥110200703-201003

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12300iAZE151..MTM200703-200906

sub31301-12H00

main55107-12301iAZE151..MTM200907-201003

8401

9011908C42

main90119-08C42¥80

9017910088

main90179-10088¥100

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

20 parts on this diagram · 2 diagrams in section
