1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i200703-200908

main22030-28071i200908-201003

22231BHOSE, THROTTLE BODY

main22231-28060i200703-200908

22271GASKET, THROTTLE BODY

main22271-75031i200703-201003

23250INJECTOR ASSY, FUEL

main23209-0H060×4i200703-201003

(L)

main23209-28080×4supersedes 23209-28080i200703-201003

(J)

main23209-0H030×4supersedes 23209-28080i201011-201204

2AZ-FE,(L),*195

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4supersedes 90301-07037i200703-201003

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28051i200703-200801

main23270-28052i200801-201003

main23270-28070supersedes 23270-28052i201112

2AZ-FE,*195

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037supersedes 90301-07037i200703-201003

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4supersedes 23291-41010i200703-201003

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28031i200703-201003

main23814-28060supersedes 23814-28031i201201

2AZ-FE,*195

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053×2supersedes 90561-08053i200703-201003

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i200703-201003

main23841-37090i201211-201512

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i200703-201003

23849ASUPPORT, FUEL PIPE

main23849-28080i200703-201003

23901TUBE SUB-ASSY, FUEL

main23901-28400i200703-201003

7701

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

9167281018

main91672-81018

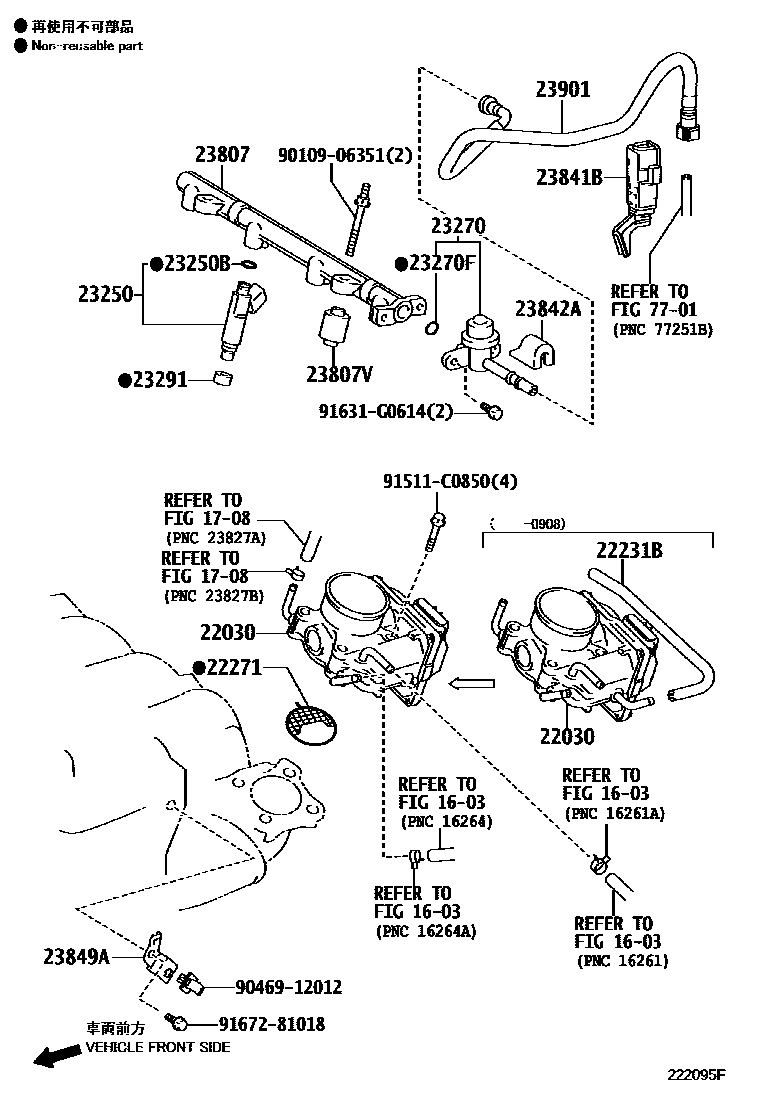

FUEL INJECTION SYSTEM
