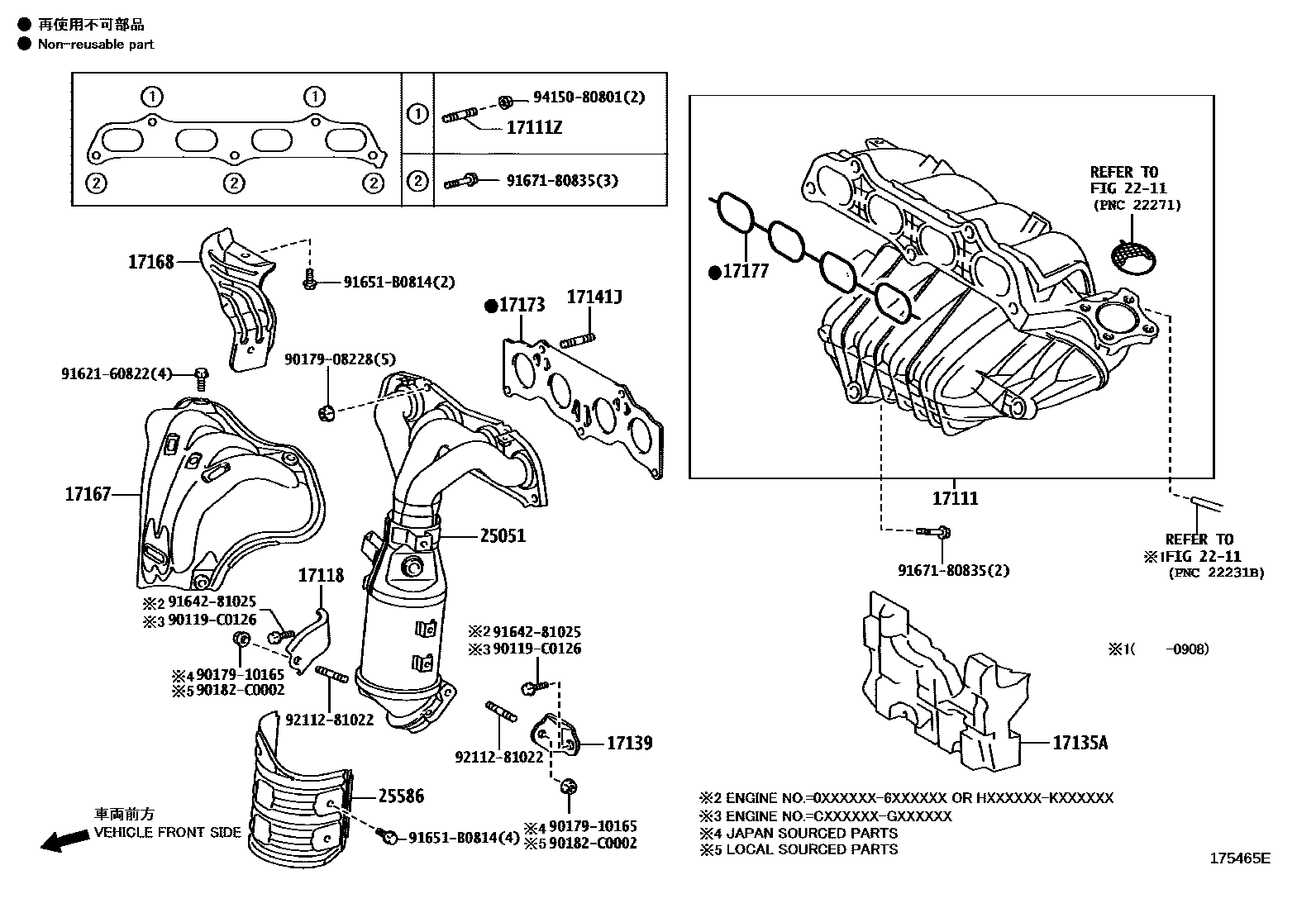

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
*194
2AZ-FE,*195
17118STAY, MANIFOLD
*194
2AZ-FE,*195
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17139STAY, MANIFOLD, NO.2
*194
2AZ-FE,*195
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
*194
2AZ-FE,*195
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(L),*194
(L)
2AZ-FE,*195
(J),*194
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
*194
2AZ-FE,*195
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(L),*194
2AZ-FE,*195
(J)
(J),*194
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*194
*114=TOYOTA/28340/Y,2AZ-FE,*195
25586INSULATOR, MANIFOLD CONVERTER, NO.1
*194
2AZ-FE,*195
90119C0126
main90119-C0126
9017908228
main90179-08228
9017910165
main90179-10165
90182C0002
main90182-C0002
9162160822
main91621-60822
9164281025
main91642-81025
91651B0814
main91651-B0814
9167180835
main91671-80835
9211281022
main92112-81022
9415080801
main94150-80801
23 parts on this diagram · 1 diagram in section
