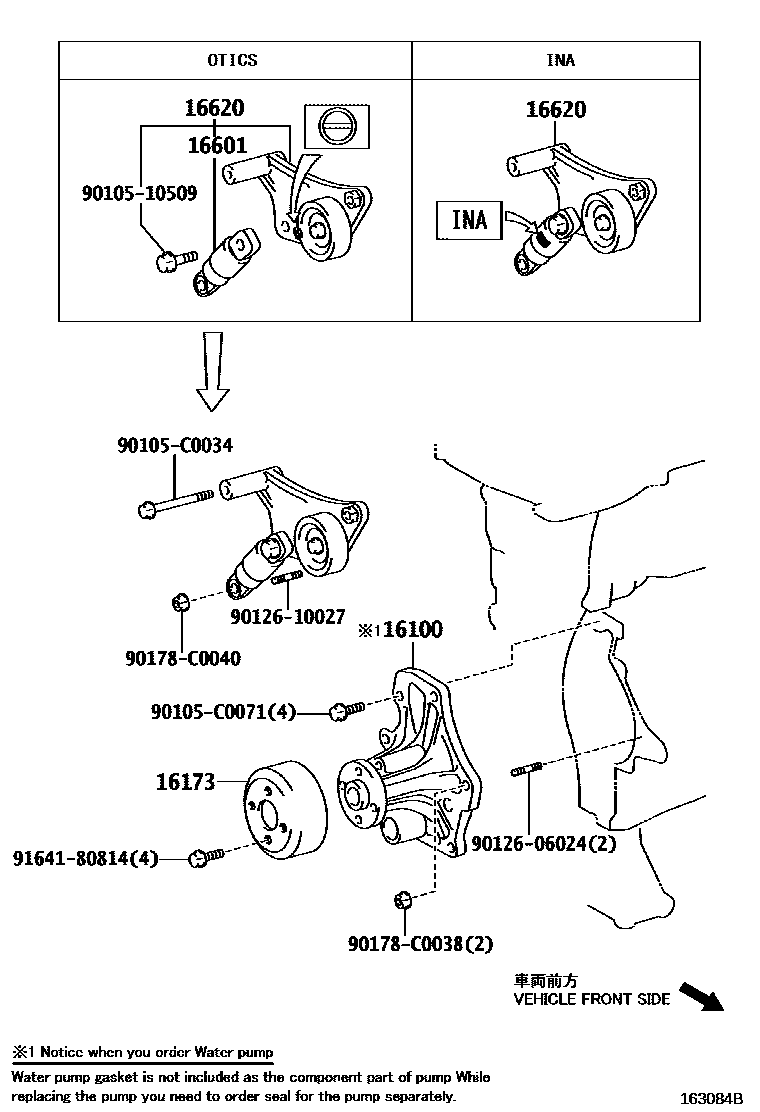

WATER PUMP

0001 1 0002 1*194 0003 1*195

16100PUMP ASSY, ENGINE WATER

main16100-0H040i2AZFE..AZE151200703-201003

sub16100-0H050

main16100-0H040i2AZFE..AZE151201003

*194

sub16100-0H050

16173PULLEY, WATER PUMP

main16173-0H040i2AZFE..AZE151200803-201003

main16173-0H040i2AZFE..AZE151201003

*194

main16173-28020i2AZFE..AZE151200703-200803

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28021i2AZFE..AZE151200703-200805

OTICS

sub16620-0H020

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0H020i2AZFE..AZE151201003-201301

*194

sub16620-0H021

main16620-0H020i2AZFE..AZE151200805-201003

sub16620-0H021

main16620-0H021i2AZFE..AZE151201301

2AZ-FE,*195

main16620-0H021i2AZFE..AZE151201301

*194

main16620-0H030i2AZFE..AZE151200703-200805

(L)

sub16620-0H020

main16620-28041i2AZFE..AZE151200703-200805

(J)

sub16620-0H020

9010510509

main90105-10509

90105C0034

main90105-C0034

90105C0071

main90105-C0071

9012606024

main90126-06024

9012610027

main90126-10027

90178C0038

main90178-C0038

90178C0040

main90178-C0040

9164180814

main91641-80814

12 parts on this diagram · 3 diagrams in section
