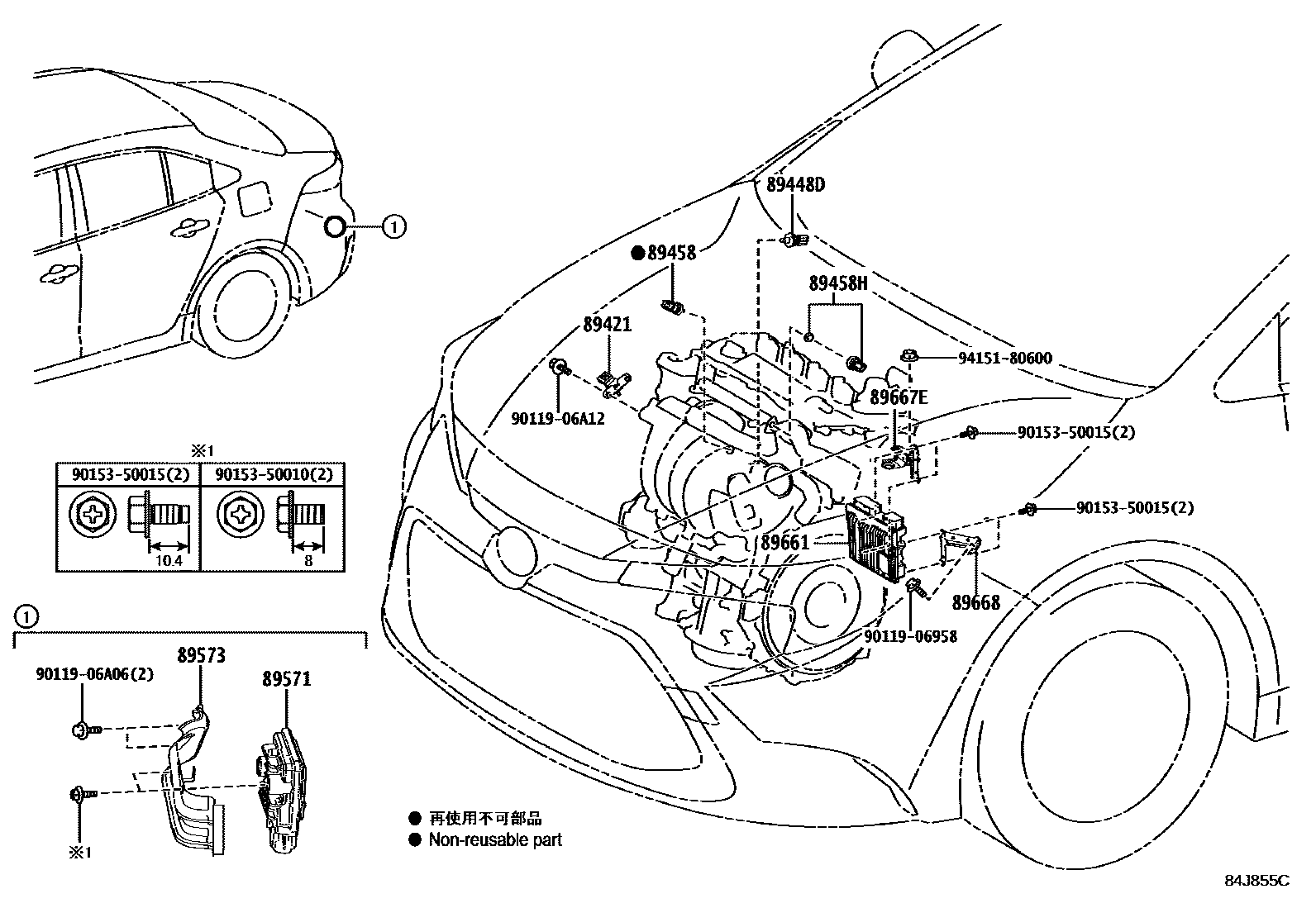

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZRE212,ZWE211201901-202409

main89421-33010iMZEA1#..L,S,Y201901-202409

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZEA1#..L,S,Y201901-202409

89458SENSOR, FUEL PRESSURE

main89458-33030iMZEA18..D201901-202409

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZEA1#201901-202303

main89458-33042iMZEA1#..L,S,Y202304-202409

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iMZEA12201901-202208

main89571-42010iMZEA1#..L,S,Y202209-202409

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-12120iMZEA1#..L,S,Y201901-202409

89661COMPUTER, ENGINE CONTROL

main89661-12X00iZWE211201901-202004

DENSO

sub89661-12X01

main89661-12X50iZRE212..CVT201901-201906

DENSO

sub89661-12X51

main89661-12X51iZRE212..CVT201907-202004

DENSO

sub89661-12X52

main89661-12X60iZRE212..6F201901-202004

DENSO

sub89661-12X61

main89661-12Y40iMZEA12..6F201901-202001

DENSO TEN

sub89661-12Y41

main89661-12Y41iMZEA12..6F202002-202004

DENSO TEN

main89661-12Y80iMZEA12..CVT201901-201906

DENSO TEN

sub89661-12Y81

main89661-12Y81iMZEA12..CVT201907-201908

DENSO TEN

sub89661-12Y82

main89661-12Y82iMZEA12..CVT201908-201912

DENSO TEN

sub89661-12Y83

main89661-12Y83iMZEA12..CVT202001-202004

DENSO TEN

main89661-1AB10iZWE211202004-202208

DENSO

main89661-1AB60iZRE212..CVT202004-202106

DENSO

main89661-1AB70iZRE212..6F202004-202106

DENSO

main89661-1AC50iZWE213202004-202208

DENSO

sub89661-1AC51

main89661-1AD00iMZEA12..CVT202004-202106

DENSO TEN

main89661-1AD10iMZEA12..6F202004-202106

DENSO TEN

main89661-1AE80iMZEA12202209-202308

DENSO,*614

main89661-1AF40iZWE21#202209-202409

DENSO,*614

main89661-1AG30iMZEA12..CVT202106-202208

DENSO TEN

main89661-1AG40iMZEA12..6F202106-202208

DENSO TEN

main89661-1AG50iMZEA1#..L,S,Y202409

DENSO,*614

main89661-1AJ00iZRE212..CVT202106-202208

DENSO

main89661-1AJ10iZRE212..6F202106-202208

DENSO

main89661-1AK00iMZEA18202209-202308

DENSO,*614

main89661-1AK20iMZEA1#..L,S,Y202308-202409

DENSO,*614

main89661-1AK30iZWE21#202409

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMZEA1#..L,S,Y201901-202409

main89667-12360iZRE212201901-202208

main89667-12370iZWE211201901-202208

main89667-47120iZWE21#202209-202409

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZEA18..D201901-202409

main89668-12290iZRE212201901-202208

main89668-47050iZWE21#201901-202208

main89668-47070iZWE21#202209-202409

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9415180600

main94151-80600

15 parts on this diagram · 4 diagrams in section
