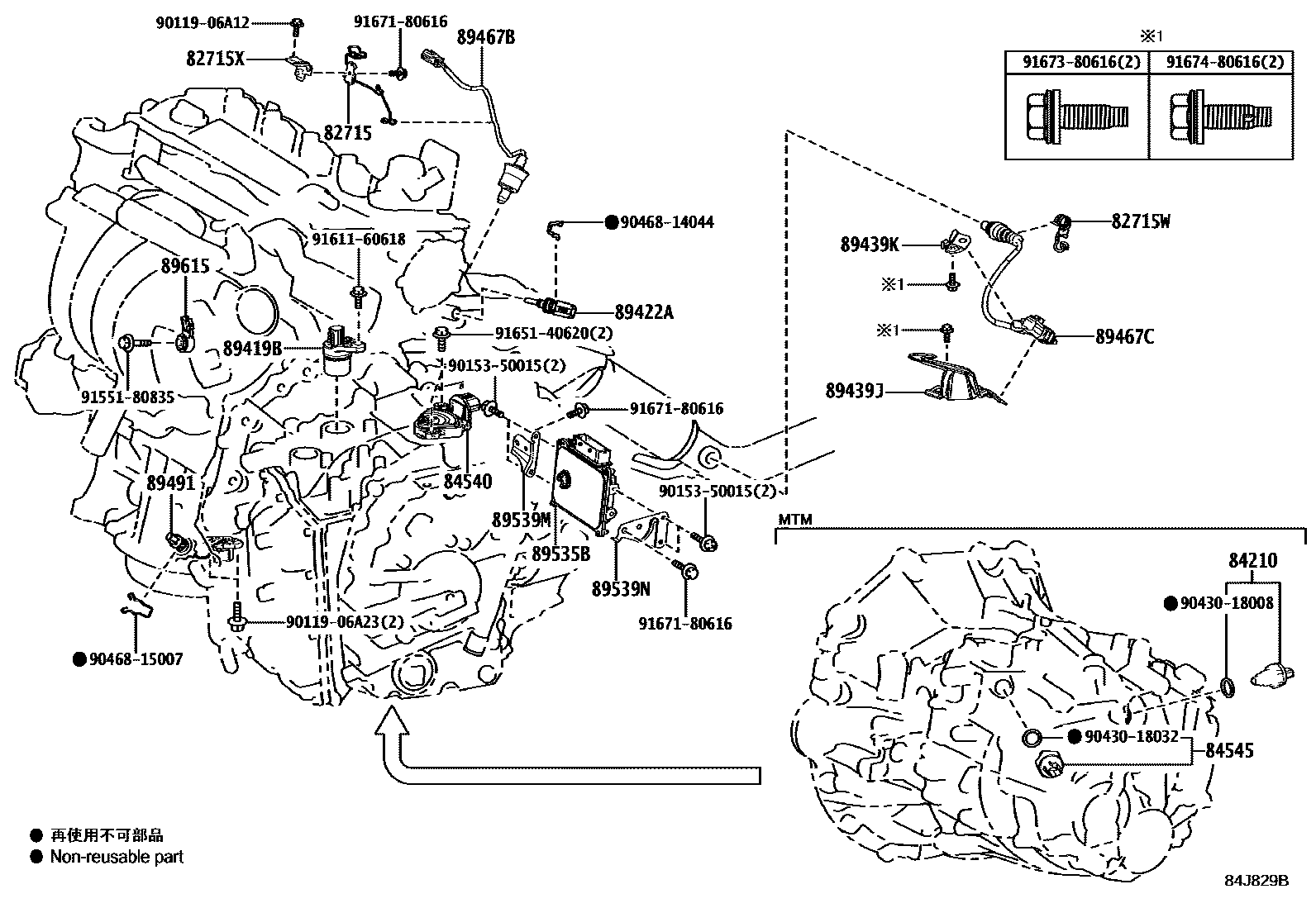

82715BRACKET,WIRING HARNESS CLAMP

main82715-10310iZWE21#¥770201901-202208

main82715-10410iZRE212201901-202208

main82715-12V90iMZEA18..D¥300201901-202409

main8946A-12030iZWE21#¥780202209-202409

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMZEA1#,ZWE21#..L,S,X,Y¥220201901-202409

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMZEA1#..L,S,Y¥260201901-202409

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iMZEA12,ZRE212..6F¥1,360201901-202208

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA1#¥7,600201901-202308

main84540-52070iZRE212..CVT¥7,600201901-202208

main89451-42010iMZEA1#..L,S,Y¥5,900202308-202409

84545SWITCH, NEUTRAL POSITION

main84545-52010iMZEA12,ZRE212..6F¥3,070201901-202208

89419BSENSOR, SHIFT STROKE

main89419-12010iMZEA12..CVT¥5,400201901-201904

sub89419-12011¥4,100

main89419-12011iMZEA12..CVT¥4,100201905-202308

main89419-12011iMZEA12..CVT¥4,100202106-202203

MARK=CS1

main89419-K2010iMZEA1#..L,S,Y¥4,100202106-202409

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA1#..L,S,Y¥2,410201901-202409

main89422-47010iZWE219¥2,410201901-202409

89439JBRACKET, SENSOR, NO.2

main82715-47A60iMZEA18..D¥900201901-202409

89439KBRACKET, SENSOR, NO.3

main82715-47690iMZEA1#,ZWE21#..L,S,X,Y¥260201901-202409

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZRE212¥9,900201901-202208

main89467-12280iMZEA12¥9,900201901-202308

main89467-12340iZWE21#¥9,900202209-202409

main89467-47030iZWE211¥9,900201901-202208

main89467-47040iMZEA1#..L,S,Y¥9,900202308-202409

89467CSENSOR, AIR FUEL RATIO, NO.2

main89465-47090iZWE21#¥6,400202209-202409

main89467-12290iMZEA12¥9,900201901-202308

main89467-12330iMZEA1#..L,S,Y202308-202409

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE21#¥3,670202104-202204

sub89491-28091¥3,330

main89491-28091iZWE21#¥3,330202205-202409

main89491-33051iMZEA12¥3,670201901-202204

sub89491-33052¥3,330

main89491-33052iMZEA1#¥3,330202205-202308

main89491-47011iZWE21#¥3,670201901-202103

sub89491-28090¥3,670

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-12040iMZEA12..CVT201901-201906

sub89535-12041

main89535-12041iMZEA12..CVT201907-202106

main89535-12230iMZEA12..Y202209-202308

*614

main89535-12240iMZEA1#..D,L,S202209-202308

*614

main89535-12360iMZEA12..CVT202106-202208

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZEA12..CVT¥230201901-202308

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZEA12..CVT¥230201901-202308

89615SENSOR, KNOCK CONTROL

main89615-20090iMZEA1#,ZWE21#..L,S,X,Y¥2,370201901-202208

9011906A12

main90119-06A12¥60

9011906A23

main90119-06A23¥60

9015350015

main90153-50015¥60

9043018008

main90430-18008¥110

9043018032

main90430-18032¥90

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9161160618

main91611-60618¥120

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

9167380616

main91673-80616¥60

9167480616

main91674-80616¥60
