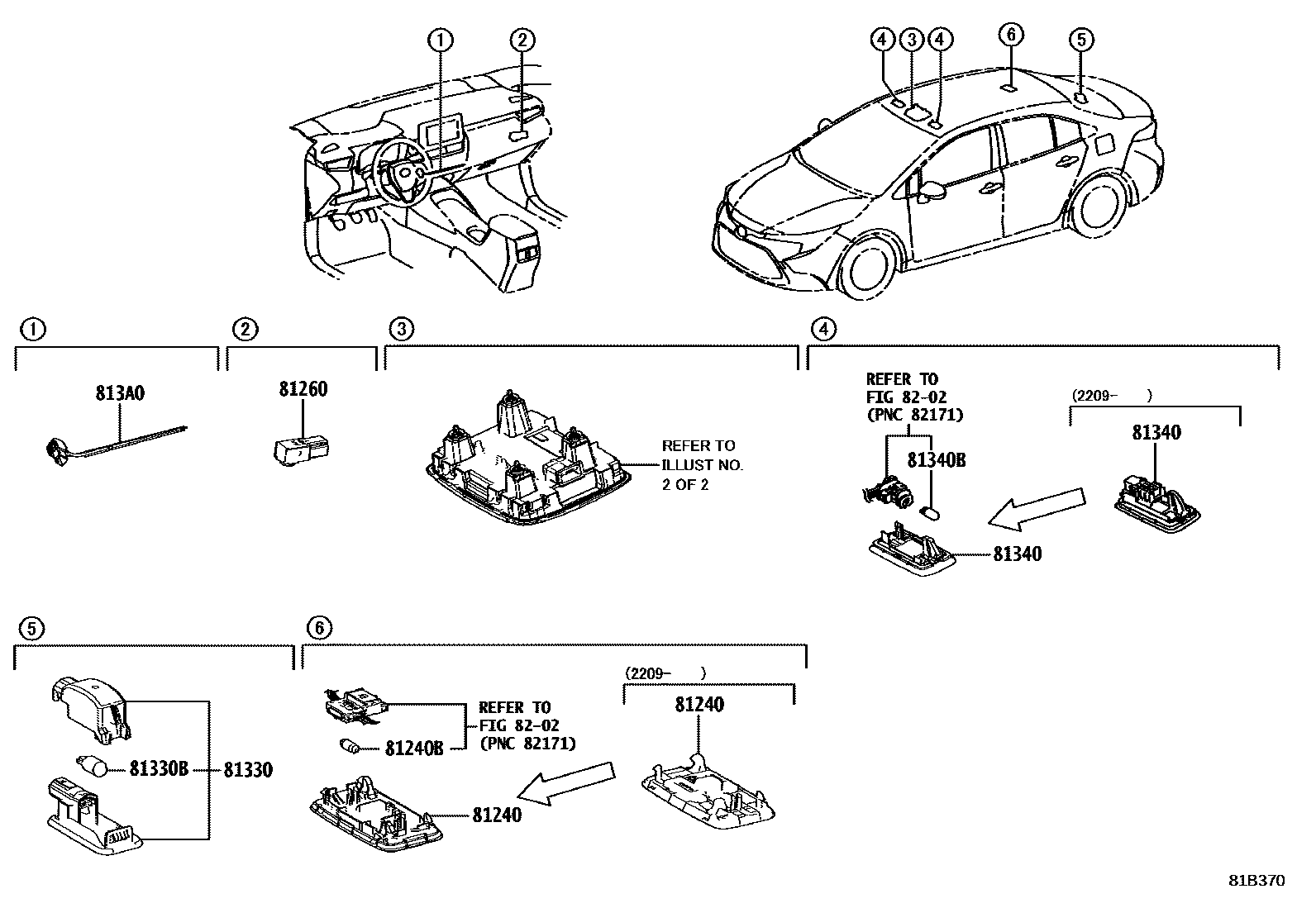

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
FROMAGE,TRIM0#,1#,2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,2#
BLACK,TRIM2#
FROMAGE,TRIM1#,2#
FROMAGE,TRIM0#,2#
FROMAGE,TRIM0#,1#,2#
BLACK,TRIM2#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
LE PACKAGE&MOON ROOF-WITH
81340BBULB (FOR VANITY LAMP)
12V 8W
813A0LAMP ASSY, INSTRUMENT PANEL
ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)
SEAT COVER MATERIAL-LEATHER
8202
9 parts on this diagram · 2 diagrams in section
