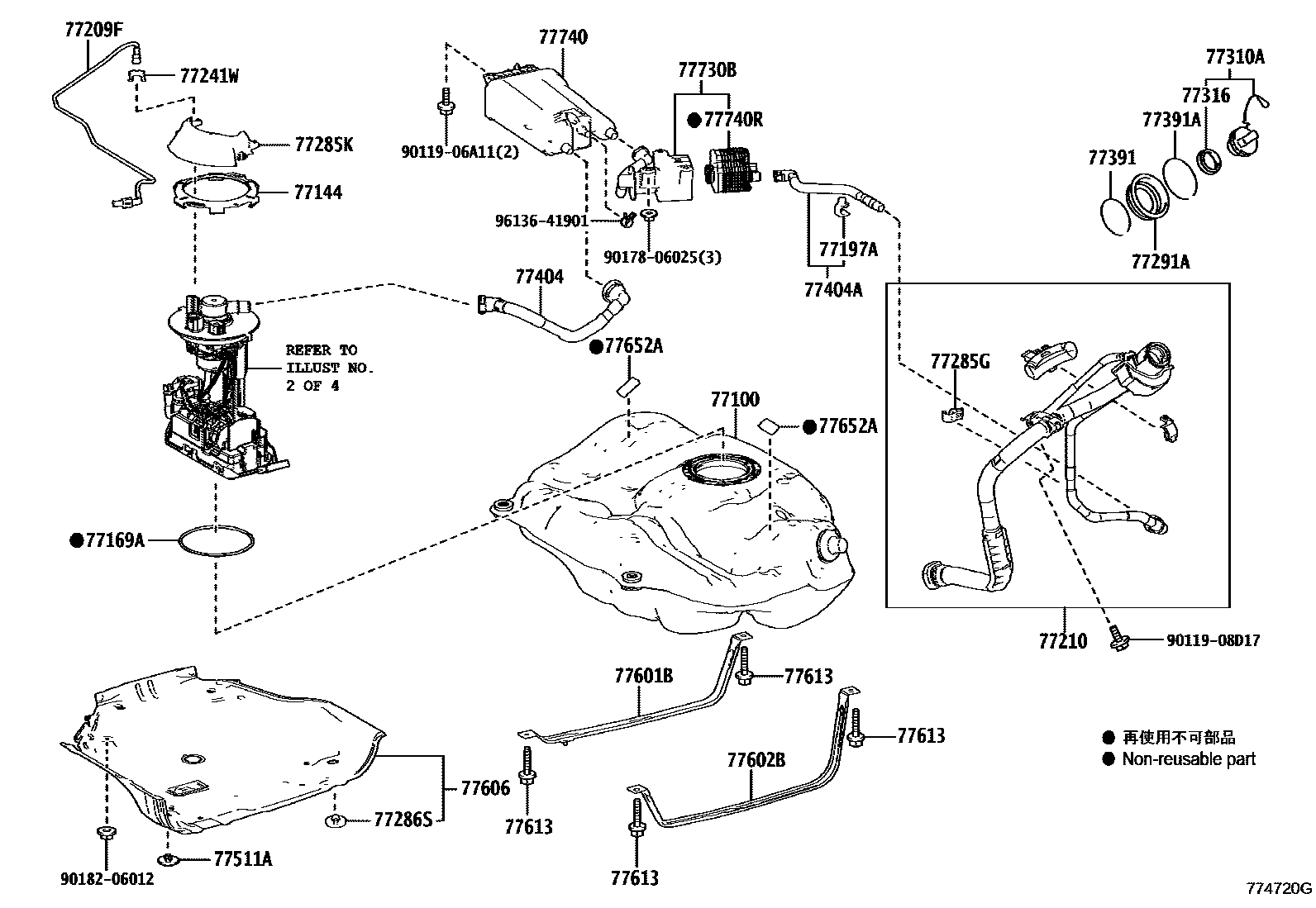

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL PUMP 0009 1FUEL PUMP 0010 1FUEL PUMP 0011 1FUEL PUMP 0012 1FUEL PUMP 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL TUBE 0017 1FUEL TUBE 0018 1FUEL TUBE 0019 1FUEL LID OPENER 0020 1FUEL LID OPENER:W(MOTOR)

77100TANK ASSY, FUEL

main77001-12D60iMZEA12,ZRE212201901-202208

main77001-12E90iMZEA18..L202209-202409

main77001-12F00iMZEA12202209-202409

main77001-12F20iZWE219202209-202308

sub77001-12F21

main77001-12F21iZWE219202309-202409

main77001-12F40iZWE215202209-202308

sub77001-12F41

main77001-12F41iZWE215202309-202409

main77001-47170iZWE211¥30,000201901-202208

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA18..D¥1,270201901-202409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iMZEA12,ZRE212,ZWE211¥700201901-202409

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47010iMZEA12,ZRE212,ZWE211¥380201901-202208

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12310iMZEA12201901-202409

main77209-12320iZRE212201901-202208

main77209-12340iZWE211201901-202409

main77209-12390iMZEA18..D202209-202409

main77209-76010iZWE215202209-202409

77210PIPE ASSY, FUEL TANK FILLER

main77210-12610iMZEA12,ZRE212,ZWE211201901-202001

sub77210-12611

main77210-12611iMZEA12,ZRE212,ZWE211202002-202208

77241WCLIP, TUBE JOINT

main77241-33011iMZEA12,ZRE212¥80201901-202108

main77241-60550iZWE21#¥50202109-202409

77285GCLAMP, FUEL TUBE, NO.1

main77285-47120iMZEA12,ZRE212,ZWE211¥350201901-202208

77285KCLAMP, FUEL TUBE, NO.1

main77285-10060iMZEA12,ZRE212¥1,670201901-202208

main77285-30350iZWE211¥200201901-202208

main77285-47120iMZEA18..D¥350202209-202409

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12,ZRE212¥200201901-202409

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-12250iMZEA12,ZRE212,ZWE211¥1,040201901-202409

77310ACAP ASSY, FUEL TANK

main77300-53030iMZEA1#..L,S,Y¥1,960201901-202409

main77300-53040iZWE211¥2,780201901-202409

77316GASKET, FUEL TANK CAP

main77316-75020iMZEA1#,ZWE21#..L,S,X,Y¥200201901-202409

77391RING, FUEL INLET BOX

main77391-12020iMZEA1#,ZWE21#..L,S,X,Y¥180201901-202409

77391ARING, FUEL INLET BOX

main77391-20040iMZEA1#,ZWE21#..L,S,X,Y¥190201901-202409

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-12090iZWE21#201901-202208

main77404-12210iMZEA12201901-202409

main77404-12260iZWE219202209-202409

main77404-12270iZWE215202209-202409

main77404-12290iMZEA18..D202209-202409

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-12100iZWE211201901-202409

main77404-12200iMZEA1#..L,S,Y201901-202409

main77404-12300iZWE215202209-202409

77511ABRACKET, FUEL TANK

main77512-35140iMZEA12,ZWE219¥230201901-202409

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-10080iMZEA12¥1,540201901-202409

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-10030iMZEA12,ZRE212¥1,540201901-202409

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-10060iMZEA12,ZRE212¥5,700201901-202409

main77606-47030iZWE211¥11,100201901-202208

77613BOLT, FUEL TANK BAND SET

main90119-10995iMZEA12¥190201901-202409

77652ACUSHION, FUEL TANK, NO.2

main77652-10070iMZEA12¥140201901-202409

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-12010iMZEA1#..L,S,Y201901-202409

77740CANISTER ASSY, CHARCOAL

main77740-12770iZWE211201901-202409

main77740-33220iMZEA1#..L,S,Y¥15,700201901-202409

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-14008iZWE219¥13,200201901-202409

(J)

main90910-14008iMZEA12,ZRE212,ZWE21#¥13,200202004-202208

main90910-AF006iMZEA12,ZRE212201901-202409

(L)

9011906A11

main90119-06A11¥60

9011908D17

main90119-08D17¥100

9017806025

main90178-06025¥80

9018206012

main90182-06012¥60

9613641901

main96136-41901¥120

31 parts on this diagram · 20 diagrams in section
