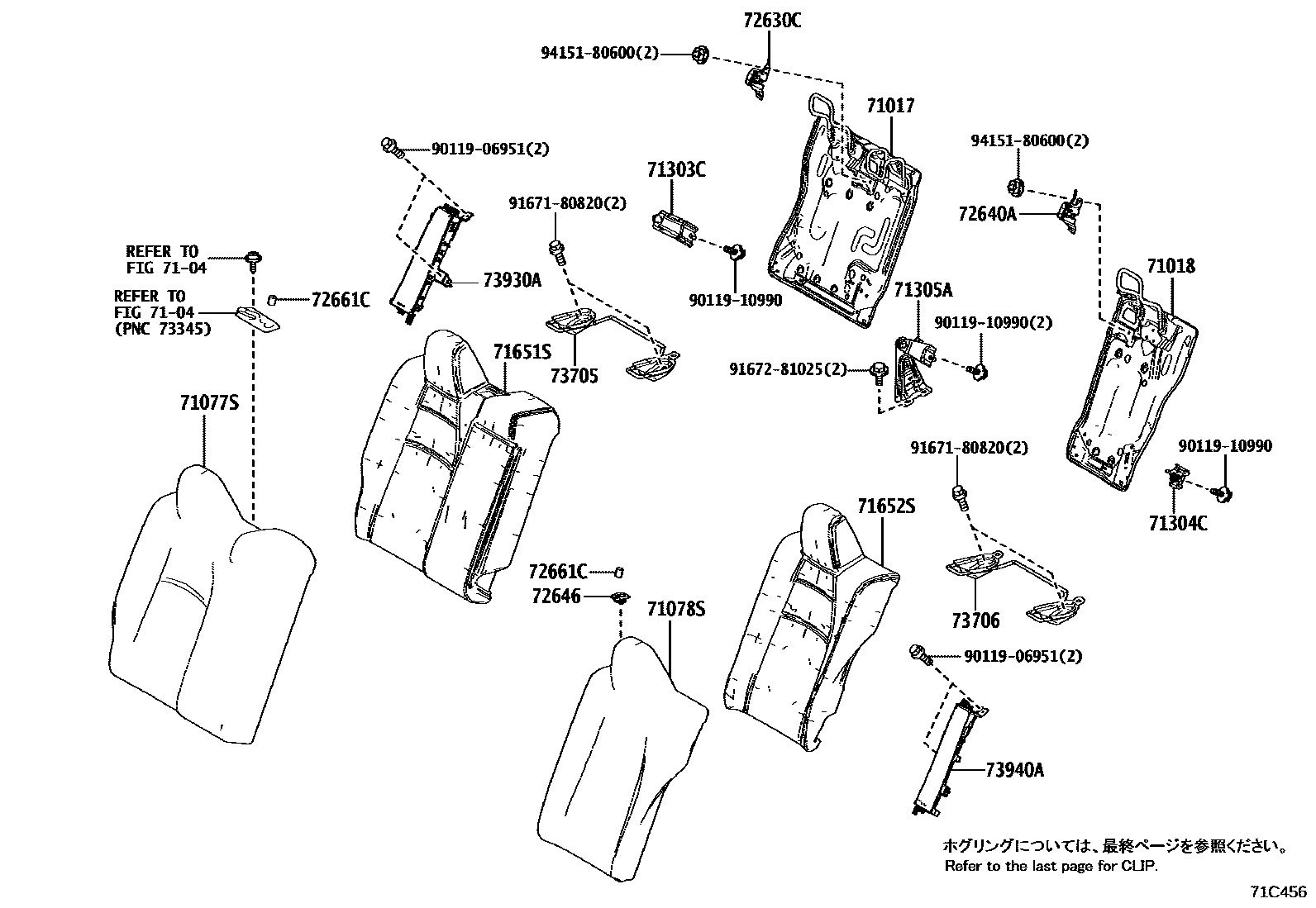

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
71018FRAME SUB-ASSY, REAR SEATBACK, LH
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
SE GRAY,TRIM23
BLACK,TRIM20,22
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71077-12U01
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21
LT.GRAY,TRIM1#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
SE GRAY,TRIM22,23
BLACK,TRIM26
SE GRAY,TRIM22,23
BLACK/RED,TRIM26
GRAY,TRIM1#
BALCK,TRIM2#
ORCHID BROWN,TRIM0#
BLACK/BLUE,TRIM21
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
BLACK/RED,TRIM26
BLACK/BLACK,TRIM20
PUERTO RICO SPEC,LT. GRAY,TRIM1#
PUERTO RICO SPEC,BLACK/GRAY DOT,TRIM2#
PUERTO RICO SPEC,LT. GRAY,TRIM1#
PUERTO RICO SPEC,BLACK/GRAY DOT,TRIM2#
PUERTO RICO SPEC,ORCHID BROWN,TRIM0#
PUERTO RICO SPEC,SE GRAY,TRIM22,23
PUERTO RICO SPEC,BLACK/RED,TRIM26
PUERTO RICO SPEC,BLACK/RED,TRIM26
PUERTO RICO SPEC,BLACK/BLACK,TRIM20
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM2#
SE GRAY,TRIM23
BLACK,TRIM20,22
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71078-12P61
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),ORCHID BROWN,TRIM0#
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER),BLACK/BLUE,TRIM21
GRAY,TRIM1#
BALCK,TRIM2#
ORCHID BROWN,TRIM0#
BLACK/BLUE,TRIM21
LT.GRAY,TRIM1#
BLACK,TRIM2#
ORCHID BROWN,TRIM0#
SE GRAY,TRIM22,23
BALCK,TRIM26
SE GRAY,TRIM22,23
BALCK/RED,TRIM26
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER,ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
BLACK/BLACK,TRIM20
BLACK/RED,TRIM26
PUERTO RICO SPEC,LT. GRAY,TRIM1#
PUERTO RICO SPEC,BLACK/GRAY DOT,TRIM2#
PUERTO RICO SPEC,ORCHID BROWN,TRIM0#
PUERTO RICO SPEC,SE GRAY,TRIM22,23
PUERTO RICO SPEC,BLACK,TRIM26
PUERTO RICO SPEC,BLACK/RED,TRIM26
PUERTO RICO SPEC,BLACK/BLACK,TRIM20
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
SEAT COVER MATERIAL-LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER& PASSENGER)
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72646GROMMET, REAR SEATBACK STOP BUTTON
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
72661CBUTTON, REAR SEATBACK LOCK RELEASE
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73930AAIRBAG ASSY, REAR SEAT, RH
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
73940AAIRBAG ASSY, REAR SEAT, LH
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
9011906951
main90119-06951
9011910990
main90119-10990
9167180820
main91671-80820
9167281025
main91672-81025
9415180600
main94151-80600
23 parts on this diagram · 7 diagrams in section
