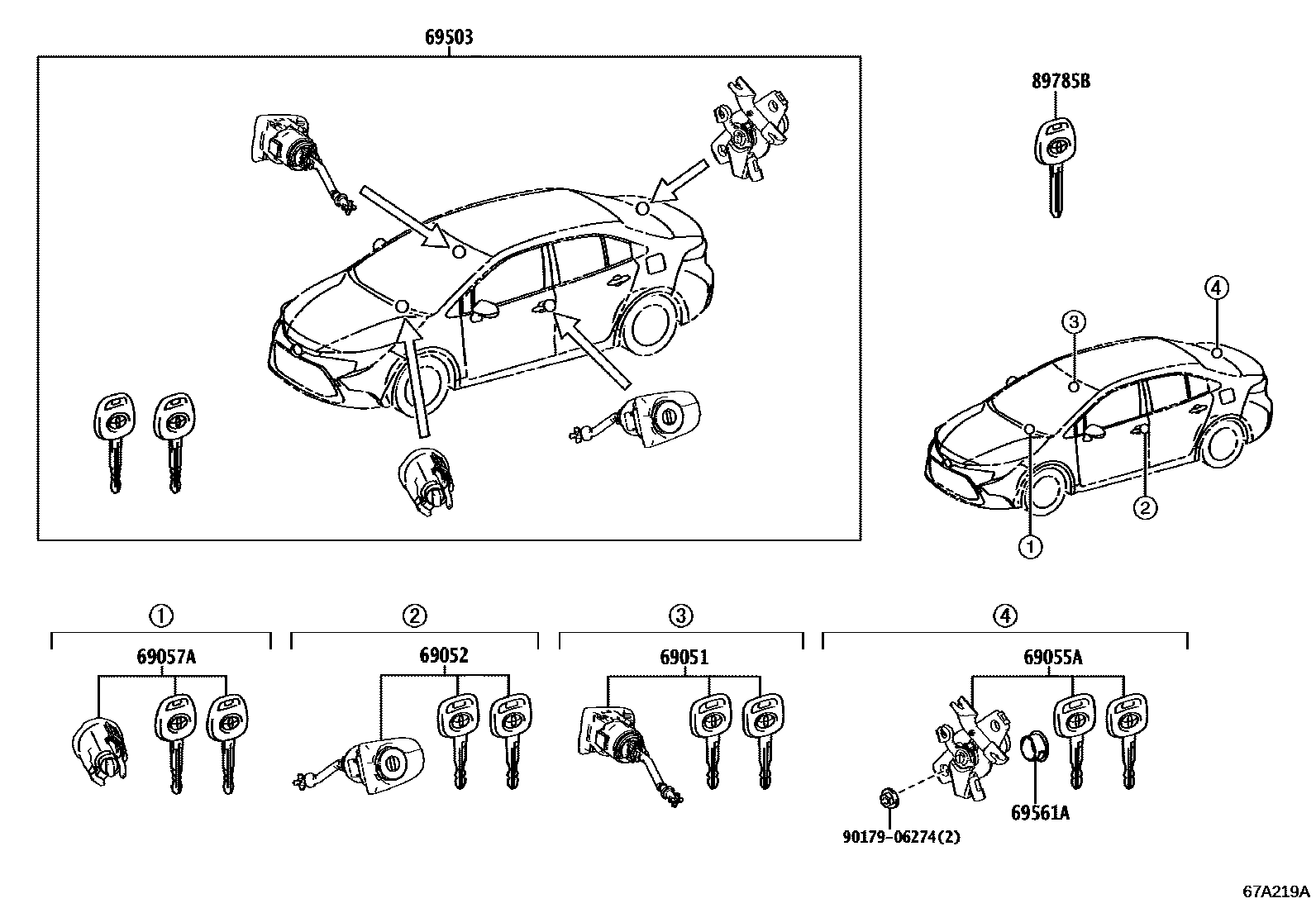

LOCK CYLINDER SET

0001 1WITHOUT(WIRELESS DOOR LOCK) 0002 1WITH(WIRELESS DOOR LOCK) 0003 1WITH(SMART ENTRY) 0004 1WITH (SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12800iMZEA18..D202209

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12680iMZEA18..D202209

main69052-12690supersedes 69052-12680iMZEA18,ZWE21#..L..USA202409

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12A70iZRE212..D201901-202004

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12A70iMZEA18..D202209

main69057-33410iZRE212..D201901-202001

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

main69057-K0020supersedes 69057-12A70iMZEA18,ZWE21#..L..USA202209-202409

69503CYLINDER SET, LOCK

main69005-12J20iZRE212..L202004-202208

WITH(SMART ENTRY & PANIC ALARM)

main69005-12J21iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM)

main69005-12J30iMZEA18..D202209

main89704-12F50supersedes 89704-12F50iZRE212..L202004-202208

WITH(SMART ENTRY & PANIC ALARM)

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-33900supersedes 69561-33900iMZEA18..D202209

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26040iMZEA18..D202209

main89785-28060supersedes 89785-26040iMZEA12..CVT..S201901-202004

SE PACKAGE1&WITH(SMART ENTRY & PANIC ALARM)

9017906274

main90179-06274

8 parts on this diagram · 4 diagrams in section
