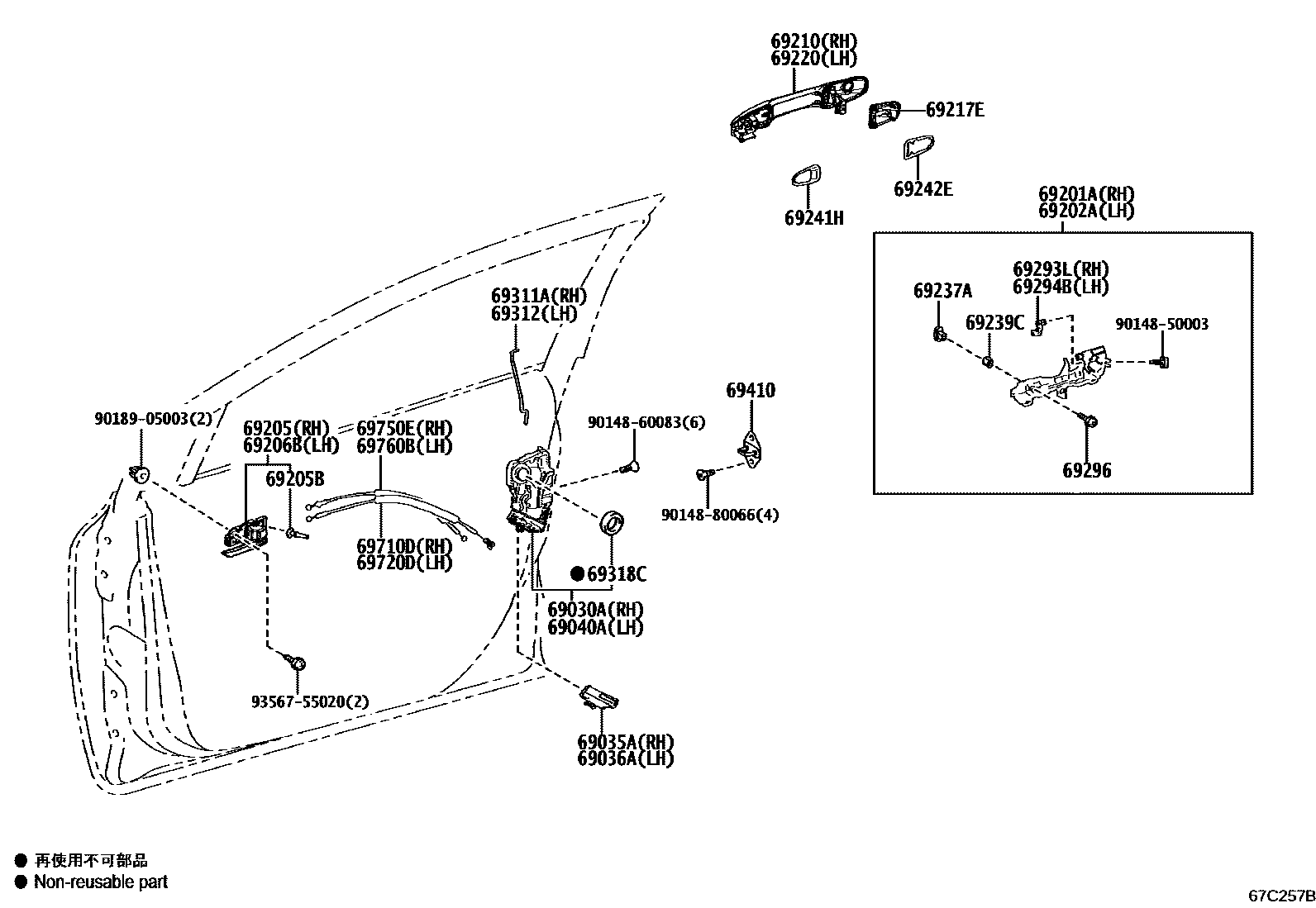

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-12550iMZEA18..D202209

main69030-12560iMZEA1#,ZWE21#..L,S,X,Y202209-202409

main69030-53120iMZEA12,ZRE212,ZWE211..L,S,X,Y201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

main69030-53120iMZEA12,ZRE212,ZWE21#..L,S,X,Y202004-202208

main69030-78030iZRE212..D201901-202208

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-28010iMZEA18..D202209-202409

main69035-30010iMZEA12,ZRE212,ZWE21#201901-202208

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-28010iMZEA18..D202209-202409

main69036-30010iMZEA12,ZRE212,ZWE211201901-202208

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12580iMZEA1#,ZWE21#..L,S,X,Y202209-202409

main69040-53130iMZEA12,ZRE212,ZWE211201901-202208

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-47070iMZEA18..D201901-202409

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-47040iMZEA12,ZRE212,ZWE21#201901-202409

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12250-A0iZWE219..X201901-202409

FROMAGE,TRIM0#

main69205-12250-B0iZRE212,ZWE21#..D,L201901-202106

LT.GRAY,TRIM1#

main69205-12250-B1iMZEA12..S201901-202004

COOL GRAY,TRIM1#,22,23

main69205-12250-B1iMZEA12..S202004-202208

COOL GRAY,TRIM22,23

main69205-12250-B1iMZEA12,ZWE21#..S202209-202409

COOL GRAY,TRIM23

main69205-12250-C0iMZEA12,ZWE21#..X,Y201901-202409

BLACK,TRIM2#

main69205-12250-C0iMZEA12,ZWE21#..S202209-202409

BLACK,TRIM22,26

main69205-12250-C0iMZEA12..S201901-202208

BLACK,TRIM20,21

main69205-12250-C0iMZEA12,ZWE21#..S..USA202209-202409

BLACK,TRIM20,22,26

main69205-15010-A1iMZEA18,ZWE21#..L..USA202209-202409

FROMAGE,TRIM0#

main69205-15010-A2iZRE212,ZWE21#..L202106-202208

FROMAGE,TRIM0#

main69205-15010-B1iZRE212,ZWE21#..D,L202106-202208

LT.GRAY,TRIM1#

main69205-15010-B4iMZEA18,ZWE21#..L202209-202409

LT.GRAY,TRIM1#

main69205-15010-C1iMZEA18..D202106-202409

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iMZEA18..D201901-202409

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12250-A0iZRE212..X201901-202409

FROMAGE,TRIM0#

main69206-12250-B0iZRE212,ZWE21#..D,L201901-202106

LT.GRAY,TRIM1#

main69206-12250-B1iMZEA12,ZWE21#..S202209-202409

COOL GRAY,TRIM23

main69206-12250-B1iMZEA12..S201901-202004

COOL GRAY,TRIM1#,22,23

main69206-12250-B1iMZEA12..S202004-202208

COOL GRAY,TRIM22,23

main69206-12250-C0iMZEA12,ZWE21#..S..USA202209-202409

BLACK,TRIM20,22,26

main69206-12250-C0iMZEA12,ZWE21#..S202209-202409

BLACK,TRIM22,26

main69206-12250-C0iMZEA12,ZWE21#..S201901-202409

BLACK,TRIM2#

main69206-12250-C0iMZEA12..S201901-202208

BLACK,TRIM20,21

main69206-15010-A1iMZEA18,ZWE21#..L..USA202209-202409

FROMAGE,TRIM0#

main69206-15010-A2iZRE212,ZWE21#..L202106-202208

FROMAGE,TRIM0#

main69206-15010-B1iZRE212,ZWE21#..D,L202106-202208

LT.GRAY,TRIM1#

main69206-15010-B4iMZEA18,ZWE21#..L202209-202409

LT.GRAY,TRIM1#

main69206-15010-C1iZRE212,ZWE21#..D,L202106-202409

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-47051-A0iZRE212..L201901-202208

WITH(SMART ENTRY & PANIC ALARM),SUPER WHITE 2,040

main69210-47051-A0iMZEA12..CVT..S201901-202208

SUPER WHITE 2,040

main69210-47051-A0iMZEA12..CVT..S201901-202208

LE PACKAGE,SUPER WHITE 2,040

main69210-47051-A0iMZEA12..CVT..S201909-202208

LE PACKAGE2,SUPER WHITE 2,040

main69210-47051-A1iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

WITH(SMART ENTRY & PANIC ALARM),WHITE PEARL CS.,070

main69210-47051-A1iZRE212..L201909-202106

LE PACKAGE2,WHITE PEARL CS.,070

main69210-47051-A1iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

LE PACKAGE,WHITE PEARL CS.,070

main69210-47051-A1iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

WHITE PEARL CS.,070

main69210-47051-A2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y202106-202208

LE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iMZEA12..CVT..S202106-202208

WITH(SMART ENTRY & PANIC ALARM),PLATINUM WHITE PEARL MC.,089

main69210-47051-A2iMZEA12..CVT..S202106-202208

LE PACKAGE2,PLATINUM WHITE PEARL MC.,089

main69210-47051-B0iZRE212..L201909-202208

LE PACKAGE2,SILVER ME.,1F7

main69210-47051-B0iZRE212..L201901-202208

LE PACKAGE,SILVER ME.,1F7

main69210-47051-B0iZRE212..L201901-202208

SILVER ME.,1F7

main69210-47051-B0iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

WITH(SMART ENTRY & PANIC ALARM),SILVER ME.,1F7

main69210-47051-B4iZRE212..L201901-202208

LE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-47051-B4iZRE212..L201901-202208

CELESTITE GRAY ME.,1K3

main69210-47051-B4iZRE212..L201901-202208

WITH(SMART ENTRY & PANIC ALARM),CELESTITE GRAY ME.,1K3

main69210-47051-B4iZRE212..L201909-202208

LE PACKAGE2,CELESTITE GRAY ME.,1K3

main69210-47051-C2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

BLACK MC.,209

main69210-47051-C2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201909-202208

LE PACKAGE2,BLACK MC.,209

main69210-47051-C2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

WITH(SMART ENTRY & PANIC ALARM),BLACK MC.,209

main69210-47051-C2iZRE212..L201901-202208

LE PACKAGE,BLACK MC.,209

main69210-47051-D1iZRE212..L202106-202208

RED MC.,3T3

main69210-47051-D1iZRE212..L202106-202208

LE PACKAGE,RED MC.,3T3

main69210-47051-D1iZRE212..L202106-202208

LE PACKAGE2,RED MC.,3T3

main69210-47051-D1iZRE212..L202106-202208

WITH(SMART ENTRY & PANIC ALARM),RED MC.,3T3

main69210-47051-D2iZRE212..L201909-202106

LE PACKAGE2,RED M.M.,3R3

main69210-47051-D2iZRE212..L201901-202106

WITH(SMART ENTRY & PANIC ALARM),RED M.M.,3R3

main69210-47051-D2iMZEA12..CVT..S201901-202106

RED M.M.,3R3

main69210-47051-D2iMZEA12..CVT..S201901-202106

LE PACKAGE,RED M.M.,3R3

main69210-47051-D3iZRE212..L201909-202004

LE PACKAGE2,SCARLET ME.,3U4

main69210-47051-D3iZRE212..L201901-202004

WITH(SMART ENTRY & PANIC ALARM),SCARLET ME.,3U4

main69210-47051-D3iZRE212..L201901-202004

SCARLET ME.,3U4

main69210-47051-D3iZRE212..L201901-202004

LE PACKAGE,SCARLET ME.,3U4

main69210-47051-J0iMZEA12..Y;MZEA12..6F201901-202208

WITH(SMART ENTRY & PANIC ALARM),DK.BLUE M.M.,8W7

main69210-47051-J0iMZEA12..CVT..S201901-202208

DK.BLUE M.M.,8W7

main69210-47051-J4iZRE212..L201901-202208

WITH(SMART ENTRY & PANIC ALARM),DK. BLUE MC.,8X8

main69210-47051-J4iZRE212..L201909-202208

LE PACKAGE2,DK. BLUE MC.,8X8

main69210-47051-J4iZRE212..L201901-202208

LE PACKAGE,DK. BLUE MC.,8X8

main69210-47051-J4iZRE212..L201901-202208

DK. BLUE MC.,8X8

main69210-K0020-A0iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

SUPER WHITE 2,040

main69210-K0020-A0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,SUPER WHITE 2,040

main69210-K0020-A0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,SUPER WHITE 2,040

main69210-K0020-A0iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,SUPER WHITE 2,040

main69210-K0020-A3iMZEA18,ZWE21#..L..USA202209-202409

PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-K0020-A3iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,PLATINUM WHITE PEARL MC.,089

main69210-K0020-B0iMZEA18,ZWE21#..L..USA202209-202409

SILVER ME.,1F7

main69210-K0020-B0iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,SILVER ME.,1F7

main69210-K0020-B0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,SILVER ME.,1F7

main69210-K0020-B0iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,SILVER ME.,1F7

main69210-K0020-B2iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-K0020-B2iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,CELESTITE GRAY ME.,1K3

main69210-K0020-B2iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

CELESTITE GRAY ME.,1K3

main69210-K0020-B2iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,CELESTITE GRAY ME.,1K3

main69210-K0020-C3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE,ATTITUDE BLACK MC.,218

main69210-K0020-C3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

ATTITUDE BLACK MC.,218

main69210-K0020-C3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,ATTITUDE BLACK MC.,218

main69210-K0020-C3iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,ATTITUDE BLACK MC.,218

main69210-K0020-D1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,RED MC.,3T3

main69210-K0020-D1iMZEA18,ZWE21#..L..USA202209-202409

RED MC.,3T3

main69210-K0020-D1iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,RED MC.,3T3

main69210-K0020-D1iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,RED MC.,3T3

main69210-K0020-J3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE,DK. BLUE MC.,8X8

main69210-K0020-J3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

DK. BLUE MC.,8X8

main69210-K0020-J3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202409

LE PACKAGE 2,DK. BLUE MC.,8X8

main69210-K0020-J3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,DK. BLUE MC.,8X8

main69210-K0020-P1iMZEA18,ZWE21#..L..USA202209-202409

DK.GRAY,1L7

main69210-K0020-P1iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,DK.GRAY,1L7

main69210-K0020-P1iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,DK.GRAY,1L7

main69210-K0020-P1iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,DK.GRAY,1L7

main69211-33120-A0iMZEA18..D201901-202208

SUPER WHITE 2,040

main69211-33120-B0iZRE212..D201901-202208

SILVER ME.,1F7

main69211-33120-B3iZRE212..D201901-202208

CELESTITE GRAY ME.,1K3

main69211-33120-C0iMZEA18..D202209

ATTITUDE BLACK MC.,218

main69211-33120-C2iZRE212..D201901-202208

BLACK MC.,209

main69211-33120-D3iMZEA18..D202106-202208

RED MC.,3T3

main69211-33120-J3iZRE212..D202106-202208

DK. BLUE MC.,8X8

main69211-47021-A0iMZEA12,ZRE212..CVT..(L,S)201901-202409

SUPER WHITE 2,040

main69211-47021-A0iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SUPER WHITE 2,040

main69211-47021-A1iMZEA12,ZRE212..CVT..(L,S)201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),WHITE PEARL CS.,070

main69211-47021-A1iMZEA12..6F201901-202106

WHITE PEARL CS.,070

main69211-47021-A2iMZEA18,ZWE21#..L..USA202106-202409

PLATINUM WHITE PEARL MC.,089

main69211-47021-B0iZRE212..D;MZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SILVER ME.,1F7

main69211-47021-B0iMZEA18,ZWE21#..L..USA201901-202409

SILVER ME.,1F7

main69211-47021-B5iZRE212..D;MZEA12..6F201901-202409

CELESTITE GRAY ME.,1K3

main69211-47021-B5iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),CELESTITE GRAY ME.,1K3

main69211-47021-C0iMZEA18,ZWE21#..L..USA202209-202409

ATTITUDE BLACK MC.,218

main69211-47021-C2iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),BLACK MC.,209

main69211-47021-C2iZRE212..D;MZEA12..6F201901-202208

BLACK MC.,209

main69211-47021-D1iMZEA12,ZRE212..CVT..(L,S)202106-202409

RED MC.,3T3

main69211-47021-D2iMZEA12,ZRE212..CVT..(L,S)201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),RED M.M.,3R3

main69211-47021-D2iMZEA12,ZRE212..CVT..(L,S)201901-202106

RED M.M.,3R3

main69211-47021-D3iMZEA12,ZRE212..CVT..(L,S)201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SCARLET ME.,3U4

main69211-47021-D3iMZEA12..6F201901-202004

SCARLET ME.,3U4

main69211-47021-J0iMZEA12..CVT..S201901-202208

DK.BLUE M.M.,8W7

main69211-47021-J0iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),DK.BLUE M.M.,8W7

main69211-47021-J5iMZEA12..6F201901-202409

DK. BLUE MC.,8X8

main69211-47021-J5iMZEA12,ZRE212..CVT..(L,S)201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),DK. BLUE MC.,8X8

main69211-47021-P4iMZEA18,ZWE21#..L..USA202209-202409

DK.GRAY,1L7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-47020iZRE212..D201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

main69217-47020iMZEA12,ZRE212,ZWE21#..L,S,X,Y202004-202409

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-47041-A0iZRE212..L201901-202208

LE PACKAGE,SUPER WHITE 2,040

main69210-47041-A0iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

WITH(SMART ENTRY & PANIC ALARM),SUPER WHITE 2,040

main69210-47041-A0iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

SUPER WHITE 2,040

main69210-47041-A0iZRE212..L201909-202208

LE PACKAGE2,SUPER WHITE 2,040

main69210-47041-A1iZRE212..L201901-202106

WITH(SMART ENTRY & PANIC ALARM),WHITE PEARL CS.,070

main69210-47041-A1iMZEA12..CVT..S201901-202106

LE PACKAGE,WHITE PEARL CS.,070

main69210-47041-A1iMZEA12..CVT..S201909-202106

LE PACKAGE2,WHITE PEARL CS.,070

main69210-47041-A1iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

WHITE PEARL CS.,070

main69210-47041-A2iMZEA12..CVT..S202106-202208

LE PACKAGE2,PLATINUM WHITE PEARL MC.,089

main69210-47041-A2iMZEA12..CVT..S202106-202208

WITH(SMART ENTRY & PANIC ALARM),PLATINUM WHITE PEARL MC.,089

main69210-47041-A2iMZEA12..CVT..S202106-202208

PLATINUM WHITE PEARL MC.,089

main69210-47041-A2iMZEA12..CVT..S202106-202208

LE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-47041-B0iMZEA12..CVT..S201901-202208

LE PACKAGE,SILVER ME.,1F7

main69210-47041-B0iMZEA12..CVT..S201901-202208

WITH(SMART ENTRY & PANIC ALARM),SILVER ME.,1F7

main69210-47041-B0iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

SILVER ME.,1F7

main69210-47041-B0iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201909-202208

LE PACKAGE2,SILVER ME.,1F7

main69210-47041-B4iMZEA12..CVT..S201901-202208

WITH(SMART ENTRY & PANIC ALARM),CELESTITE GRAY ME.,1K3

main69210-47041-B4iMZEA12..CVT..S201909-202208

LE PACKAGE2,CELESTITE GRAY ME.,1K3

main69210-47041-B4iMZEA12..CVT..S201901-202208

LE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-47041-B4iMZEA12..CVT..S201901-202208

CELESTITE GRAY ME.,1K3

main69210-47041-C2iZRE212..L201901-202208

WITH(SMART ENTRY & PANIC ALARM),BLACK MC.,209

main69210-47041-C2iZRE212..L201909-202208

LE PACKAGE2,BLACK MC.,209

main69210-47041-C2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

BLACK MC.,209

main69210-47041-C2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202208

LE PACKAGE,BLACK MC.,209

main69210-47041-D1iZRE212..L202106-202208

LE PACKAGE,RED MC.,3T3

main69210-47041-D1iZRE212..L202106-202208

RED MC.,3T3

main69210-47041-D1iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y202106-202208

WITH(SMART ENTRY & PANIC ALARM),RED MC.,3T3

main69210-47041-D1iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y202106-202208

LE PACKAGE2,RED MC.,3T3

main69210-47041-D2iZWE21#;MZEA12..6F;MZEA12,ZRE212..X,Y201909-202106

LE PACKAGE2,RED M.M.,3R3

main69210-47041-D2iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

RED M.M.,3R3

main69210-47041-D2iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

LE PACKAGE,RED M.M.,3R3

main69210-47041-D2iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202106

WITH(SMART ENTRY & PANIC ALARM),RED M.M.,3R3

main69210-47041-D3iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202004

LE PACKAGE,SCARLET ME.,3U4

main69210-47041-D3iZWE211;MZEA12..6F;MZEA12,ZRE212..X,Y201901-202004

WITH(SMART ENTRY & PANIC ALARM),SCARLET ME.,3U4

main69210-47041-D3iZRE212..L201901-202004

SCARLET ME.,3U4

main69210-47041-D3iZRE212..L201909-202004

LE PACKAGE2,SCARLET ME.,3U4

main69210-47041-J0iMZEA12..CVT..S201901-202208

WITH(SMART ENTRY & PANIC ALARM),DK.BLUE M.M.,8W7

main69210-47041-J0iMZEA12..Y;MZEA12..6F201901-202208

DK.BLUE M.M.,8W7

main69210-47041-J4iZRE212..L201901-202208

LE PACKAGE,DK. BLUE MC.,8X8

main69210-47041-J4iZRE212..L201909-202208

LE PACKAGE2,DK. BLUE MC.,8X8

main69210-47041-J4iMZEA12..CVT..S201901-202208

WITH(SMART ENTRY & PANIC ALARM),DK. BLUE MC.,8X8

main69210-47041-J4iMZEA12..CVT..S201901-202208

DK. BLUE MC.,8X8

main69210-K0010-A0iMZEA18,ZWE21#..L..USA202209-202409

SUPER WHITE 2,040

main69210-K0010-A0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,SUPER WHITE 2,040

main69210-K0010-A0iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,SUPER WHITE 2,040

main69210-K0010-A0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,SUPER WHITE 2,040

main69210-K0010-A3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,PLATINUM WHITE PEARL MC.,089

main69210-K0010-A3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,PLATINUM WHITE PEARL MC.,089

main69210-K0010-A3iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,PLATINUM WHITE PEARL MC.,089

main69210-K0010-A3iMZEA18,ZWE21#..L..USA202209-202409

PLATINUM WHITE PEARL MC.,089

main69210-K0010-B0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,SILVER ME.,1F7

main69210-K0010-B0iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,SILVER ME.,1F7

main69210-K0010-B0iMZEA18,ZWE21#..L..USA202209-202409

SILVER ME.,1F7

main69210-K0010-B0iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,SILVER ME.,1F7

main69210-K0010-B2iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,CELESTITE GRAY ME.,1K3

main69210-K0010-B2iMZEA18,ZWE21#..L..USA202209-202409

CELESTITE GRAY ME.,1K3

main69210-K0010-B2iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,CELESTITE GRAY ME.,1K3

main69210-K0010-B2iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,CELESTITE GRAY ME.,1K3

main69210-K0010-C3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,ATTITUDE BLACK MC.,218

main69210-K0010-C3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

ATTITUDE BLACK MC.,218

main69210-K0010-C3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,ATTITUDE BLACK MC.,218

main69210-K0010-C3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202409

LE PACKAGE 2,ATTITUDE BLACK MC.,218

main69210-K0010-D1iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE2,RED MC.,3T3

main69210-K0010-D1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE,RED MC.,3T3

main69210-K0010-D1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

RED MC.,3T3

main69210-K0010-D1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202409

LE PACKAGE 2,RED MC.,3T3

main69210-K0010-J3iMZEA18,ZWE21#..L..USA202209-202409

LE PACKAGE,DK. BLUE MC.,8X8

main69210-K0010-J3iMZEA18,ZWE21#..L..USA202209-202409

DK. BLUE MC.,8X8

main69210-K0010-J3iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,DK. BLUE MC.,8X8

main69210-K0010-J3iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,DK. BLUE MC.,8X8

main69210-K0010-P1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE,DK.GRAY,1L7

main69210-K0010-P1iMZEA18,ZWE21#..L..USA202409

LE PACKAGE 2,DK.GRAY,1L7

main69210-K0010-P1iMZEA18,ZWE21#..L..USA202209-202409

DK.GRAY,1L7

main69210-K0010-P1iZWE21#..L..CND;MZEA12,ZWE21#..S,X,Y202209-202409

LE PACKAGE2,DK.GRAY,1L7

main69211-33120-A0iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SUPER WHITE 2,040

main69211-33120-A0iMZEA12..6F201901-202409

SUPER WHITE 2,040

main69211-33120-A1iMZEA18,ZWE21#..L..USA202106-202409

PLATINUM WHITE PEARL MC.,089

main69211-33120-A3iMZEA12..6F201901-202106

WHITE PEARL CS.,070

main69211-33120-A3iMZEA12,ZRE212..CVT..(L,S)201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),WHITE PEARL CS.,070

main69211-33120-B0iMZEA12..6F201901-202409

SILVER ME.,1F7

main69211-33120-B0iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SILVER ME.,1F7

main69211-33120-B3iMZEA18,ZWE21#..L..USA201901-202409

CELESTITE GRAY ME.,1K3

main69211-33120-B3iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),CELESTITE GRAY ME.,1K3

main69211-33120-C0iMZEA18,ZWE21#..L..USA202209-202409

ATTITUDE BLACK MC.,218

main69211-33120-C2iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),BLACK MC.,209

main69211-33120-C2iMZEA12..6F201901-202208

BLACK MC.,209

main69211-33120-D1iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),RED M.M.,3R3

main69211-33120-D1iMZEA12,ZRE212..CVT..(L,S)201901-202106

RED M.M.,3R3

main69211-33120-D2iMZEA12..6F201901-202004

SCARLET ME.,3U4

main69211-33120-D2iMZEA12..6F201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM),SCARLET ME.,3U4

main69211-33120-D3iMZEA18..D202106-202409

RED MC.,3T3

main69211-33120-J1iMZEA12..6F201901-202208

DK.BLUE M.M.,8W7

main69211-33120-J1iMZEA12..6F201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),DK.BLUE M.M.,8W7

main69211-33120-J3iZRE212..D201901-202409

DK. BLUE MC.,8X8

main69211-33120-J3iMZEA12,ZRE212..CVT..(L,S)201901-202106

WITH(WIRELESS DOOR LOCK & PANIC ALARM),DK. BLUE MC.,8X8

main69211-33120-P0iMZEA18,ZWE21#..L..USA202209-202409

DK.GRAY,1L7

69237ANUT, FRONT DOOR HANDLE

main69237-62010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-47020iMZEA1#,ZWE21#..L,S,X,Y201901-202409

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47030iMZEA12,ZRE212,ZWE211201901-202409

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iMZEA12,ZRE212,ZWE211201901-202409

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iMZEA12,ZRE212,ZWE21#201901-202409

69296SCREW, DOOR INSIDE HANDLE

main69296-30010iMZEA12,ZRE212,ZWE211201901-202208

main90148-50006iMZEA1#,ZWE21#..L,S,X,Y202209-202409

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12220iMZEA12,ZRE212,ZWE211201901-202409

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12220iMZEA12,ZRE212,ZWE21#201901-202409

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iMZEA1#,ZWE21#..L,S,X,Y201901-202409

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-12190iMZEA12,ZRE212,ZWE21#201901-202208

main69710-12191iMZEA18..D202209-202409

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-12190iMZEA12,ZRE212,ZWE21#201901-202208

main69710-12191iMZEA18..D202209-202409

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-12220iMZEA12,ZRE212,ZWE211201901-202208

main69750-12221iMZEA18..D202209-202409

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-12220iMZEA12,ZRE212,ZWE21#201901-202208

main69750-12221iMZEA18..D202209-202409

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

32 parts on this diagram · 1 diagram in section
