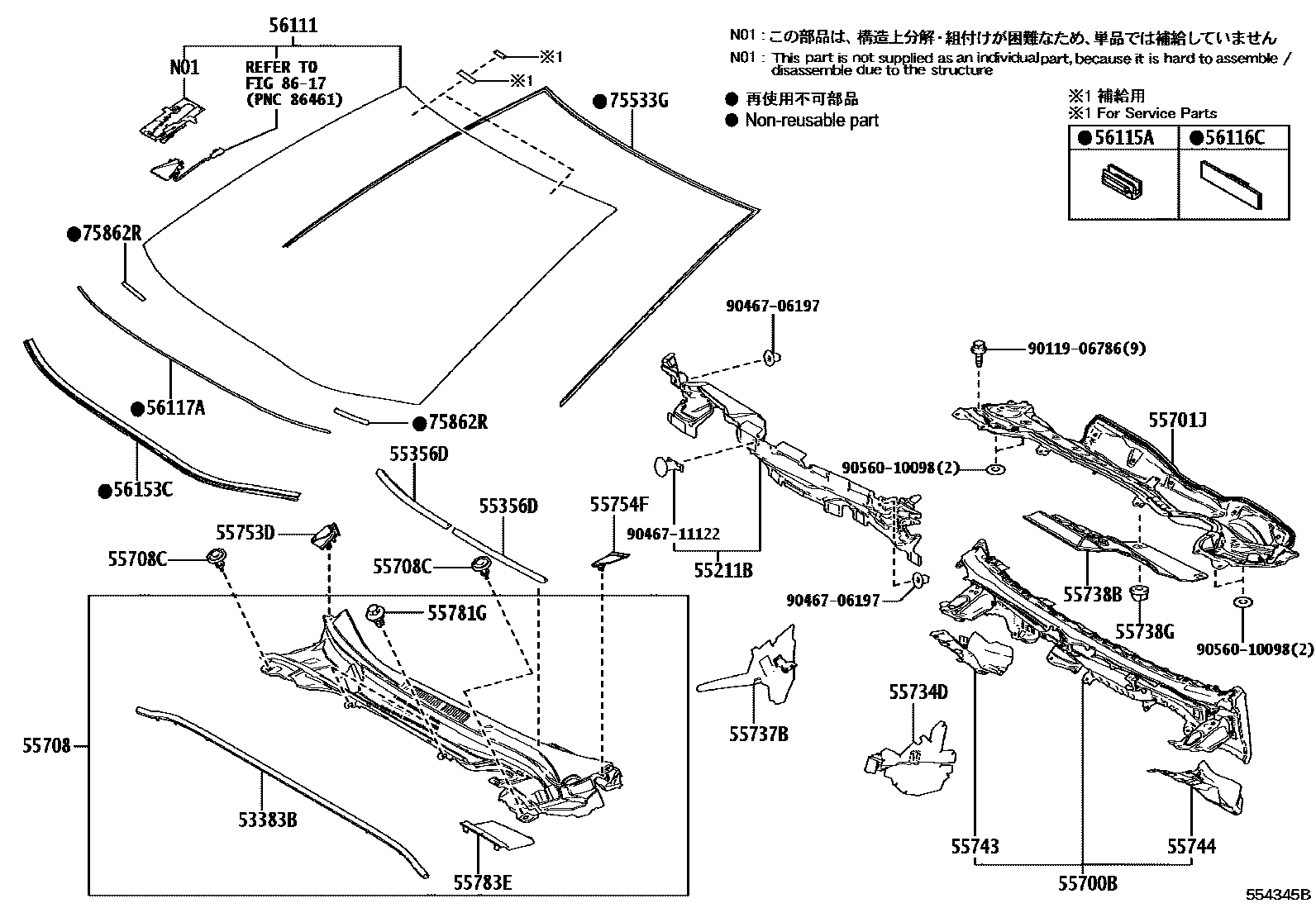

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-12230iMZEA12,ZRE212,ZWE21#¥620201901-202409

55211BSILENCER, FRONT PANEL

main55211-12780iMZEA18..D201901-202409

main55211-12790iMZEA12,ZRE212..X,Y201901-202409

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-12260iMZEA1#,ZWE21#..L,S,X,Y¥540201901-202409

55700BCOWL ASSY

main55700-12C30iMZEA12,ZRE212,ZWE211201901-202409

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-12B90iMZEA12,ZRE212,ZWE21#201901-202409

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12520iMZEA12,ZRE212,ZWE211201901-202208

main55708-12580iMZEA1#,ZWE21#..L,S,X,Y202209-202409

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iMZEA1#,ZWE21#..L,S,X,Y¥120201901-202409

55734DPLATE, WATER GUARD

main55734-12230iMZEA12,ZRE212,ZWE21#201901-202208

main55734-12260iMZEA1#,ZWE21#..L,S,X,Y202209-202409

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-12160iMZEA18..D202209-202409

main55737-12170iMZEA12,ZRE212,ZWE211201901-202208

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55224-12070iMZEA12201901-202409

main55738-12170iMZEA12201901-202201

sub55224-12070

55738GCLIP, FRONT PANEL COVER PROTECTOR

main90467-06206-C0iMZEA12,ZWE21#..X,Y201901-202409

BLACK

55743PANEL, COWL TOP OUTSIDE CORNER, RH

main55743-12080iMZEA1#,ZWE21#..L,S,X,Y201901-202409

55744PANEL, COWL TOP OUTSIDE CORNER, LH

main55744-12080iMZEA12,ZRE212,ZWE211201901-202409

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-12140iMZEA18..D202209-202409

main55753-12150iMZEA12,ZRE212,ZWE21#¥300201901-202208

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-12080iMZEA1#,ZWE21#..L,S,X,Y202209-202409

main55754-12090iMZEA12,ZRE212,ZWE211¥300201901-202208

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224iMZEA12,ZRE212,ZWE211¥100201901-202409

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-12340iMZEA1#,ZWE21#..L,S,X,Y201901-202409

56111GLASS, WINDSHIELD

main56101-12908iZWE211..CND201901-202005

sub56101-12939

main56101-12909iMZEA12,ZRE212,ZWE213..USA¥99,000201901-202208

main56101-12939iZWE21#..CND202006-202203

sub56101-1A922

main56101-1A900iZWE21#..CND¥113,000202209-202409

main56101-1A901iMZEA1#,ZWE21#..(L,S,X,Y)..USA¥92,400202209-202409

main56101-1A922iZWE21#..CND202204-202208

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMZEA1#,ZWE21#..L,S,X,Y¥130201901-202409

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMZEA1#,ZWE21#..L,S,X,Y¥120201901-202409

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iMZEA1#,ZWE21#..L,S,X,Y¥1,480201901-202409

*D,L=1298 OR 725

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-12010iMZEA12,ZRE212,ZWE211¥5,300201901-202001

sub56153-12030¥4,760

main56153-12030iMZEA12,ZRE212,ZWE211¥4,760202002-202208

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-12710iMZEA1#,ZWE21#..L,S,X,Y¥1,830201901-202409

75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-24030iMZEA1#,ZWE21#..L,S,X,Y¥430201901-202409

8617

9011906786

main90119-06786¥90

9046706197

main90467-06197¥120

9046711122

main90467-11122¥100

9056010098

main90560-10098¥160

29 parts on this diagram · 2 diagrams in section
