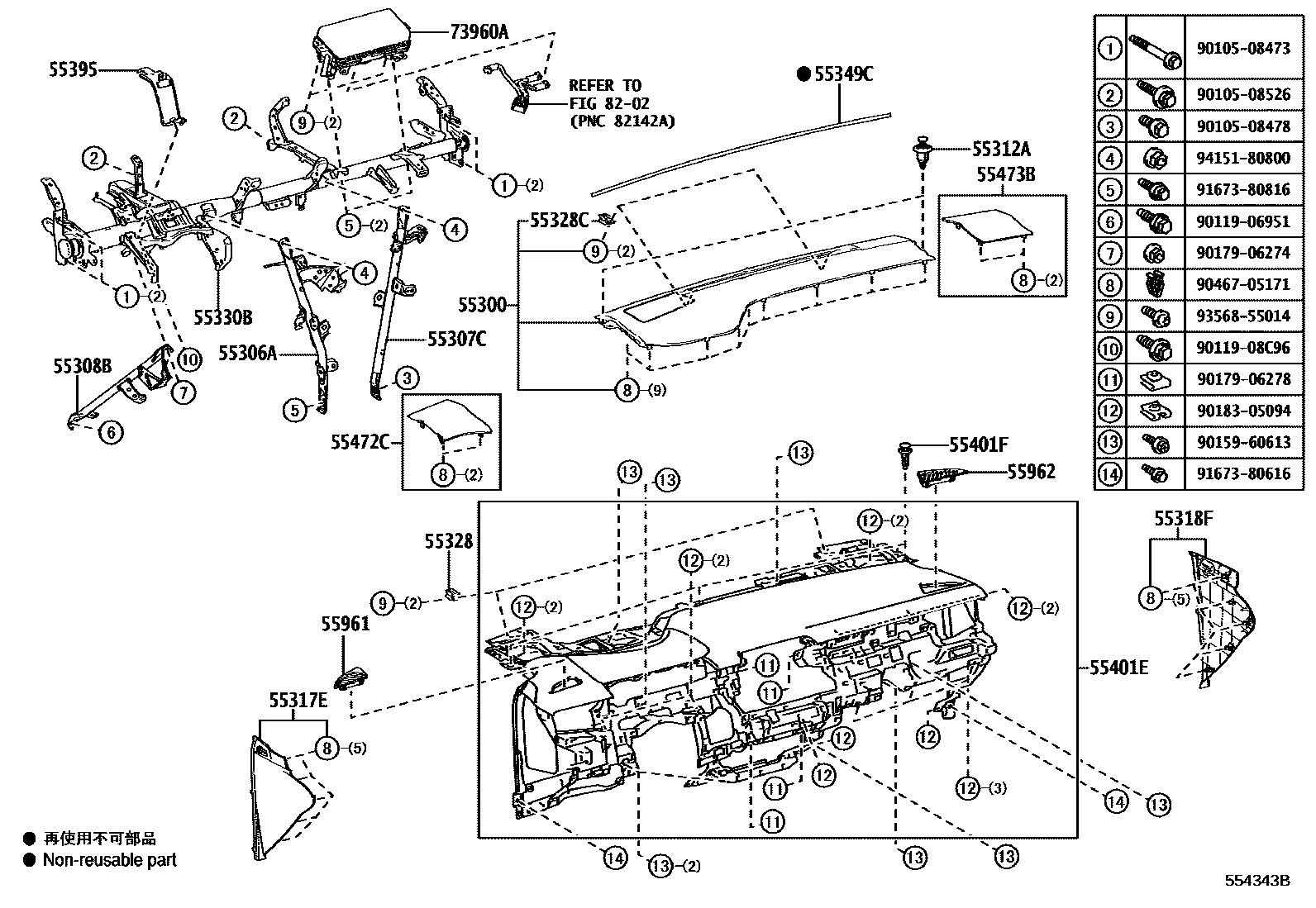

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1CENTER 0005 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-12040-C0iMZEA12,ZRE212..D,S201901-202004

BLACK,TRIM0#,1#,2#

main55300-12041-C0iMZEA12,ZWE21#..S,Y202409

BLACK,TRIM0#,1#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12510iMZEA12,ZRE212,ZWE21#202004-202208

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12410iMZEA18..D202209

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-12320iMZEA1#,ZWE21#..L,S,X,Y202409

55312ACLIP, INSTRUMENT PANEL

main90467-07217×2iMZEA1#,ZWE21#..L,S,X,Y202409

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-12230-C0iZRE212..D202004-202208

BLACK,TRIM0#,1#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-12170-C0iMZEA12,ZWE21#..S,Y202409

BLACK,TRIM0#,1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iMZEA12,ZRE212,ZWE21#202004-202208

main55328-60090×2iMZEA12,ZRE212,ZWE211201901-202004

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-12420×2iMZEA12,ZRE212,ZWE211201901-202004

main55328-12440×2iMZEA1#,ZWE21#..L,S,X,Y202409

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12840iMZEA12,ZRE212..6F201901-201912

main55330-12841iMZEA12,ZRE212..6F202004-202208

main55330-12850iMZEA12,ZRE212,ZWE211..CVT201901-201912

main55330-12851iMZEA12,ZRE212,ZWE21#..CVT202004-202208

55349CCUSHION, INSTRUMENT PANEL

main55349-12190iMZEA12,ZRE212,ZWE21#202004-202208

main55349-12200iMZEA1#,ZWE21#..L,S,X,Y202409

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iMZEA12,ZRE212,ZWE21#202004-202208

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-12900-C4iMZEA12,ZWE21#..S,Y202209-202409

BLACK,TRIM0#,1#,2#

main55400-12901-C5iZRE212..X202004-202106

SEAT COVER MATERIAL-LEATHER,BLACK/SHELL,TRIM0#,2#

main55400-12901-C6supersedes 55400-12900-C4iMZEA12..S201901-202004

BLACK/BLUE,TRIM2#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×3iMZEA1#,ZWE21#..L,S,X,Y202409

sub52161-0K040

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-12100-C0iMZEA12,ZRE212..D,S201901-202004

BLACK,TRIM0#,1#,2#

main55472-12110-C0supersedes 55472-12100-C0iZWE219..X202409

AUDIO-ENTRY 10.5INCH JBL,BLACK,TRIM0#,2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-12080-C0iMZEA18,ZWE21#..L..USA202409

BLACK,TRIM0#,1#,2#

main55473-12090-C0supersedes 55473-12080-C0iZWE219..X202409

AUDIO-ENTRY 10.5INCH JBL,BLACK,TRIM0#,2#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12250-C0iMZEA12,ZWE21#..S,Y202409

BLACK,TRIM0#,1#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12220-C0iZRE212..D202004-202208

BLACK,TRIM0#,1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12240iMZEA1#,ZWE21#..L,S,X,Y202409

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C96

main90119-08C96

9015960613

main90159-60613

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

34 parts on this diagram · 5 diagrams in section
