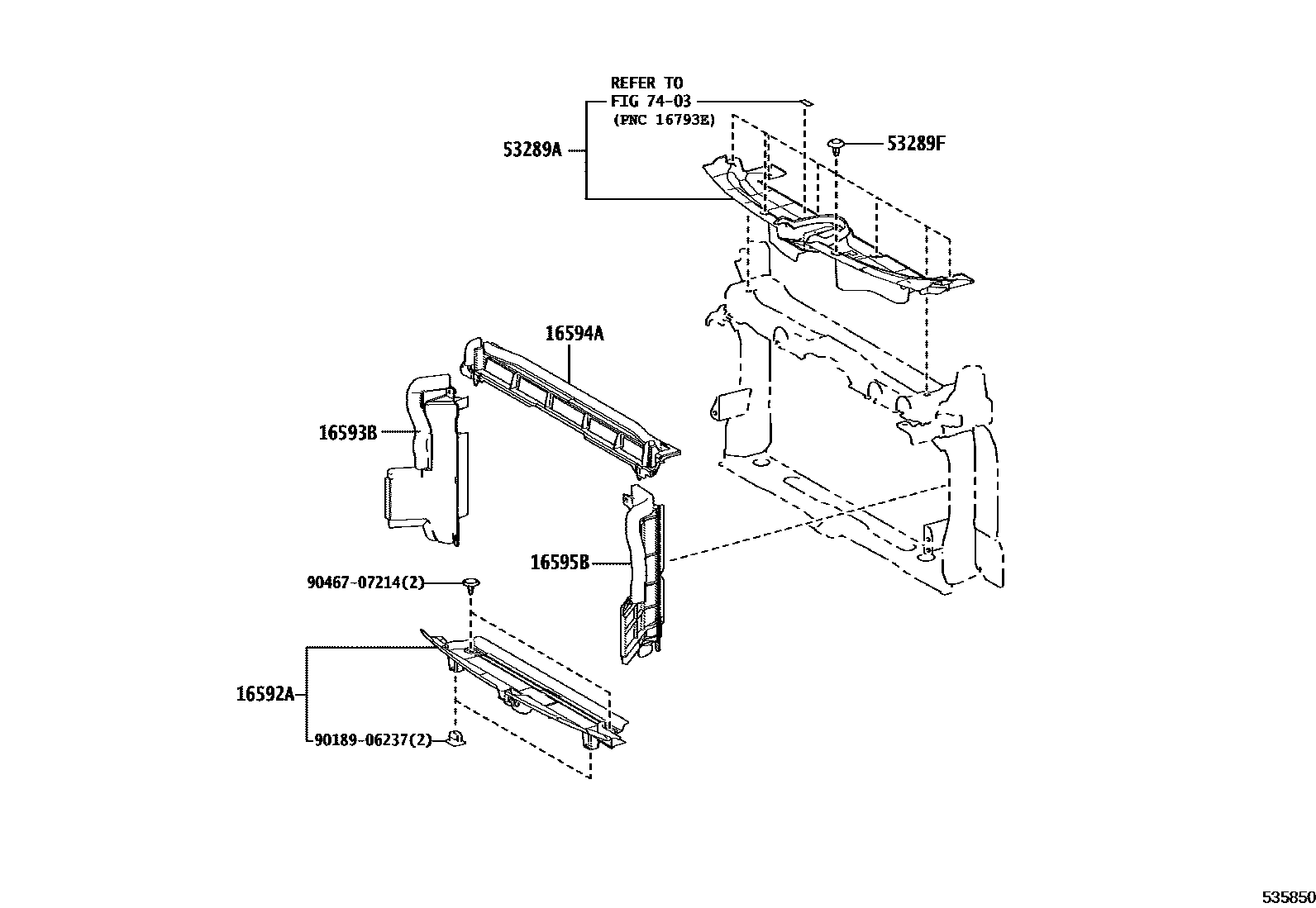

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE & RADIATOR SUPPORT 0002 1AIR GUIDE & RADIATOR SUPPORT 0003 1AIR GUIDE & RADIATOR SUPPORT 0004 1AIR GUIDE & RADIATOR SUPPORT 0005 1RADIATOR SUPPORT & FENDER APR0006 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-24010iM20AFKS,2ZRFXE..MZEA12,ZWE211201901-202001

main16592-24050iM20AFKS,2ZRFXE..MZEA1#,ZWE21#..L,S,X,Y202409

main16592-37070i2ZRFAE..ZRE212201901-202004

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24020iM20AFKS..MZEA12202004-202208

main16593-37130i2ZRFAE..ZRE212201901-202004

main16593-37150i2ZRFXE..ZWE21#202004-202208

main16593-37300i2ZRFXE..ZWE219202209-202409

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24010iM20AFKS..MZEA12202004-202208

main16594-24040iM20AFKS,2ZRFXE..MZEA1#,ZWE21#..L,S,X,Y202409

main16594-37010i2ZRFXE..ZWE211201901-202004

main16594-37040i2ZRFAE..ZRE212202004-202208

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24020iM20AFKS..MZEA18..D202209

main16595-37130i2ZRFAE..ZRE212202004-202208

main16595-37160i2ZRFXE..ZWE21#202004-202208

main16595-37280i2ZRFXE..ZWE219202209-202409

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-12080iZWE21#202004-202208

main53289-12120iZWE21#202209-202409

main53289-12130iMZEA18..D202209

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214×7iZWE21#202107-202208

TMC(TSUTSUMI)

main90467-07217×8iZWE21#202004-202107

7403

9018906237

main90189-06237

9046707214

main90467-07214

9 parts on this diagram · 6 diagrams in section
