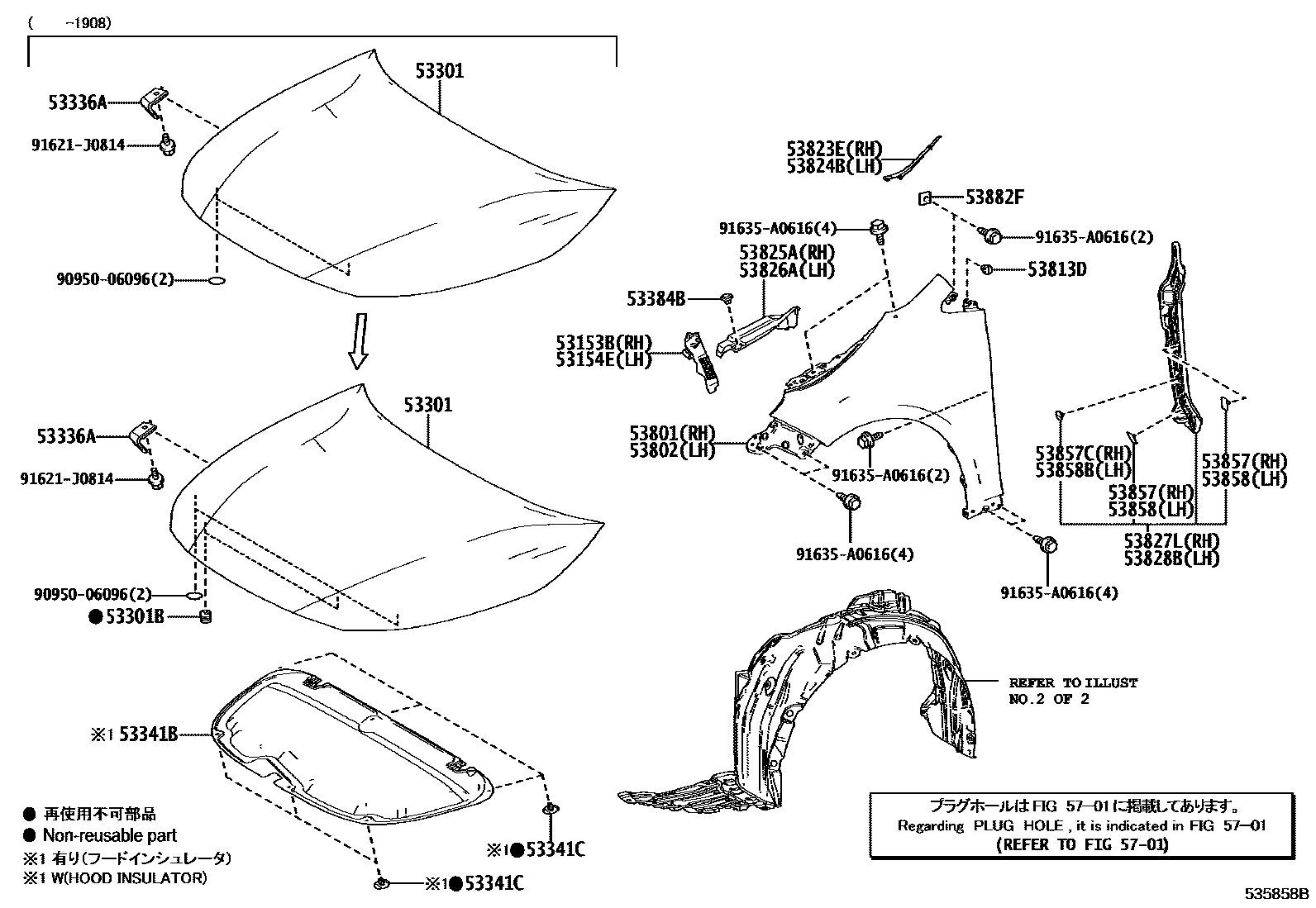

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-12040iMZEA12,ZRE212,ZWE211201901-202409

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-12030iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53301HOOD SUB-ASSY

main53301-12B50iMZEA12,ZRE212,ZWE211201901-201908

main53301-12B70iMZEA1#,ZWE21#..L,S,X,Y201908-202409

53301BCUSHION, HOOD BUMPER

main90541-09117iMZEA1#,ZWE21#..L,S,X,Y201908-202409

53336ABRACKET, HOOD STAY

main53336-12020iMZEA12,ZRE212,ZWE211201901-201908

main53336-12030iMZEA12,ZRE212,ZWE211201908-202409

53341BINSULATOR, HOOD

main53341-12340iMZEA12,ZWE21#..X,Y202004-202409

main53341-12340iMZEA12,ZRE212..X,Y201907-202004

VFM PACKAGE

main53341-12380iMZEA12,ZRE212..X,Y201901-201907

VFM PACKAGE

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZRE212..X201901-202004

VFM PACKAGE

main90467-09050iMZEA12,ZRE212..X,Y202004-202409

53384BCUSHION, HOOD, CENTER

main53384-78010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53801FENDER SUB-ASSY, FRONT RH

main53801-12B10iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53802FENDER SUB-ASSY, FRONT LH

main53802-12B10iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53813DEXTENSION, FRONT FENDER

main53813-48011iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12060iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12050iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12100iZWE21#201901-202409

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12080iZWE21#201901-202409

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12150iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12150iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMZEA1#,ZWE21#..L,S,X,Y201901-202409

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iMZEA12,ZRE212,ZWE211201901-202409

53882FSEAL, FRONT FENDER

main53882-33060iMZEA1#,ZWE21#..L,S,X,Y201901-202409

5701

9095006096

main90950-06096

91621J0814

main91621-J0814

91635A0616

main91635-A0616

26 parts on this diagram · 2 diagrams in section
