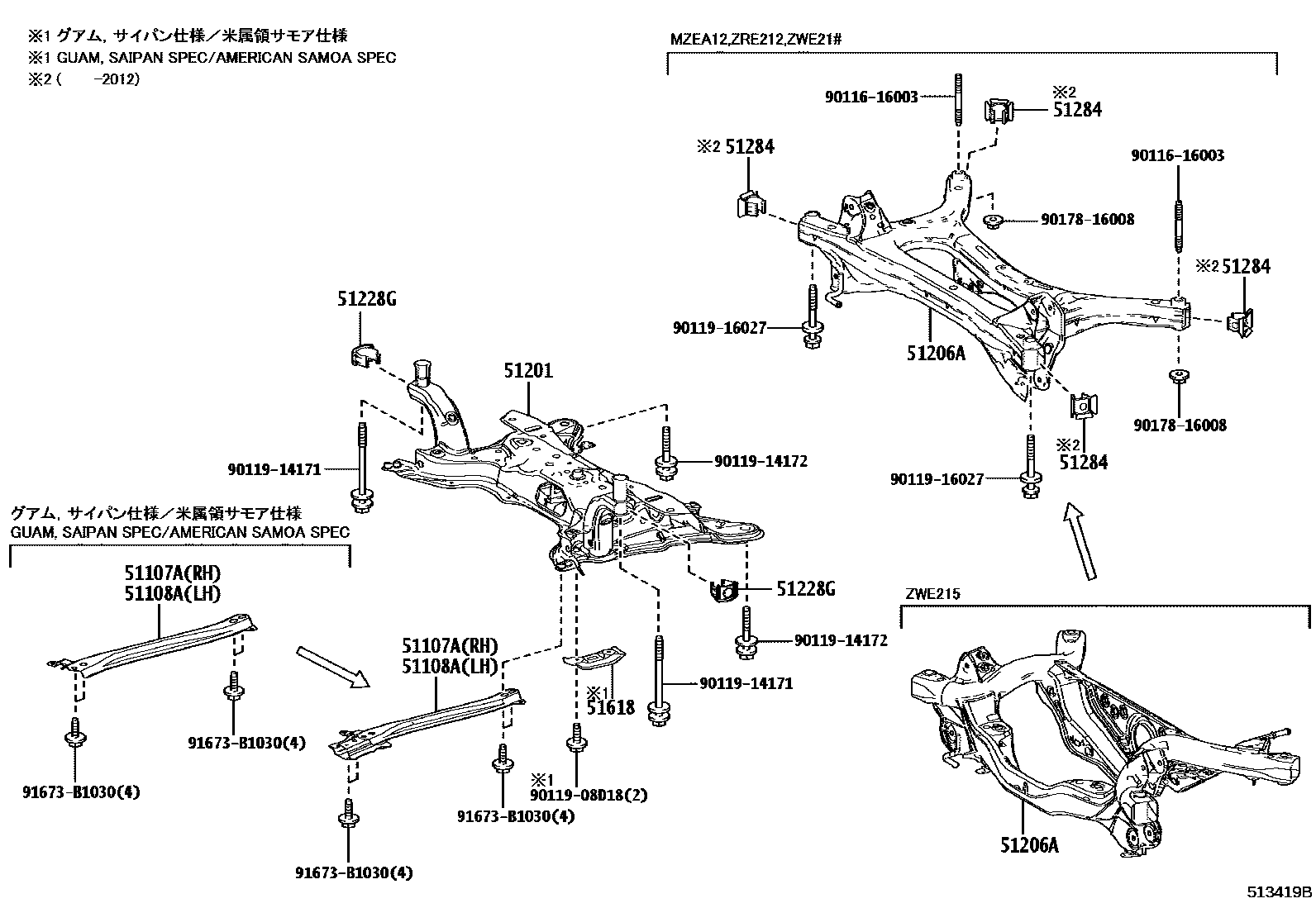

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER 0004 1UNDER COVER 0006 1UNDER COVER 0008 1UNDER COVER 0010 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47010iMZEA12,ZRE212,ZWE211..USA201901-201909

AMERICAN SAMOA SPEC

main51107-47010iMZEA12,ZRE212,ZWE211..USA201901-202409

GUAM,SAIPAN SPEC

main51107-47020iMZEA1#,ZWE21#..L,S,X,Y201901-202409

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47010iMZEA12,ZRE212,ZWE211..USA201901-201909

AMERICAN SAMOA SPEC

main51108-47010iMZEA12,ZRE212,ZWE211..USA201901-202409

GUAM,SAIPAN SPEC

main51108-47020iMZEA12,ZRE212,ZWE21#201901-202409

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47071iMZEA12,ZRE212,ZWE211201901-201902

sub51201-47072

main51201-47072iMZEA1#,ZWE21#..L,S,X,Y201903-202409

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12200iMZEA12,ZRE212,ZWE21#201901-202011

sub51206-12201

main51206-12201iMZEA12,ZWE219202012-202409

main51206-12211iZWE215202209-202409

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iMZEA12,ZRE212,ZWE21#201901-202409

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iMZEA12,ZRE212,ZWE211201901-202012

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010iMZEA1#..L,S201901-202409

GUAM,SAIPAN SPEC

main51618-47010iMZEA12,ZRE212,ZWE211..USA201901-201909

AMERICAN SAMOA SPEC

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

14 parts on this diagram · 6 diagrams in section
