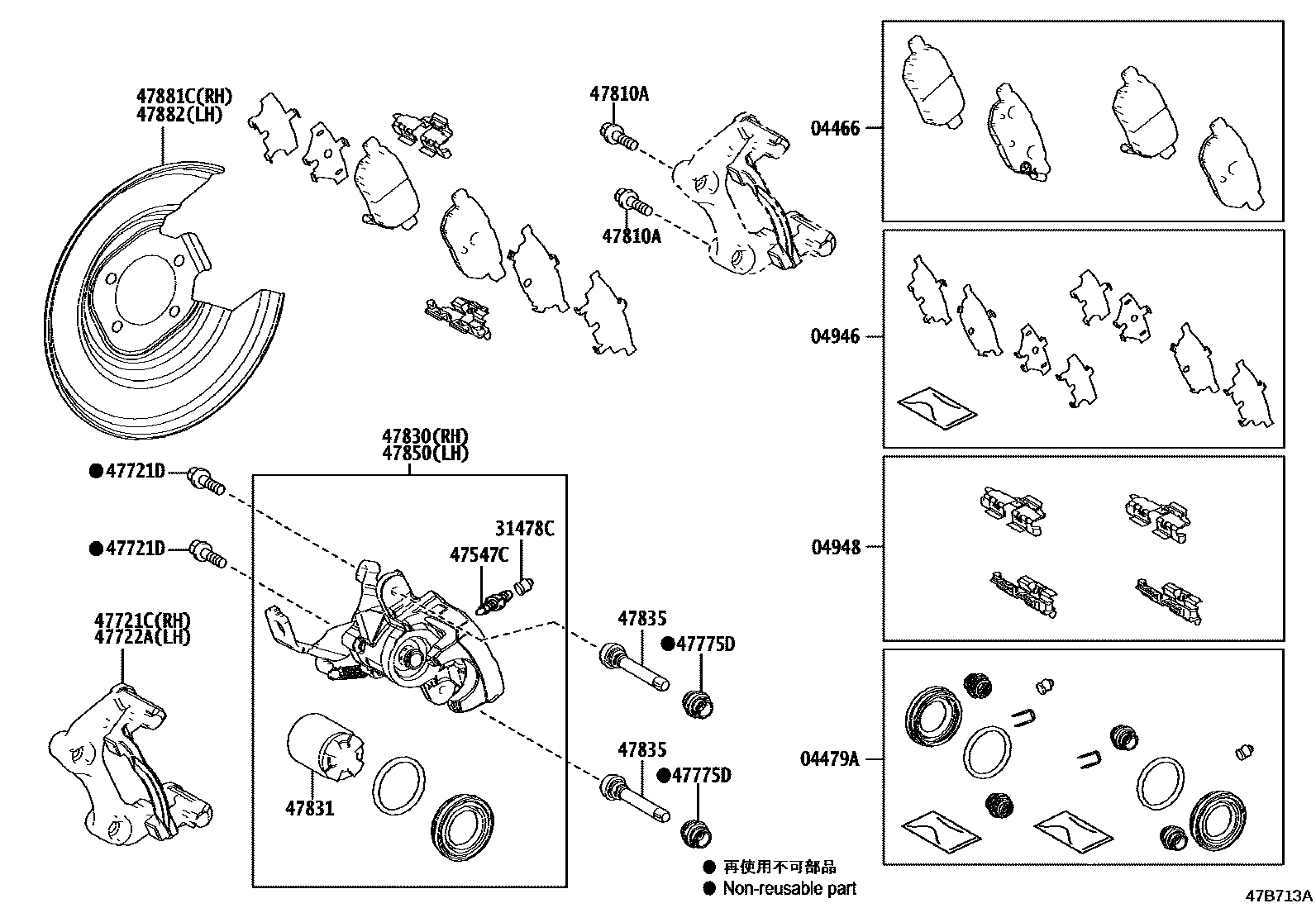

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1ELECTRIC PARKING BRAKE

04466PAD KIT, DISC BRAKE, REAR

main04466-12162iMZEA18..D202209

MARK NBK D6360-FF

main04466-47110iZRE212..6F202004-202208

MARK NBK 478-XW5P,PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-10091iMZEA1#,ZWE21#..L,S,X,Y202409

main04479-12260iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12130iMZEA1#,ZWE21#..L,S,X,Y202409

main04946-47070iZRE212..D,L201901-202004

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iZRE212..D,L201901-202004

main04948-12070iZRE212..CVT..(D,L)201901-201904

PARKING BRAKE-ELECTRIC PARKING BRAKE

main04948-12071iZRE212..CVT..(D,L)201905-202004

PARKING BRAKE-ELECTRIC PARKING BRAKE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZRE212..CVT..(D,L)201901-202004

PARKING BRAKE-ELECTRIC PARKING BRAKE

main31478-52010×2iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iZRE212..CVT;MZEA12,ZWE21#202004-202208

main47847-52050×2iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47110iZRE212..D,L201901-202004

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102×4iZRE212..D,L201901-202004

main90015-AA603×4iZRE212..CVT..(D,L)201901-202004

*8-1.00PX23-12.5

sub90016-AA614

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

main47875-33270×4iZRE212..CVT..(D,L)201901-202004

PARKING BRAKE-ELECTRIC PARKING BRAKE

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMZEA12,ZRE212,ZWE211201901-202004

main90105-12208×4iMZEA18..L202409

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12280iZRE212..CVT;MZEA12,ZWE21#202004-202208

main47830-47111iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47831PISTON, REAR DISC BRAKE

main47831-10030×2iMZEA1#,ZWE21#..L,S,X,Y202409

main47831-52050×2iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150×4iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12280iMZEA1#,ZWE21#..L,S,X,Y202409

main47850-47111iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-12130iMZEA12,ZWE21#202409

main47881-12140iMZEA18..L202409

main47881-47010iZRE212..6F202004-202208

PARKING BRAKE-CENTER LEVER(CHROME PLATING KNOB)

47882COVER, DISC BRAKE DUST, REAR LH

main47882-12130iZRE212..CVT..(D,L)201901-202004

PARKING BRAKE-ELECTRIC PARKING BRAKE

main47882-12140iMZEA18..L202209-202409

main47882-47010iZRE212..D,L201901-202004

17 parts on this diagram · 2 diagrams in section
