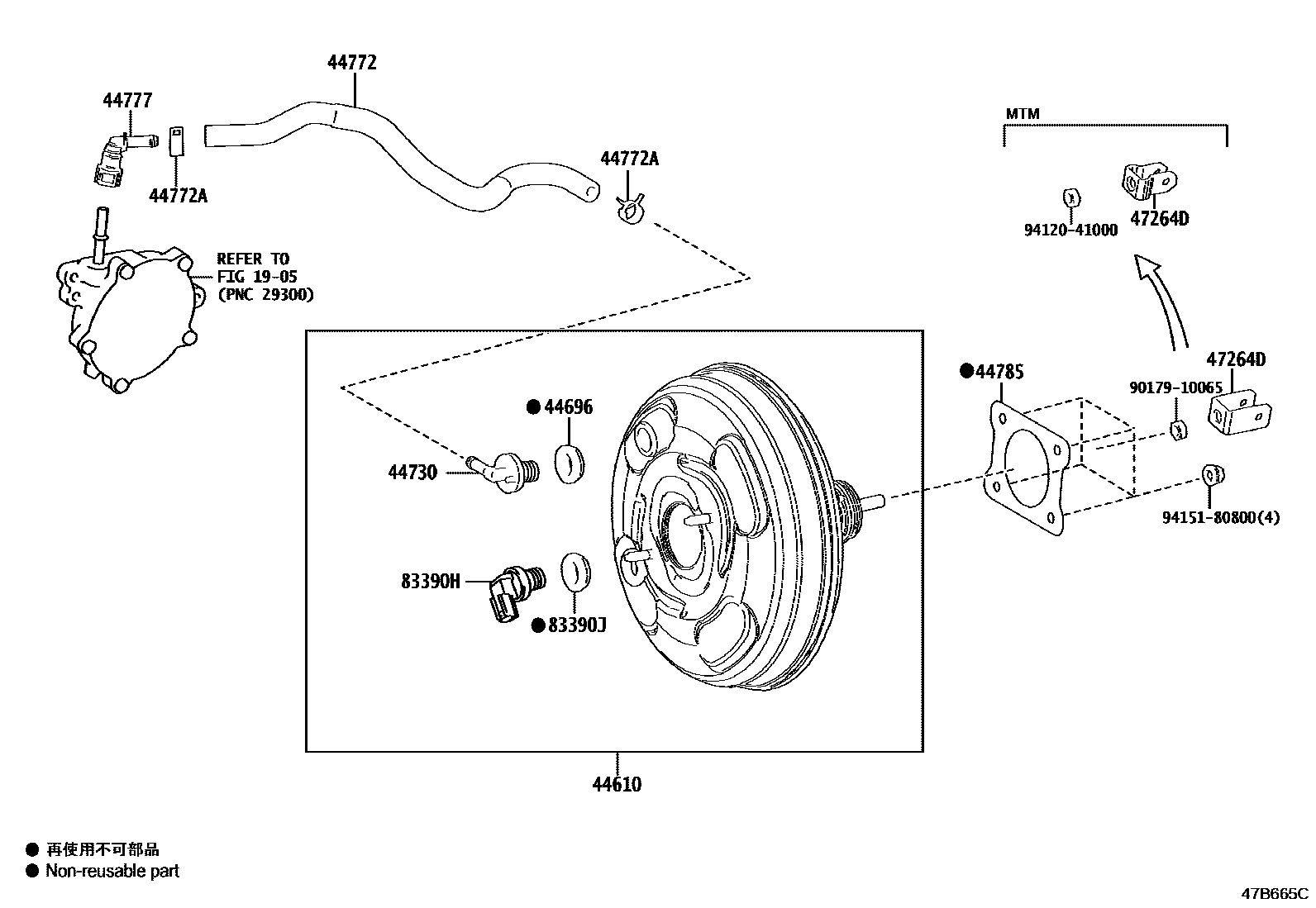

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-12M70iMZEA12,ZRE212201901-202004

44696GROMMET, CHECK VALVE

main90480-24439iMZEA1#..L,S,Y202409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMZEA1#..L,S,Y202209-202409

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12730iZRE212202004-202208

main44772-12780iMZEA12202004-202208

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iMZEA1#..L,S,Y202409

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMZEA1#..L,S,Y202409

44785GASKET, BRAKE BOOSTER

main44785-12040iMZEA12,ZRE212201901-202004

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52060iMZEA18..D202209

main47264-68010iMZEA12,ZRE212..6F201901-202004

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMZEA12,ZRE212201901-202004

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iMZEA1#..L,S,Y202409

9017910065

main90179-10065

9412041000

main94120-41000

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
