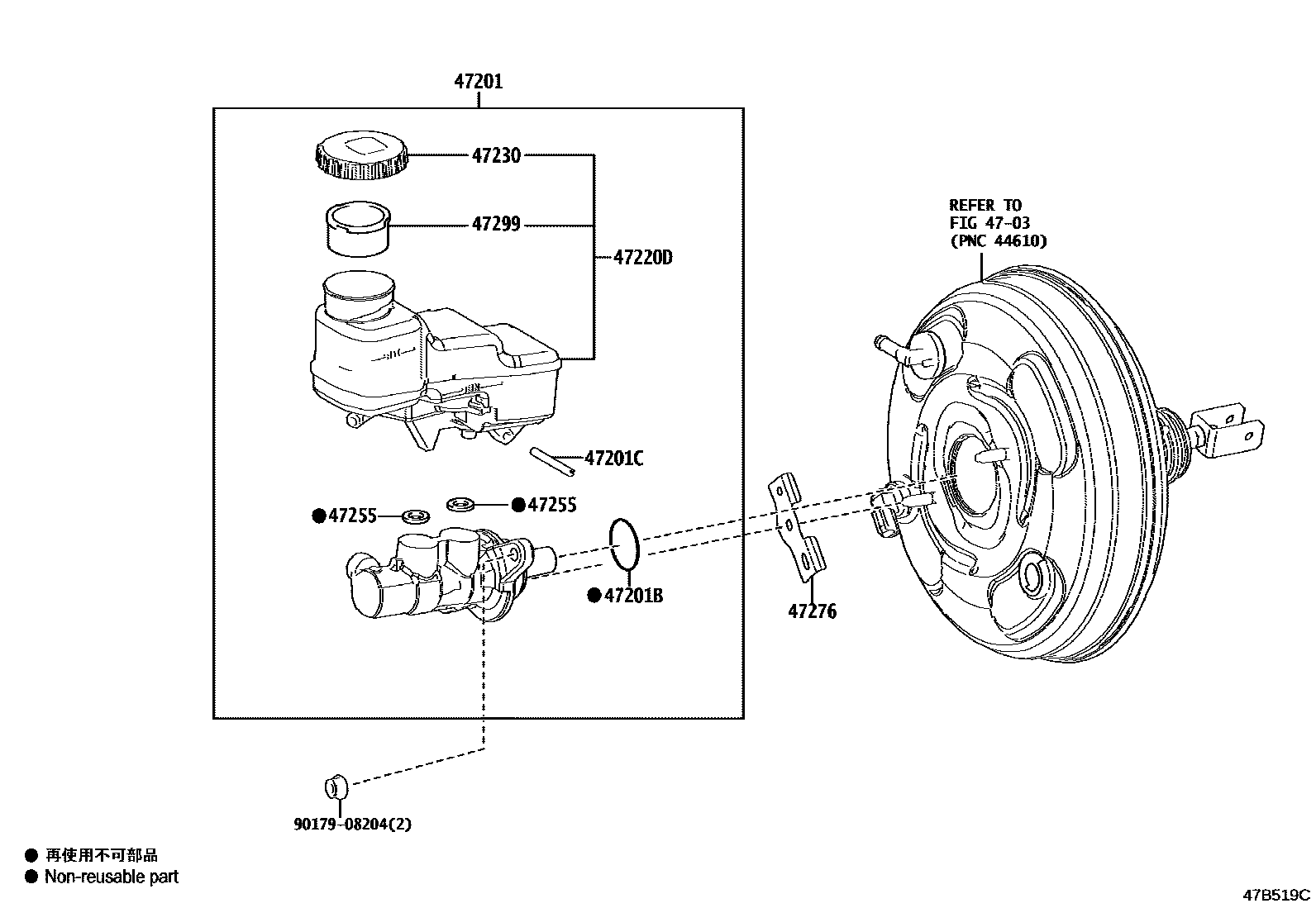

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12C30iMZEA12,ZRE212..CVT201901-202409

main47201-12C40iMZEA12,ZRE212..6F201901-202208

main47201-19105iZWE21#202209-202409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMZEA1#..L,S,Y201901-202409

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMZEA12,ZRE212201901-202409

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12320iMZEA18..D201901-202409

main47220-12330iMZEA12,ZRE212..6F201901-202208

main47220-19025iZWE21#202209-202409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330iZWE21#202002-202006

sub47230-47090

main47230-47090iMZEA18..D201901-202409

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iMZEA12,ZRE212201901-202409

sub90016-AT001

47276BRACKET, BRAKE MASTER CYLINDER

main47276-12050iMZEA18..D201901-202409

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMZEA1#..L,S,Y201901-202409

main47299-52110iZWE21#202209-202409

9017908204

main90179-08204

10 parts on this diagram · 3 diagrams in section
