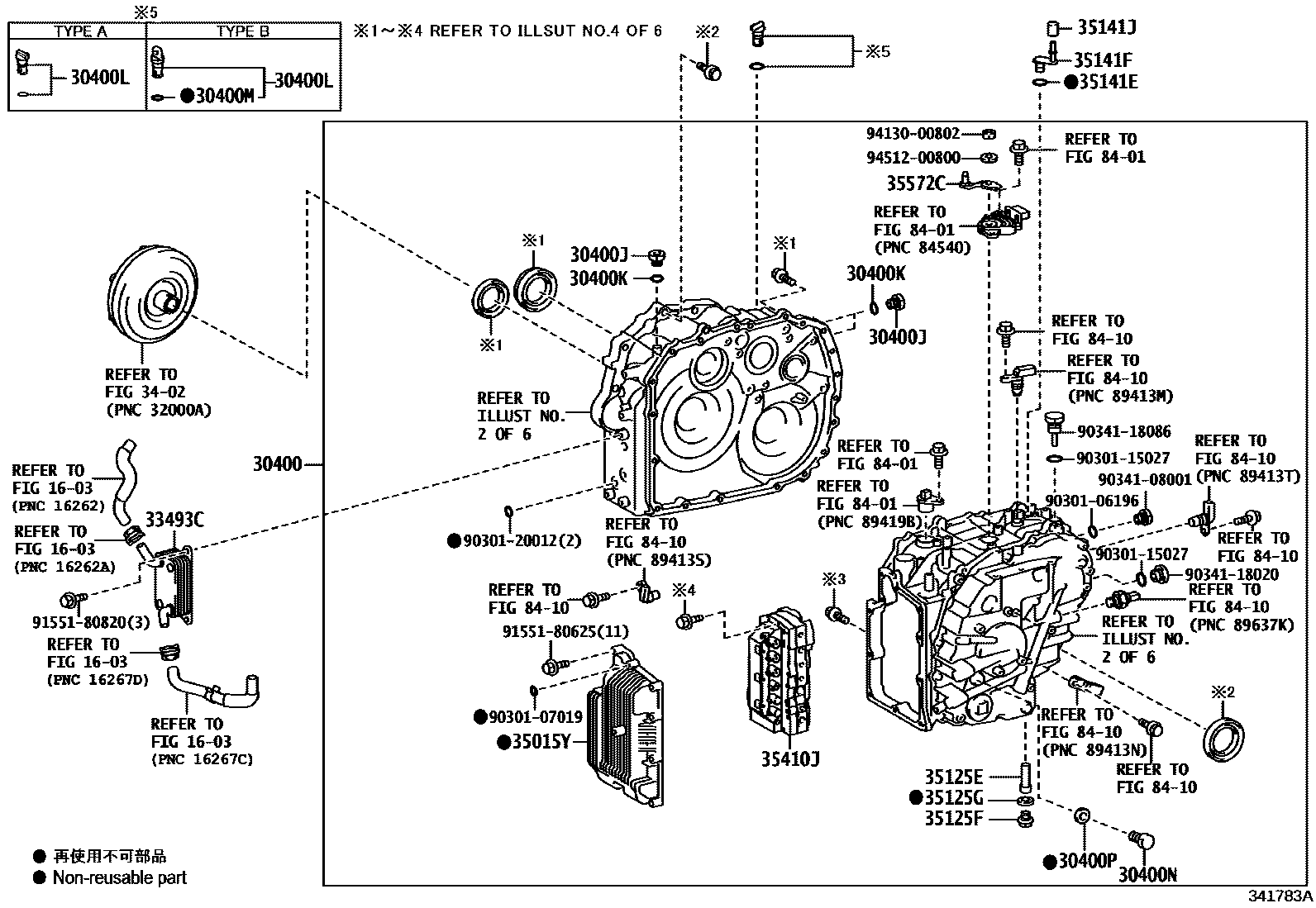

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120 0006 1K120 0007 1K313 0008 1K313 0009 1K313 0010 1K313 0011 1K313 0012 1K121 0013 1K121 0014 1K121 0015 1K121 0016 1K121 0017 1K121

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12510iMZEA12..CVT202106-202308

K120,TMH:REFER TO ILLUST.

main30400-12530iMZEA1#202106-202308

K120,AISIN:REFER TO ILL.

main30400-12540iMZEA1#..L,S,Y202308-202409

K121,TMH:REFER TO ILLUST.

main30400-12540iMZEA1#202303-202308

K121,ENGINE-M20A-FKS (DS20),TMH:REFER TO ILLUST.

main30400-12590iMZEA18..D202308-202409

K121,AISIN:REFER TO ILL.

main30400-12590iMZEA1#202303-202308

K121,ENGINE-M20A-FKS (DS20),AISIN:REFER TO ILL.

main30400-12610iZRE212..CVT201901-202208

K313,TMH:REFER TO ILLUST.

main30400-12670iZRE212..CVT201901-202208

K313,AISIN AW:REF.ILLUST

sub30400-12671

main30400-12740iMZEA12..CVT201901-202106

K120,TMH:REFER TO ILLUST.

main30400-12760iMZEA12..CVT201901-202106

K120,AISIN:REFER TO ILL.

30400JPLUG, TRANSAXLE HOLE

main90341-08001iZRE212..CVT201901-202409

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iZRE212..CVT201901-202409

30400LPLUG , FILLER(CVT)

main35150-44010iMZEA1#..L,S,Y202209-202409

main35150-44010iMZEA12..CVT201901-202208

TYPE A:REFER ILLUST.

main35150-48010iMZEA12..CVT201901-202208

TYPE B:REFER ILLUST.

main90341-12025iZRE212..CVT201901-202208

30400MGASKET, FILLER PLUG(CVT)

main90301-09173iMZEA12..CVT201901-202409

main90430-12221iZRE212..CVT201901-202208

30400NPLUG, REFILL(CVT)

main90341-18077iMZEA1#..L,S,Y201901-202409

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMZEA12,ZRE212..CVT201901-202409

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZEA1#..L,S,Y201901-202409

main33493-52010iZRE212..CVT201901-202208

AISIN AW:REF.ILLUST

main33493-52040iZRE212..CVT201901-202208

TMH:REFER TO ILLUST.

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMZEA12..CVT201901-202205

TMH:REFER TO ILLUST.

main35015-12020iMZEA12..CVT201901-202205

AISIN:REFER TO ILL.

main35015-33010iMZEA1#202206-202308

AISIN:REFER TO ILL.

main35015-33020iMZEA1#202303-202304

ENGINE-M20A-FKS (DS20),AISIN:REFER TO ILL.

sub35015-42020

main35015-42010iMZEA12..CVT202206-202308

TMH:REFER TO ILLUST.

main35015-42020iMZEA1#..L,S,Y202308-202409

TMH:REFER TO ILLUST.,AISIN:REFER TO ILL.

main35015-42020iMZEA1#..L,S,Y202409

main35015-42020iMZEA1#202303-202308

ENGINE-M20A-FKS (DS20),TMH:REFER TO ILLUST.

main35015-42020iMZEA1#202304-202308

ENGINE-M20A-FKS (DS20),AISIN:REFER TO ILL.

35125ETUBE, OVERFLOW(CVT)

main35125-12440iZRE212..CVT201901-202208

TMH:REFER TO ILLUST.

main35125-12480iZRE212..CVT201901-202208

AISIN AW:REF.ILLUST

main35125-12500iMZEA1#..L,S,Y201901-202409

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE212..CVT201901-202208

main90341-18016iMZEA1#..L,S,Y201901-202409

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE212..CVT201901-202208

main90430-18008iMZEA12..CVT201901-202409

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iZRE212..CVT201901-202208

main90301-09173iMZEA1#..L,S,Y201901-202409

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iZRE212..CVT201901-202208

main90930-03240iMZEA12..CVT201901-202409

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iZRE212..CVT201901-202208

main90930-03243iMZEA1#..L,S,Y201901-202409

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12862iZRE212..CVT201901-202208

AISIN AW:REF.ILLUST

main35410-12871iZRE212..CVT201901-202208

TMH:REFER TO ILLUST.

main35410-12880iMZEA12..CVT201901-202005

TMH:REFER TO ILLUST.

sub35410-12881

main35410-12881iMZEA1#202006-202308

TMH:REFER TO ILLUST.

main35410-12A30iMZEA12..CVT201901-202004

AISIN:REFER TO ILL.

sub35410-K0010

main35410-12A80iMZEA1#202303-202308

ENGINE-M20A-FKS (DS20),AISIN:REFER TO ILL.

main35410-12A80iMZEA18..D202308-202409

AISIN:REFER TO ILL.

main35410-42080iMZEA1#..L,S,Y202308-202409

TMH:REFER TO ILLUST.

main35410-42080iMZEA1#202303-202308

ENGINE-M20A-FKS (DS20),TMH:REFER TO ILLUST.

main35410-52290iMZEA1#202004-202308

AISIN:REFER TO ILL.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZRE212..CVT201901-202208

TMH:REFER TO ILLUST.

main35572-12170iZRE212..CVT202004-202208

main35572-12170iZRE212..CVT201901-202004

AISIN AW:REF.ILLUST

main35572-12190iMZEA1#..L,S,Y201901-202409

8401

8410

9030106196

main90301-06196

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034108001

main90341-08001

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 17 diagrams in section
