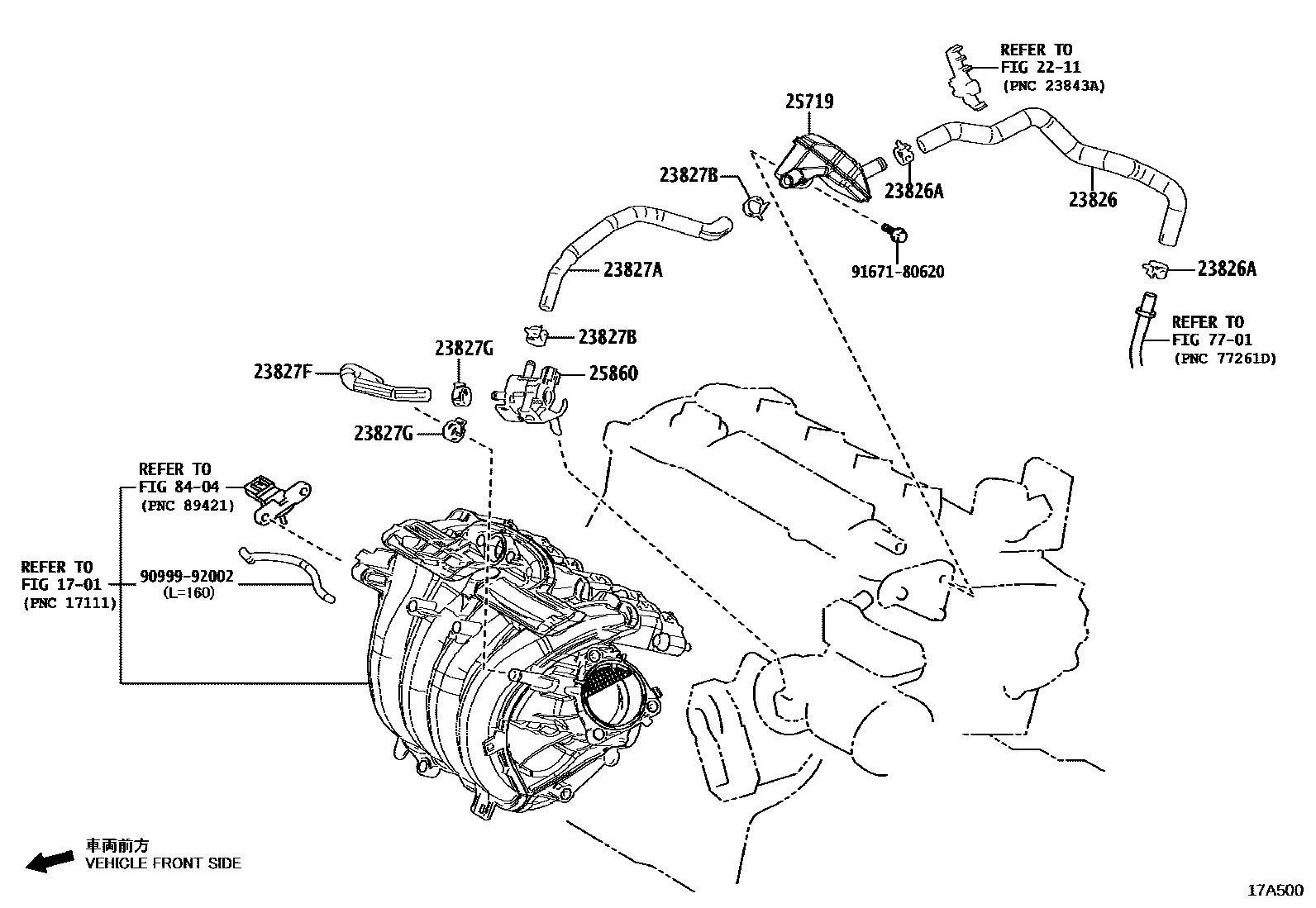

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24030iM20AFKS..MZEA1#..L,S,Y202209-202409

main23826-37250i2ZRFXE..ZWE21#202409-202411

main23826-37340i2ZRFXE..ZWE21#202411

main23826-37350i2ZRFAE..ZRE212202004-202208

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96136-41901×2iM20AFKS..MZEA1#..L,S,Y202409

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-24070iM20AFKS..MZEA1#..L,S,Y202209-202409

main23827-37070i2ZRFXE..ZWE21#202004-202208

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96136-41901×2iM20AFKS..MZEA1#..L,S,Y202409

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-24080iM20AFKS..MZEA1#..L,S,Y202409

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main96136-41901×2iM20AFKS..MZEA1#..L,S,Y202409

25719TANK, VACUUM SURGE

main25719-24020iM20AFKS..MZEA1#..L,S,Y202409

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24040iM20AFKS..MZEA1#..L,S,Y202409

7701

8404

9099992002

main90999-92002

9167180620

main91671-80620

14 parts on this diagram · 4 diagrams in section
