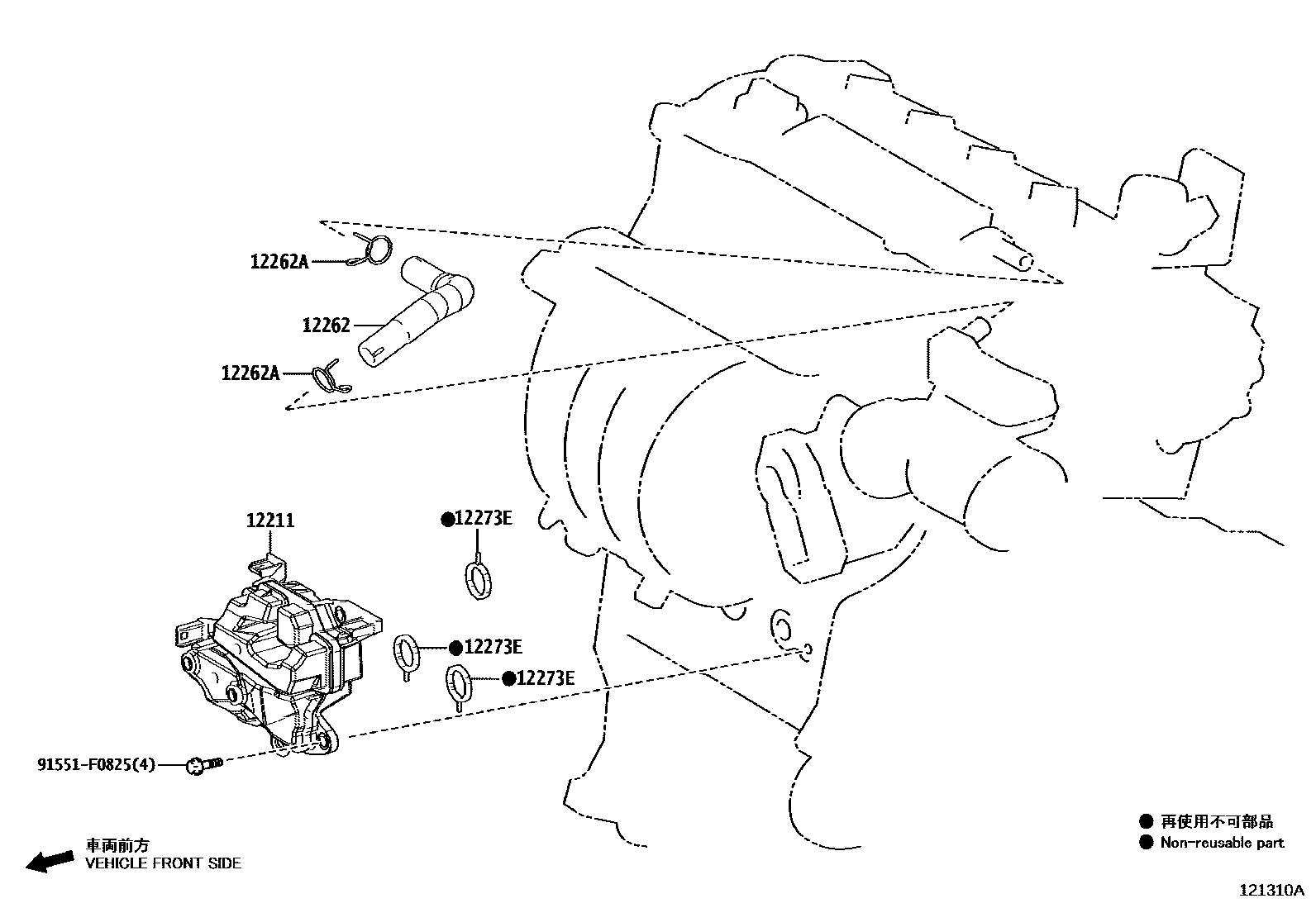

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-24010iM20AFKS..MZEA12201901-202208

main12211-24020iM20AFKS..MZEA1#202209-202311

main12211-37010i2ZR#..ZRE212,ZWE211201901-202409

12262HOSE, VENTILATION, NO.2

main12262-24020iM20AFKS..MZEA18..D201901-202409

main12262-37020i2ZRFAE..ZRE212201901-202208

main12262-37060i2ZRFXE..ZWE211201901-202411

main12262-37110i2ZRFXE..ZWE21#202411

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE..ZWE21#201901-202409

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iM20AFKS..MZEA12201901-202311

91551F0825

main91551-F0825

5 parts on this diagram · 3 diagrams in section
