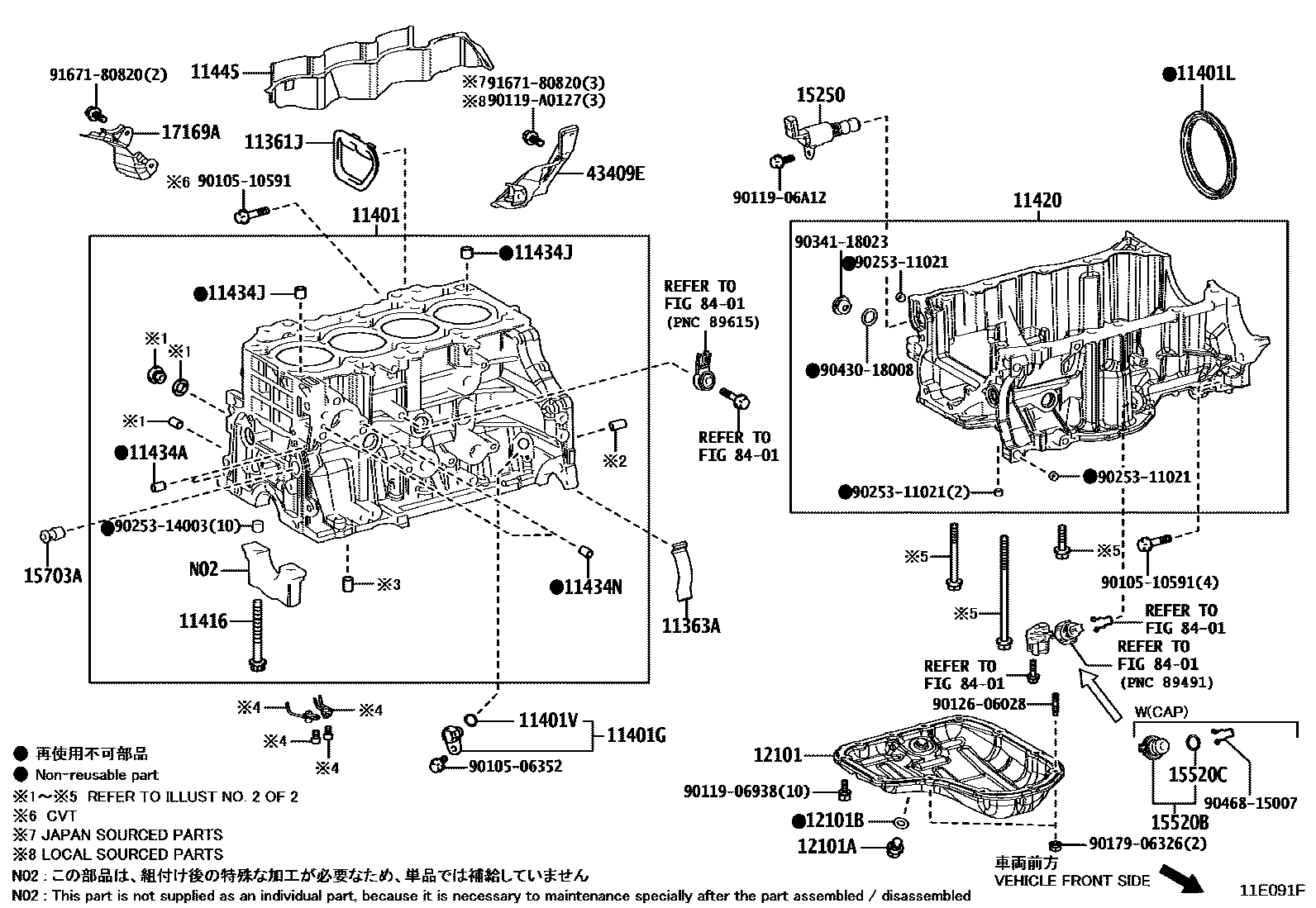

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i2ZR#..ZRE212,ZWE211201901-202208

main11361-25010iM20AFKS..MZEA18..D201901-202409

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010iM20AFKS..MZEA12201901-202409

11401BLOCK SUB-ASSY, CYLINDER

main11410-09456i2ZRFAE..ZRE212202004-202208

(L)

main11410-29485iM20AFKS..MZEA12201901-202004

sub11410-29486

main11410-29665iM20AFKS..MZEA1#202004-202311

main11410-29735iM20AFKS..MZEA18..D202311-202409

main11410-39226i2ZRFXE..ZWE21#201901-202110

sub11410-39295

sub16278-37021

sub16281-37071

sub16281-37190

sub16295-37021

sub25601-37050

sub25601-37060

main11410-39245i2ZRFAE..ZRE212202004-202208

(J)

sub11410-39246

main11410-39245i2ZRFAE..ZRE212201901-202004

sub11410-39246

main11410-39295i2ZRFXE..ZWE21#202110-202303

sub11410-39296

main11410-39296i2ZRFXE..ZWE21#202303-202409

main11410-39305i2ZRFXE..ZWE21#202409

11401GSENSOR, CRANK POSITION

main90919-05070i2ZR#..ZRE212,ZWE21#201901-202208

main90919-05091i2ZRFXE..ZWE21#202209-202409

main90919-05094iM20AFKS..MZEA18..D202209-202409

main90919-05095iM20AFKS..MZEA12201901-202208

11401LSEAL, ENGINE REAR OIL

main90311-78008i2ZR#..ZRE212,ZWE211201901-202409

main90311-90010iM20AFKS..MZEA12201901-202409

11401VO-RING, CRANK POSITION SENSOR

main90301-11039iM20AFKS..MZEA1#..L,S,Y201901-202409

main90301-14016i2ZR#..ZRE212,ZWE211201901-202208

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02163i2ZR#..ZRE212,ZWE21#201901-202409

main90910-02197iM20AFKS..MZEA1#..L,S,Y201901-202409

11420CRANKCASE ASSY, STIFFENING

main11420-24010iM20AFKS..MZEA12201901-202409

main11420-37010i2ZRFAE..ZRE212201901-202208

main11420-37030i2ZRFXE..ZWE21#201901-202111

sub11420-37040

main11420-37040i2ZRFXE..ZWE21#202003-202409

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2ZR#..ZRE212,ZWE21#201901-202409

L=12,OD=4.0

main90250-06003iM20AFKS..MZEA18..D201901-202409

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13001i2ZRFXE..ZWE21#201901-202409

main90253-13017iM20AFKS..MZEA12201901-202409

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003iM20AFKS..MZEA18..D201901-202409

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-24010iM20AFKS..MZEA18..D201901-202409

main11445-37010i2ZRFXE..ZWE21#201901-202409

12101PAN SUB-ASSY, OIL

main12102-24010iM20AFKS..MZEA1#..L,S,Y201901-202409

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iM20AFKS..MZEA1#..L,S,Y201901-202409

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031iM20AFKS..MZEA1#..L,S,Y201901-202409

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010iM20AFKS..MZEA1#..L,S,Y201901-202409

15520BCAP ASSY, CRANKCASE

main15520-25010iM20AFKS..MZEA1#..L,S,Y202308-202409

15520CRING, O (FOR CRANKCASE CAP)

main96743-24016iM20AFKS..MZEA1#..L,S,Y202308-202409

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011iM20AFKS..MZEA1#..L,S,Y201901-202409

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-24010iM20AFKS..MZEA18..D201901-202409

43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-12100iMZEA12201901-201903

main43409-12101iMZEA12201904-202001

main43498-12120iMZEA12202002-202203

sub43498-12121

main43498-12121iMZEA1#..L,S,Y202204-202409

8401

9010506352

main90105-06352

9010510591

main90105-10591

9011906938

main90119-06938

9011906A12

main90119-06A12

90119A0127

main90119-A0127

9012606028

main90126-06028

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9034118023

main90341-18023

9043018008

main90430-18008

9046815007

main90468-15007

9167180820

main91671-80820

35 parts on this diagram · 5 diagrams in section
